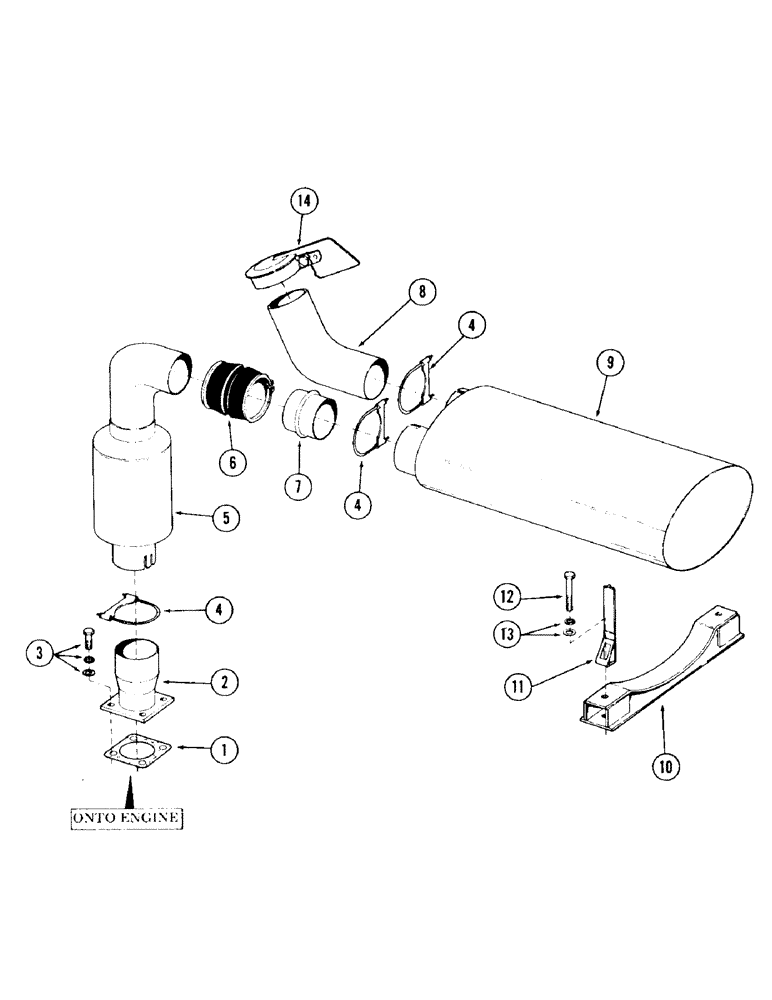

Запчасти Case 120 (035) - MUFFLER AND ATTACHING PARTS WITH SPARK ARRESTOR, USED ON UNITS WITH SERIAL NO. 6287198 AND AFTER (10) - ENGINE

1

S223138

GASKET, exhaust

2шт.

2

S228669

ADAPTER, flanged

2шт.

3

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

8шт.

S4399

WASHER

lock - 1/2"

8шт.

S7392

WASHER

flat - 1/2"

8шт.

4

S105030

CLAMP, exhaust pipe

6шт.

5

S228673

MUFFLER

ARRESTOR, spark

2шт.

6

S226746

CONNECTOR, flexible

2шт.

7

S99845

CONNECTOR

2шт.

8

S99848

PIPE, exhaust

2шт.

9

S228668

MUFFLER

2шт.

10

S223121

BRACKET, muffler mounting

4шт.

11

S96177

STRAP

muffler hold down

4шт.

12

S2475

BOLT

CPSW - 1/2" NC x 3-1/2" gr 5

8шт.

13

S4399

WASHER

lock - 1/2"

8шт.

S86132

WASHER

flat - 1/2"

8шт.

14

S107833

CAP

rain

2шт.
