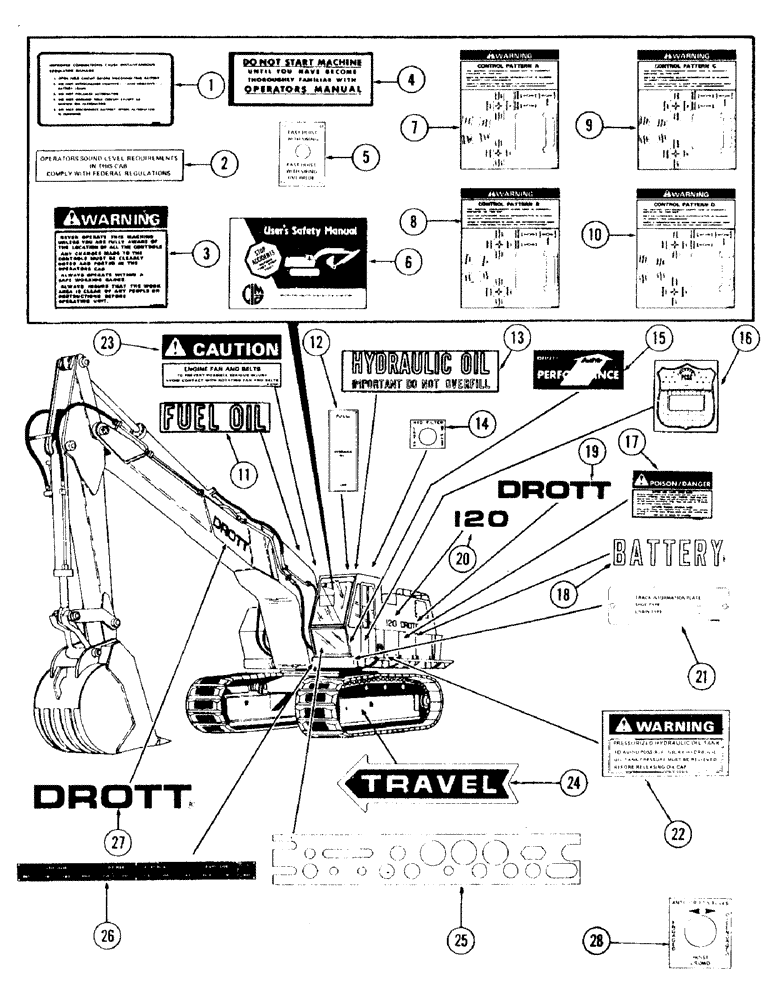

Запчасти Case 120 (295) - GRAPHIC PRODUCTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S205825

DECAL

battery

1шт.

2

S95214

DECAL, sound level requirement

1шт.

3

S229054

DECAL

operator warning

1шт.

4

S86264

DECAL

operator caution

1шт.

5

S105031

PLATE, fast hoist swing override

1шт.

6

S406232

HANDBOOK

MANUAL , user's safety - (Supersedes S94087)

1шт.

7

REF

INSTRUCTION

DECAL, control pattern "A" - (See Figure 297)

1шт.

8

REF

INSTRUCTION

DECAL, control pattern "B" - (See Figure 297)

1шт.

9

REF

INSTRUCTION

DECAL, control pattern "C" - (See Figure 297)

1шт.

10

REF

INSTRUCTION

DECAL, control pattern "D" - (See Figure 297)

1шт.

11

S70192

DECAL

fuel oil

1шт.

12

S231295

DECAL, hydraulic oil level - (Supersedes S225945)

1шт.

13

S80209

DECAL

hydraulic oil

1шт.

14

S99816

DECAL, hydraulic filter

1шт.

15

S221202

DECAL

performance

1шт.

16

S89871

DECAL

PCSA

1шт.

17

S105670

DECAL

battery warning

1шт.

18

S29611

DECAL

battery

1шт.

19

S954020

DECAL, Drott - (7 inch high letters) (Used on units with serial number 65521 thru 6287180)

2шт.

20

S954019

DECAL, 120 - (7 inch high letters) (Used on units with serial number 65521 thru 6287180)

2шт.

21

S98969

PLATE

track identification

1шт.

S23395

SCREW

drive

4шт.

22

S234981

DECAL, hydraulic tank pressure warning

1шт.

23

S107837

DECAL

engine fan and belt caution

2шт.

24

S506884

INDICATOR

travel - (Left hand) (Illustrated)

1шт.

S506885

INDICATOR

travel - (Right hand) (Not illustrated)

1шт.

25

S607329

PLATE, instrument panel

1шт.

26

S609169

PLATE, bulkhead connector

1шт.

27

S952325

DECAL

Drott - (8" high letters) - (Used on units with serial number 65521 thru 6287180)

1шт.

28

S112009

DECAL, anti-drift switch

1шт.
