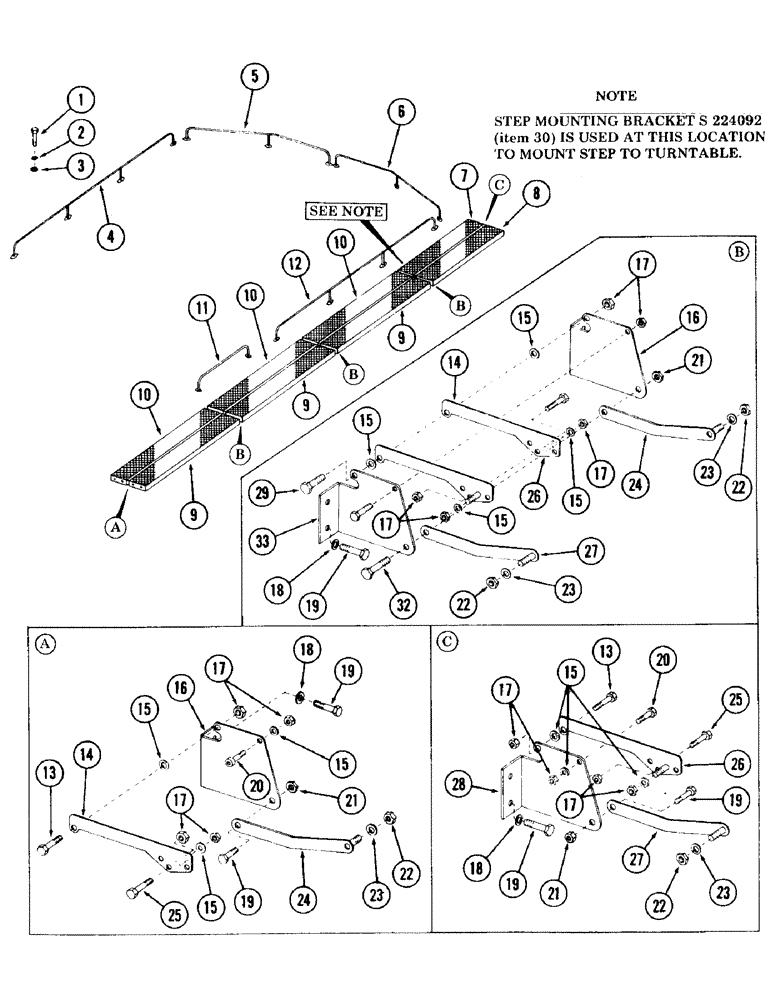

Запчасти Case 120 (095) - OPERATORS ACCESS WALKWAY AND ATTACHING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5 - (Mounts hand, Serial Range: railings-shrouding)

1шт.

2

S4399

WASHER

lock - 1/2"

1шт.

3

S86132

WASHER

flat - 1/2"

1шт.

4

S224989

RAIL, hand - (Right side)

1шт.

5

S224985

RAIL, hand - (Right rear)

1шт.

6

S224987

RAIL, hand - (Left rear)

1шт.

7

S97143

STEP

1шт.

8

S224101

STEP

1шт.

9

S224100

STEP

3шт.

10

S97142

STEP

3шт.

11

S224983

RAIL, hand - (Front left side)

1шт.

12

S224989

RAIL, hand - (Rear left side)

1шт.

13

S2404

BOLT (MACHINE)

CPSW - 3/8" NC x 1-1/2" gr 5 - (Mounts arm to step and bracket)

1шт.

14

S224094

ARM

1шт.

15

S7387

WASHER

flat - 3/8"

1шт.

16

S224090

BRACKET, step mounting

1шт.

17

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

18

S7403

WASHER

flat - 5/8"

1шт.

19

S2504

CPSW - 5/8" NC x 2" gr 5 - (Mounts bracket to turntable and, Serial Range: arm-bracket)

1шт.

20

S3520

CAPSCREW

CPSW - 3/8" NC x 1-1/2" gr 8 - (Socket head) - (Mounts, Serial Range: bracket-step)

1шт.

21

S17171

NUT

self locking - 5/8" NC

3шт.

22

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

23

S7395

WASHER

flat - 1/2"

1шт.

24

S224098

ARM

1шт.

25

S2404

BOLT (MACHINE)

CPSW - 3/8" NC x 1-1/2" gr 5 - (Used to lock walkway in position)

1шт.

26

S224095

ARM

1шт.

27

S224097

ARM

1шт.

28

S224093

BRACKET, step mounting

1шт.

29

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

CPSW - 3/8" NC x 2-3/4" gr 5 - (Mounts brackets and arms together)

1шт.

30

S224090

BRACKET, step mounting

2шт.

S224092

BRACKET, step mounting - (See note on illustration)

1шт.

31

S2409

BOLT

CPSW - 3/8" NC x 2-3/4" gr 5 - (Used to lock walkway in position)

1шт.

32

S2508

BOLT (MACHINE)

CPSW - 5/8" NC x 3" gr 5 - (Mounts, Serial Range: brackets-arms)

3шт.

33

S224089

BRACKET, step mounting

3шт.
