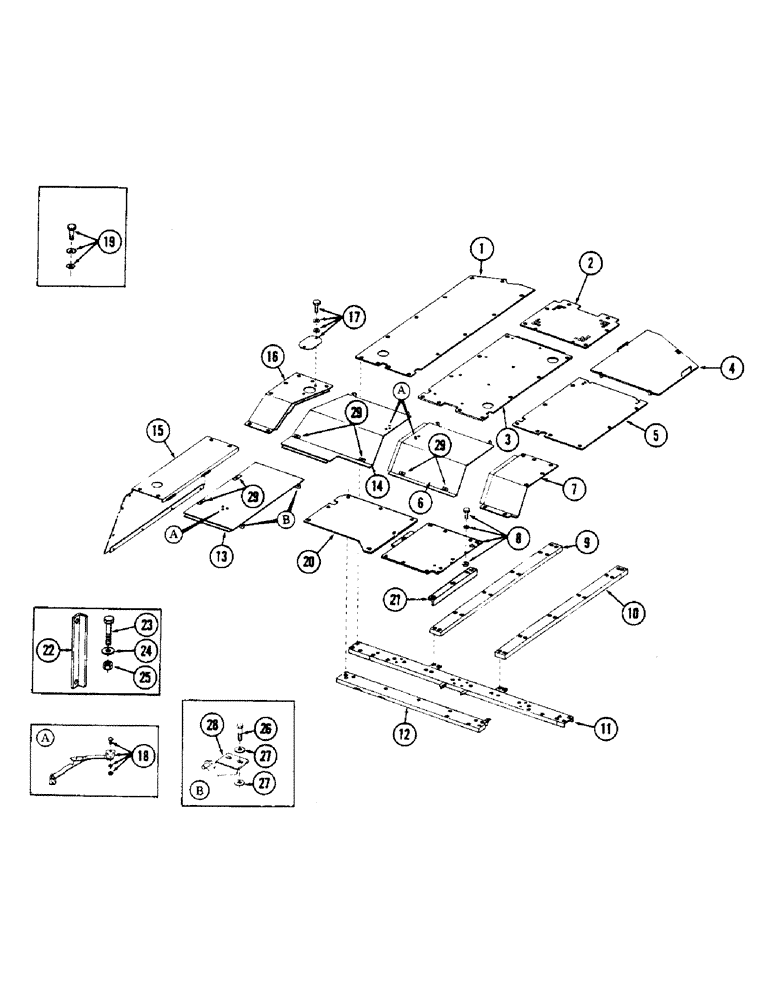

Запчасти Case 120 (093) - TURNTABLE SHROUDING AND ATTACHING PARTS, TOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S604974

PANEL

1шт.

2

S508697

PANEL

1шт.

3

S609626

PANEL - (Supersedes S604970)

1шт.

4

S508930

DOOR

1шт.

5

S508929

PANEL

1шт.

6

S507536

DOOR

1шт.

7

S507675

PANEL

1шт.

8

S509513

PANEL

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5 - (Mounts panel to hinge S223151)

8шт.

S96099

WASHER

flat - 3/8"

8шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

8шт.

9

S604949

CHANNEL

- (Right side)

1шт.

10

S604950

CHANNEL - (Left side)

1шт.

11

S605882

CHANNEL

1шт.

12

S605874

CHANNEL

1шт.

13

S607005

DOOR

1шт.

14

S607001

DOOR

1шт.

15

S607019

SHROUD

1шт.

16

S508700

PANEL

1шт.

17

S225208

COVER

1шт.

S2385

BOLT

CPSW - 1/2" NC x 5/16" gr 5

2шт.

S7383

WASHER

flat - 1/2"

2шт.

S4396

WASHER, LOCK

- 1/2"

2шт.

18

S219473

BRACE

- (Left hand)

1шт.

S219460

BRACE

- (Right hand)

2шт.

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

15шт.

S7380

WASHER

flat - 1/4"

15шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

15шт.

19

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5 - (Common hardware for shrouding)

1шт.

S4399

WASHER

lock - 1/4"

1шт.

S95569

WASHER

flat - 1/4"

1шт.

20

S509514

PANEL

1шт.

21

S223155

ANGLE

1шт.

22

S507588

ANGLE

1шт.

23

S2469

BOLT

CPSW - 1/2" NC x 2"

2шт.

24

S95569

WASHER

hardened flat - 1/2"

4шт.

25

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

26

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

4шт.

27

S96099

WASHER

hardened flat - 3/8"

6шт.

28

S221455

BRACKET

- (Left hand) - (Illustrated)

1шт.

S222540

BRACKET - (Right hand) - (Not illustrated)

1шт.

29

S219346

LATCH

6шт.
