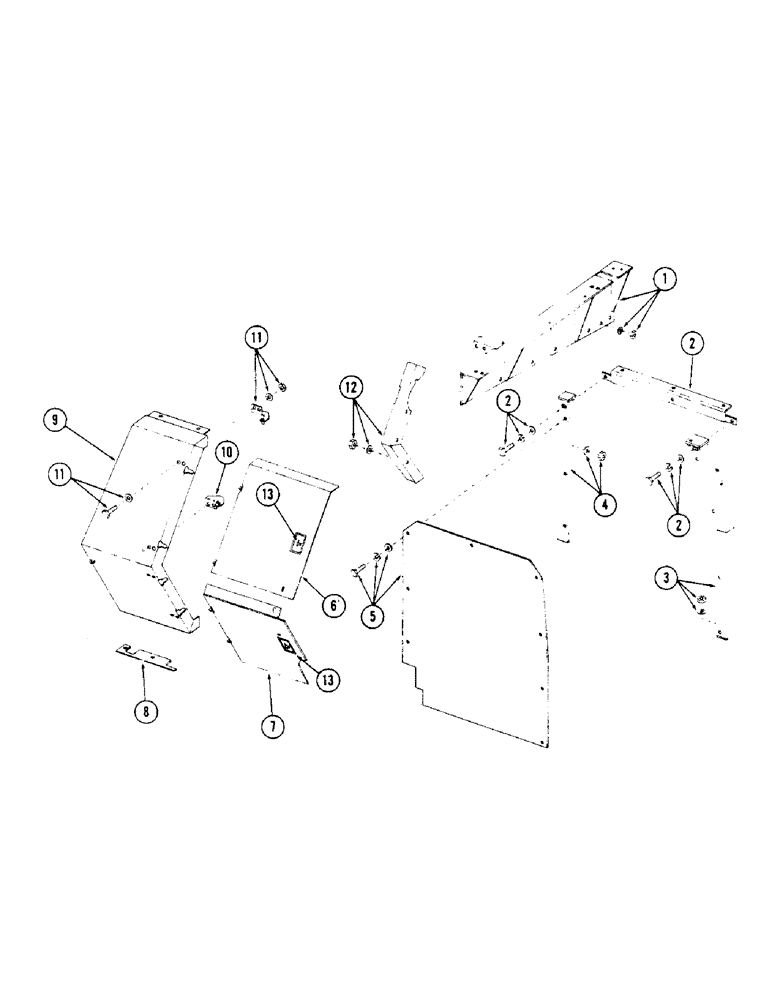

Запчасти Case 120 (091) - TURNTABLE SHROUDING AND ATTACHING PARTS, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S607017

BRACKET

1шт.

S95569

WASHER

flat - 1/2"

7шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC - (Mounts, Serial Range: bracket-turntable)

7шт.

2

S605875

CHANNEL

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5 - (Mounts channel to items 3 and 4)

2шт.

S4399

WASHER

lock - 1/2"

2шт.

S95569

WASHER

flat - 1/2"

2шт.

3

S605897

SUPPORT

1шт.

S95569

WASHER

flat - 1/2"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC - (Mounts, Serial Range: support-turntable)

1шт.

4

S604975

ANGLE

1шт.

S95569

WASHER

flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC - (Mounts, Serial Range: angle-turntable)

2шт.

5

S605891

PANEL

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5 - (Mounts panel to items 2, 3 and 4)

8шт.

S4399

WASHER

lock - 1/2"

8шт.

S95569

WASHER

flat - 1/2"

8шт.

6

S508173

DOOR

- (Top)

1шт.

7

S508186

DOOR

- (Bottom)

1шт.

8

S98348

BAR

1шт.

9

S605903

SHROUD

1шт.

S2468

BOLT

CPSW - 1/2" NC x 1-5/8" gr 5 - (Mounts, Serial Range: shroud-turntable)

3шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5 - (Mounts shroud to items 7 and 10 on Figure 85)

8шт.

S4399

WASHER

lock - 1/2"

11шт.

S95569

WASHER

flat - 1/2"

11шт.

10

S224922

BRACKET, door - (For mounting of top and bottom doors)

2шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5 - (Mounts door bracket to item 9)

4шт.

S96099

WASHER

flat - 3/8"

8шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

8шт.

11

S224921

BRACKET, door - (For mounting of top and bottom doors)

2шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5 - (Mounts door bracket to item 9)

4шт.

S96099

WASHER

flat - 3/8"

8шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

12

S508172

ANGLE

1шт.

S95569

WASHER

flat - 1/2"

4шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC - (Mounts, Serial Range: angle-turntable)

4шт.

13

S219346

LATCH

2шт.
