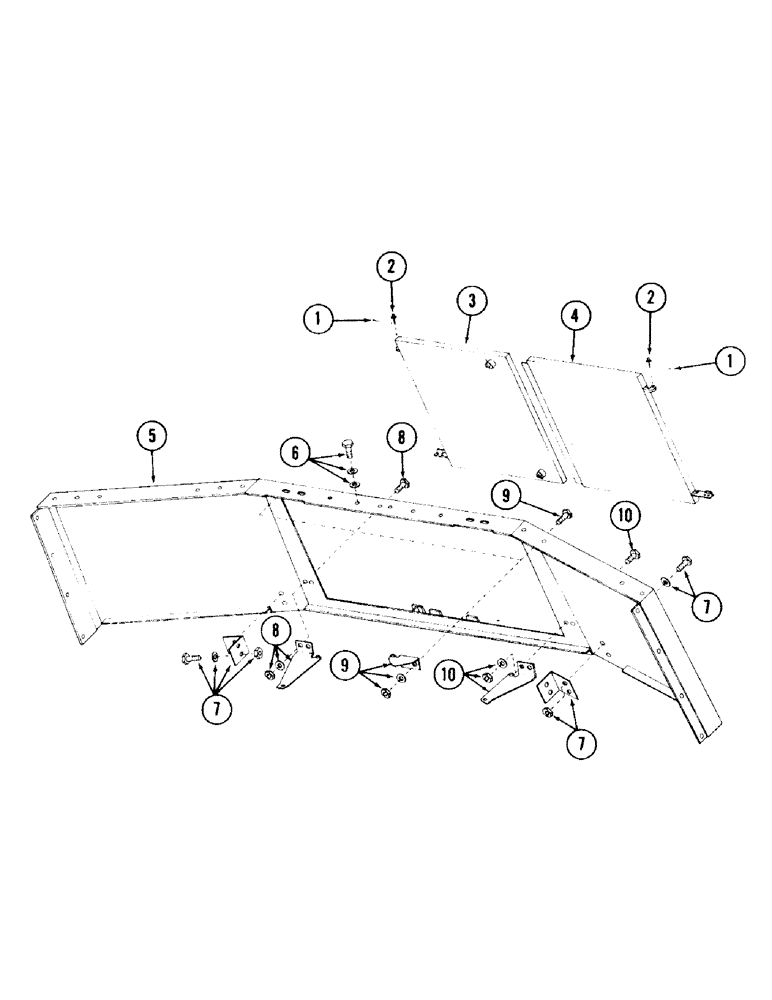

Запчасти Case 120 (087) - TURNTABLE SHROUDING AND ATTACHING PARTS, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S81895

COTTER PIN

PIN, hair

2шт.

2

S217887

PIN

2шт.

3

S604967

DOOR

- (Right hand)

1шт.

4

S604962

DOOR

- (Left hand)

1шт.

5

S605885

SHROUD, rear

1шт.

6

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5 - (Mounts rear shrouding)

1шт.

7

S95569

WASHER

flat - 1/2"

1шт.

S4399

WASHER

lock - 1/2"

1шт.

7

S223143

BRACKET

2шт.

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5 - (Mounts bracket to rear shroud)

4шт.

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5 - (Mounts, Serial Range: bracket-turntable)

4шт.

S95569

WASHER

flat - 1/2"

8шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

8шт.

8

S223175

BRACKET

1шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5 - (Mounts bracket to rear shrouding)

2шт.

S96099

WASHER

flat - 3/8"

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

9

S221455

BRACKET

- (Illustrated) - (Used with left hand rear shroud door)

1шт.

S222540

BRACKET - (Not illustrated) - (Use with right hand rear shroud door)

1шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5 - (Mounts brackets to rear shroud)

4шт.

S96099

WASHER

flat - 3/8"

4шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

10

S223167

BRACKET

1шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5 - (Mounts bracket to rear shrouding)

2шт.

S96099

WASHER

flat - 3/8"

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.
