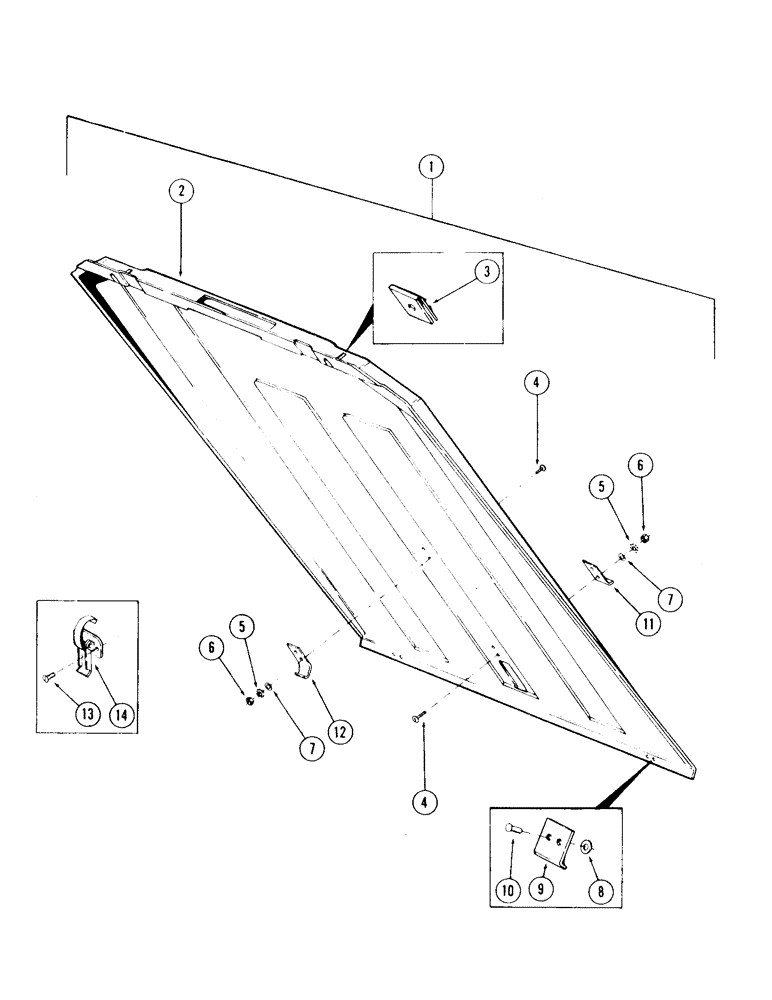

Запчасти Case 120 (079) - CAB AND ATTACHING PARTS, VANDAL GUARD, USED ON UNITS WITH SERIAL NO. 6287229 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

operator - (Includes items listed below and Figures 71 thru 77 and 81)

1шт.

1

S511103

GUARD

ASSEMBLY, vandal

1шт.

2

S955041

GUARD

plastic vandal

1шт.

3

S109504

"U" CLIP

2шт.

4

S90036

SCREW

machine - 1/4" NC x 3/4"

4шт.

5

S70877

WASHER, lock - 1/4" - (External tooth)

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4" NC

4шт.

7

S7377

WASHER

flat - 1/4"

4шт.

8

S7374

WASHER

flat - 7/32"

4шт.

9

S108311

CLIP

2шт.

10

S109782

RIVET

blind

4шт.

11

S231617

CLIP

1шт.

12

S511226

BRACKET

1шт.

13

S109769

SCREW

machine - No. 10 NF x 3/4"

2шт.

14

S109781

LATCH

fastener

1шт.
