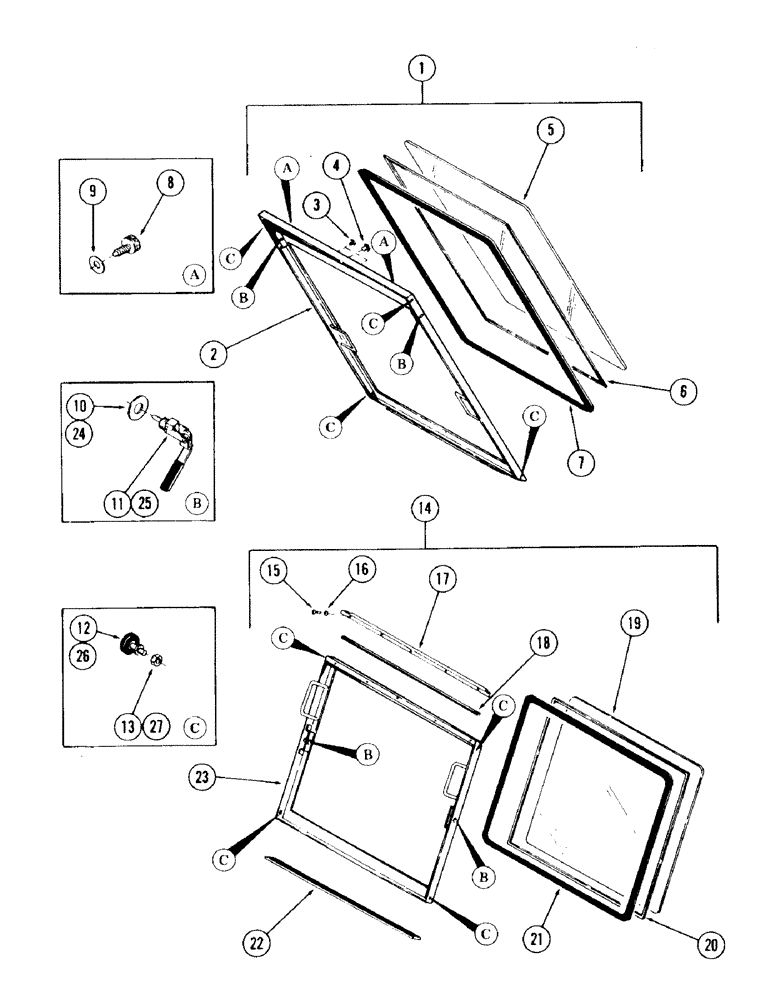

Запчасти Case 120 (077) - CAB AND ATTACHING PARTS, UPPER AND LOWER FRONT WINDOWS AND ATTACHING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

operator - (Includes items listed below and Figures 71 thru 75 and 79 thru 81)

1шт.

1

S610671

WINDOW

ASSEMBLY, front upper

1шт.

2

NSS

NOT SOLD SEPARAT

WINDOW, weldment

1шт.

3

S12790

PLUG - 5/16"

2шт.

4

S12795

PLUG - 3/4"

1шт.

5

S108099

GLASS, front upper

1шт.

6

S75830

SEAL

STRIP, filler - (Bulk) - 1 piece - 145" long

1шт.

7

S75829

SEAL

RUBBER, glass setting - (Bulk) - 1 piece - 145" long

1шт.

8

S109773

FASTENER

2шт.

9

S60969

WASHER

flat - 1/2"

2шт.

10

S7407

WASHER

flat - 3/4"

2шт.

11

S231570

CLAMP

windshield - (Right hand)

1шт.

S231571

CLAMP

windshield - (Left hand)

1шт.

12

S109776

ROLLER

rubber

4шт.

13

280431

NUT,1/2"-13, G5

4шт.

14

S610763

WINDOW ASSEMBLY, front lower

1шт.

15

S60105

SCREW, machine - 1/4" NF x 1/2"

5шт.

16

S4395

WASHER, LOCK

- 1/4"

5шт.

17

S511097

BRACKET

1шт.

18

S60106

CHANNEL, rubber - (Bulk) - 1 piece - 30" long

1шт.

19

S108100

WINDOW, plastic

1шт.

20

S75830

SEAL

STRIP, filler - (Bulk) - 1 piece - 73" long

1шт.

21

S75829

SEAL

RUBBER, glass setting - (Bulk) - 1 piece - 73" long

1шт.

22

S109510

SEAL - (Bulk) - 1 piece - 62" long

1шт.

23

NSS

NOT SOLD SEPARAT

WINDOW, weldment

1шт.

24

S7407

WASHER

flat - 3/4"

2шт.

25

S213570

CLAMP, windshield - (Right hand)

1шт.

S213571

CLAMP

windshield - (Left hand)

1шт.

26

S109776

ROLLER

rubber

4шт.

27

280431

NUT,1/2"-13, G5

4шт.

28

S109779

ADHESIVE - (Not illustrated)

1шт.
