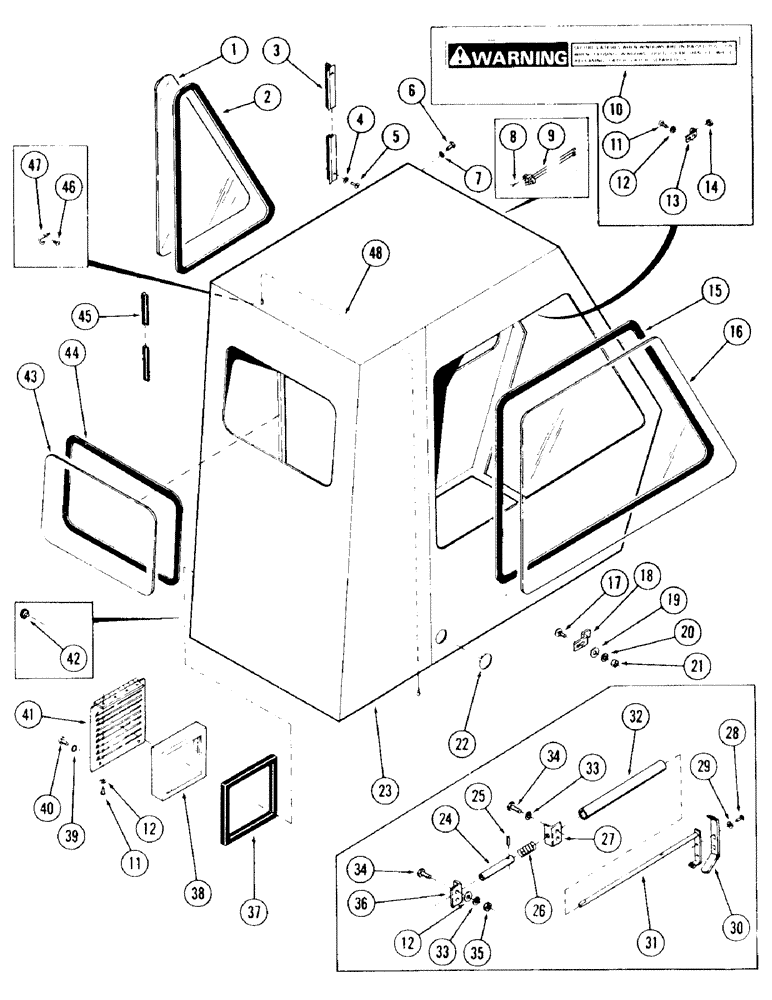

Запчасти Case 120 (071) - CAB AND ATTACHING PARTS, USED ON UNITS WITH SERIAL NUMBER 6287229 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

ASSEMBLY - (Includes items listed below and on Figures 73 thru 81)

1шт.

1

S108104

WINDOW, plastic

1шт.

2

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 102" long

1шт.

3

S108306

RETAINER

door

1шт.

4

S7381

WASHER

flat

6шт.

5

S109766

SCREW

machine - 5/16" NC x 3/4"

6шт.

6

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

3шт.

7

S49599

WASHER

seal - 3/8"

3шт.

8

S60825

SCREW

machine - No. 6 x 1/2"

2шт.

9

S231582

HARNESS

SOCKET ASSEMBLY

1шт.

10

S232929

DECAL, window warning

1шт.

11

S109767

SCREW

machine - 1/4" NC x 3/4"

8шт.

12

S7377

WASHER

flat - 1/2"

10шт.

13

S231611

BRACKET, bumper

2шт.

14

S109513

BUMPER

2шт.

15

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 156" long

1шт.

16

S108103

WINDOW, plastic

1шт.

17

S109768

BOLT, carriage - 3/8" NC x 1"

8шт.

18

S231580

BRACKET - (Right hand)

2шт.

S231581

BRACKET - (Left hand)

2шт.

19

S7385

INSTRUCTION

WASHER, flat - 3/8"

8шт.

20

S4397

WASHER

lock - 3/8"

8шт.

21

S4222

NUT

- 3/8" NC

8шт.

22

S61789

PLUG

button

1шт.

23

S610764

CAB, weldment

1шт.

S231583

RETAINER

DOOR RETAINER ASSEMBLY

1шт.

24

S108308

TUBE,0.75" OD x 6.41" L

1шт.

25

S90087

PIN

roll

1шт.

26

S109506

SPRING

1шт.

27

S108307

BRACKET

1шт.

28

S90054

SCREW, machine - 1/4" NC x 1/2"

2шт.

29

S4395

WASHER, LOCK

- 1/4"

2шт.

30

S511203

BRACKET

1шт.

31

S231584

RETAINER

door weldment

1шт.

32

S108309

TUBE,1" OD x 9.44" L

1шт.

33

S4395

WASHER, LOCK

4шт.

34

S63053

SCREW

machine - 1/4" NC x 5/8"

4шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4" NC

2шт.

36

S108307

BRACKET

1шт.

37

S106778

SEAL

- (Bulk) - 1 piece - 43" long

1шт.

38

S61764

FILTER

1шт.

39

S60969

WASHER

2шт.

40

S109774

FASTENER

2шт.

41

S511102

DOOR, filter

1шт.

42

S109513

BUMPER, door

1шт.

43

A108101

WINDOW, plastic

1шт.

44

S109778

SEAL

SETTING MATERIAL - (Bulk) - 1 piece - 84" long

1шт.

45

S109775

SEAL

trim - (Blk) - 1 piece - 279" long

1шт.

46

S109769

SCREW

machine - No. 10 NF x 3/4"

2шт.

47

S61769

HOOK

1шт.

48

S231612

WIRE ASSEMBLY

1шт.

49

S95517

ADHESIVE

- (Not illustrated) - (Use with seals)

1шт.

50

S109780

ADHESIVE

- (Not illustrated) - (Use with seal on item 3)

1шт.
