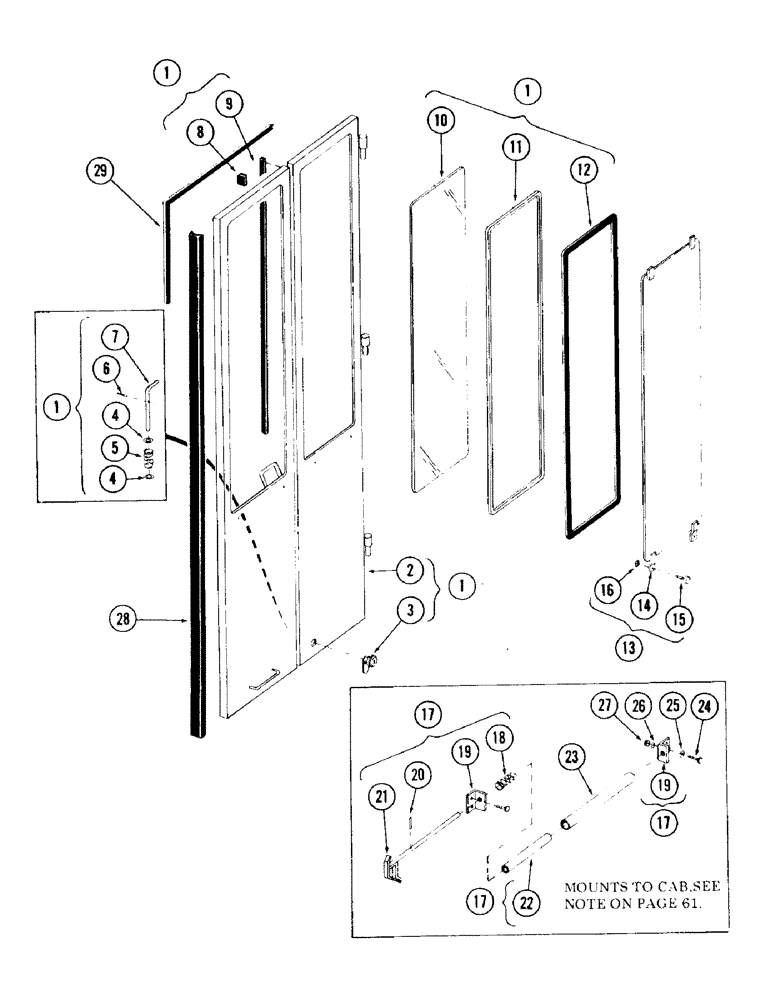

Запчасти Case 120 (067) - CAB AND ATTACHING PARTS, DOOR ASSEMBLY, USED ON UNITS WITH SERIAL NO. 65521 THRU 6287228 (90) - PLATFORM, CAB, BODYWORK AND DECALS

S953642

CAB ASSEMBLY - (Includes items listed below and Figures 61 thru 65 and 69 and 69)

1шт.

1

S500490

DOOR ASSEMBLY - (Includes items 8 and 9 on Figure 69)

1шт.

2

S62975

DOOR

WELDMENT

1шт.

3

S90080

LOCK

door

1шт.

4

S7381

WASHER

flat - 5/16"

2шт.

5

S62977

SPRING

latch

1шт.

6

S90087

PIN

roll - 1/8" dia. x 3/4" long

1шт.

7

S62976

LATCH

1шт.

8

S62983

SEAL

4шт.

9

S62982

SEAL

1шт.

10

S62981

GLASS, (Tempered)

2шт.

11

S75830

SEAL

STRIP, filler - (Bulk) - 2 pieces - 94" long

1шт.

12

S75829

SEAL

SETTING MATERIAL - (Bulk) - 2 pieces - 94" long

1шт.

13

S500495

GUARD ASSEMBLY, vandal

2шт.

14

S61102

GUARD

WELDMENT

2шт.

15

S60968

FASTENER

4шт.

16

S60969

WASHER

4шт.

17

S500491

KEEPER ASSEMBLY, door

1шт.

18

S63040

SPRING

keeper

1шт.

19

S63012

BRACKET

2шт.

20

S90087

PIN

roll - 1/8" x 3/4" long

1шт.

21

S61793

HANDLE

1шт.

22

S63052

TUBE

1шт.

23

S63057

TUBE

1шт.

24

S63053

SCREW

machine - 1/4" NC x 5/8"

4шт.

25

S7377

WASHER

flat - 1/4"

2шт.

26

S4395

WASHER, LOCK

- 1/4" NC

2шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4" NC

2шт.
