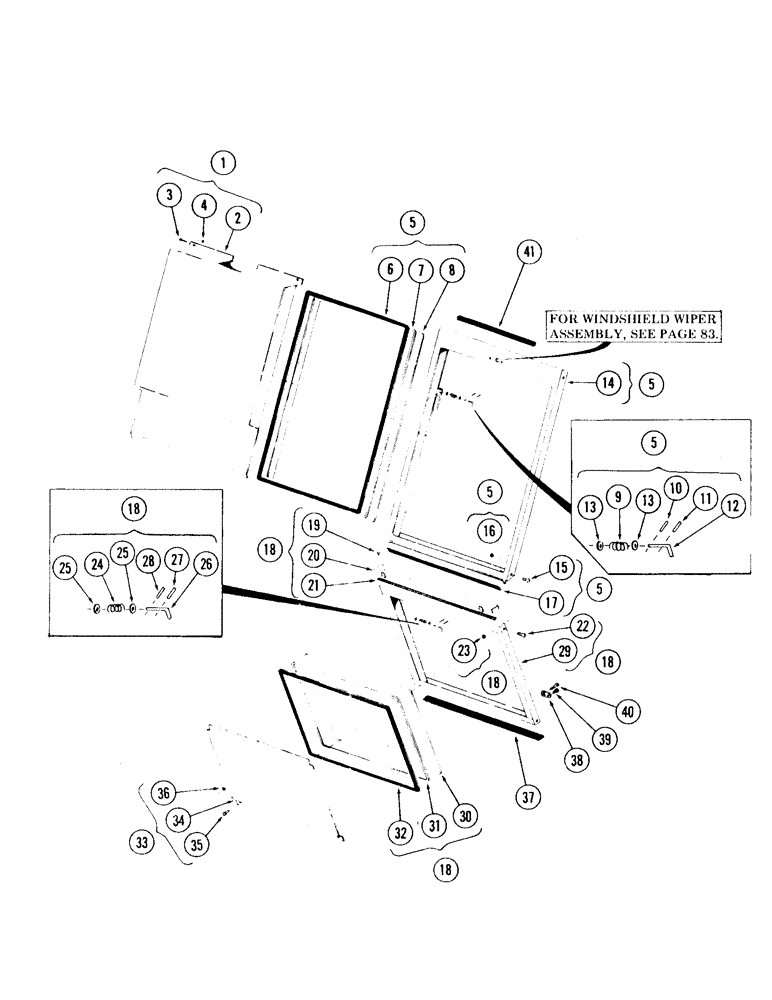

Запчасти Case 120 (065) - CAB ANDATTACHING PARTS, UPPER AND LOWER WINDSHIELD ASSEMBLIES AND ATTACHING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
S953642
CAB ASSEMBLY - (Includes items listed below and Figures 61 thru 63 and 67 thru 69)
1шт.
1
S500500
GUARD ASSEMBLY, vandal
1шт.
2
S61756
GUARD
WELDMENT
1шт.
3
S60968
FASTENER
1шт.
4
S60969
WASHER
1шт.
5
S500492
WINDSHIELD ASSEMBLY, upper
1шт.
6
S75829
SEAL
SETTING MATERIAL - (Bulk) - 1 piece - 145" long
1шт.
7
S75830
SEAL
STRIP, filler - (Bulk) - 1 piece - 145" long
1шт.
8
S63171
GLASS, windshield - (Tempered)
1шт.
9
S90086
SPRING, latch
1шт.
10
S90087
PIN
roll - 1/8" dia. x 3/4" long
1шт.
11
S5250
PIN
roll - 1/8" dia. x 1" long
1шт.
12
S63089
LATCH, window
1шт.
13
S7385
INSTRUCTION
WASHER, flat - 3/8"
2шт.
14
S63059
FRAME
windshield - lower
1шт.
15
S63141
ROLLER
4шт.
16
S65150
NUT, lock
4шт.
17
S63190
SEAL
1шт.
18
S500493
WINDSHIELD ASSEMBLY, lower
1шт.
19
S60105
SCREW, machine - 1/4" NC x 1/2"
5шт.
20
S63192
RETAINER
1шт.
21
S60106
SEAL - (Bulk) - 1 piece - 29" long
1шт.
22
S63141
ROLLER
4шт.
23
S65150
NUT, lock
4шт.
24
S90086
SPRING, latch
1шт.
25
S7385
INSTRUCTION
WASHER, flat - 3/8"
2шт.
26
S63089
LATCH, window
1шт.
27
S5250
PIN
roll - 1/8" dia. x 1" long
1шт.
28
S90087
PIN
roll - 1/8" dia. x 3/4" long
1шт.
29
S63191
RETAINER
FRAME, windshield - lower
1шт.
30
S60107
GLASS, windshield (Tempered)
1шт.
31
S75830
SEAL
STRIP, filler - (Bulk) - 1 piece - 73" long
1шт.
32
S75829
SEAL
SETTING MATERIAL, (Bulk) - 1 piece - 73" long
1шт.
33
S500499
GUARD ASSEMBLY, vandal
1шт.
34
S61755
GUARD
WELDMENT
1шт.
35
S61757
FASTENER
2шт.
36
S60969
WASHER
2шт.
37
S61762
SEAL
1шт.
38
S60826
CLAMP
6шт.
39
S60903
SCREW, shoulder
6шт.
40
S60902
SCREW, thumb
6шт.
41
S62978
SEAL - (Bulk) - 1 piece - 200" long
1шт.
Выбрано товаров: 42
