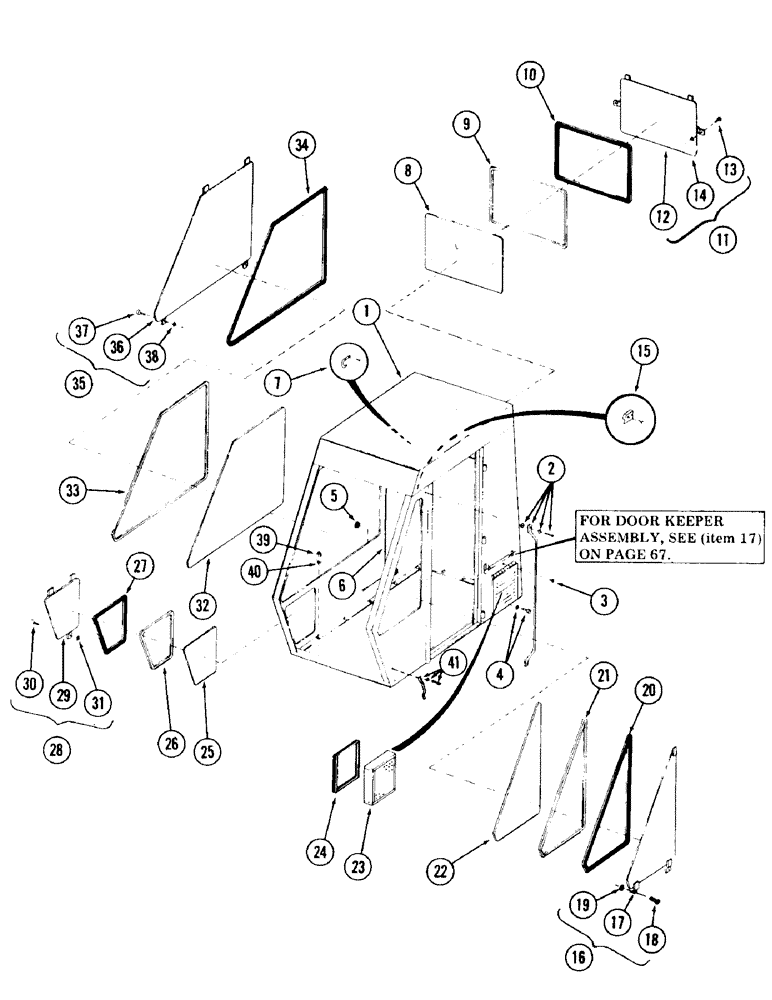

Запчасти Case 120 (061) - CAB AND ATTACHING PARTS, USED ON UNITS WITH SERIAL NO. 65521 THRU 6287228 (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
S953642
CAB ASSEMBLY - (Includes items listed below and Figures 65 thru 69)
1шт.
1
S62937
CAB
WELDMENT
1шт.
2
S62984
HANDLE, grab
1шт.
S62985
SCREW, machine - 5/16" NC x 7/8"
2шт.
S7381
WASHER
flat - 5/16"
2шт.
S63011
NUT, lock
2шт.
3
S61766
BUMPER
rubber
1шт.
4
S61765
FASTENER, filter door
2шт.
S60969
WASHER
filter door
2шт.
5
S61789
PLUG
BUTTON , plug
1шт.
6
S60904
ELECTRICAL WIRE
WIRE ASSEMBLY, dome light
1шт.
7
S61769
HOOK
coat
1шт.
S61770
SCREW, machine - No. 10 NC x 1/2"
2шт.
8
S61761
GLASS - (Rear) - (Tempered)
1шт.
9
S75830
SEAL
STRIP, filler - (Bulk) - 1 piece - 85" long
1шт.
10
S75829
SEAL
SETTING MATERIAL - (Bulk) - 1 piece - 85" long
1шт.
11
S500497
GUARD ASSEMBLY, vandal
1шт.
12
S61294
GUARD
WELDMENT
1шт.
13
S60968
FASTENER
2шт.
14
S60969
WASHER
2шт.
15
S60108
PLATE, windshield slide - (Right side)
1шт.
D60109
PLATE, windshield slide - (Left side)
1шт.
S60213
SCREW, machine - 1/4" NC x 5/8"
4шт.
16
S500494
GUARD ASSEMBLY, vandal
1шт.
17
S60905
GUARD
WELDMENT
1шт.
18
S60968
FASTENER
2шт.
19
S60969
WASHER
2шт.
20
S75829
SEAL
SETTING MATERIAL - (Bulk) - 1 piece - 104" long
1шт.
21
S75830
SEAL
STRIP, filler - (Bulk) - 1 piece - 104" long
1шт.
22
S61759
GLASS - (Left front) - (Tempered)
1шт.
23
S61764
FILTER
1шт.
24
F67064
SEAL, filter - (Bulk) - 1 piece - 44" long
1шт.
25
S61760
GLASS - (Lower right) - (Tempered)
1шт.
26
S75830
SEAL
STRIP, filler - (Bulk) - 1 piece - 59" long
1шт.
27
S75829
SEAL
SETTING MATERIAL - (Bulk) - 1 piece - 59" long
1шт.
28
S500496
GUARD ASSEMBLY, vandal
1шт.
29
S61293
GUARD WELDMENT
1шт.
30
S60968
FASTENER
2шт.
31
S60969
WASHER
2шт.
32
S61758
GLASS - (Upper right) - (Tempered)
1шт.
33
S75830
SEAL
STRIP, filler - (Bulk) - 1 piece - 158" long
1шт.
34
S75829
SEAL
SETTING MATERIAL - (Bulk) - 1 piece - 158" long
1шт.
35
S500498
GUARD ASSEMBLY, vandal
1шт.
36
S61754
GUARD
WELDMENT
1шт.
37
S60968
FASTENER
2шт.
38
S60969
WASHER
2шт.
39
S9091
NUT
self locking - 1/2" NC - (Mounts cab to floor plate)
15шт.
40
S86132
WASHER
flat - 1/2"
15шт.
41
S78785
HANDLE, grab
1шт.
S62985
SCREW, machine - 5/16" NC x 7/8" gr 5
2шт.
S7381
WASHER
flat - 5/16"
2шт.
42
S610403
KIT - (Field repair for window rollers)
1шт.
Выбрано товаров: 52
