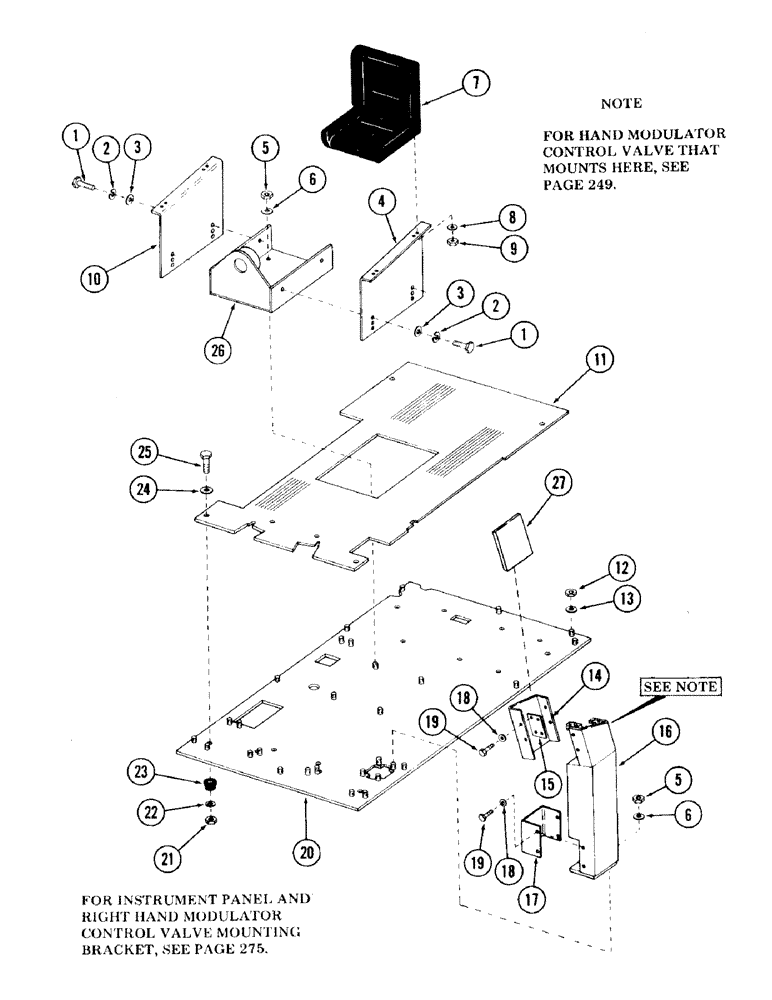

Запчасти Case 120 (059) - TURNTABLE ATTACHING PARTS INSIDE OF OPERATORS CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

1шт.

2

S4399

WASHER

lock - 1/2"

1шт.

3

S7395

WASHER

flat - 1/2"

1шт.

4

S508264

ANGLE

seat mounting

1шт.

5

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

6

S95569

WASHER

flat - 1/2"

1шт.

7

S220432

NO LONGER SERVICED

SEAT

1шт.

8

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

9

231-1445

NUT,5/16"-18, GB

NUT, self locking - 3/8" NC

4шт.

10

S508263

ANGLE

seat mounting

1шт.

11

S606089

MAT, floor

1шт.

12

S9091

NUT

self locking - 1/2" NC - (Mounts operators cab to floor plate)

13шт.

13

S86132

WASHER

flat - 1/2"

13шт.

14

S233607

CHANNEL

cover - (Top)

1шт.

15

S99506

BAR

2шт.

16

S611686

BRACKET

modulator control valve mounting

1шт.

17

S223890

CHANNEL

cover - (Bottom)

1шт.

18

S7380

WASHER

flat - 1/4"

1шт.

19

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

1шт.

20

S606119

PLATE

operators cab floor

1шт.

21

S17089

NUT

self locking - 3/4" NC

4шт.

22

S82255

WASHER

flat - 13/16"

4шт.

23

S93392

MOUNTING PARTS

MOUNT, center bonded

4шт.

24

S84752

WASHER

flat - 25/32"

4шт.

25

S2556

CPSW - 3/4" NC x 4-3/4" gr 5

4шт.

26

S507994

BRACKET, seat mounting

1шт.

27

S509769

INSULATOR

INSULATION

1шт.
