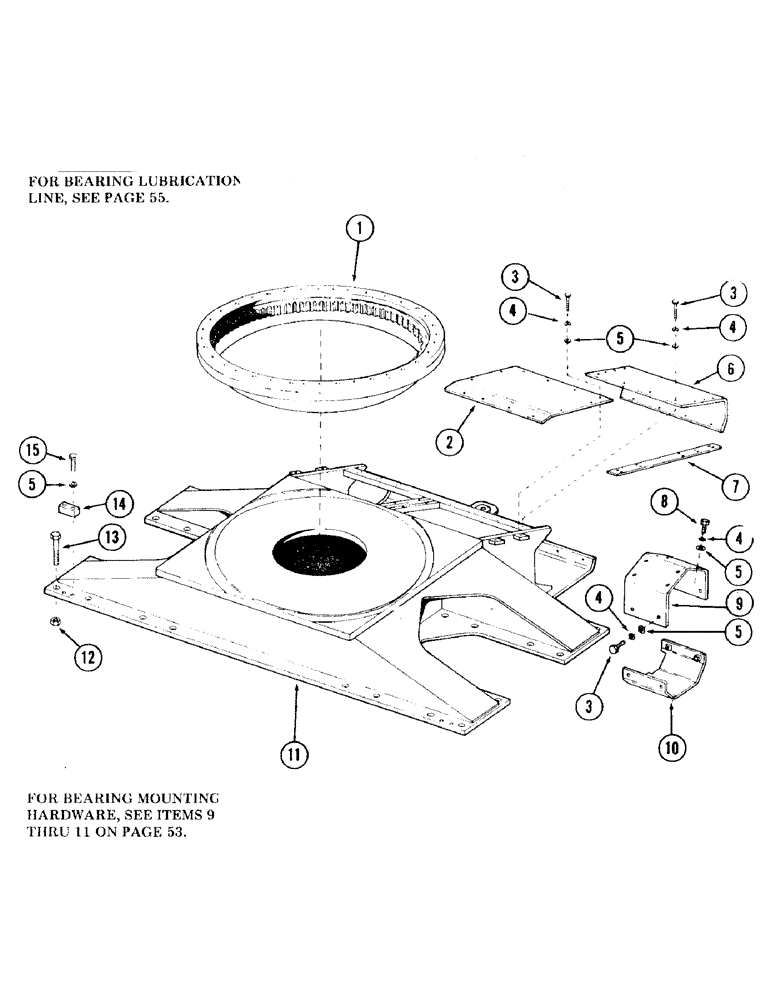

Запчасти Case 120 (007) - CARBODY AND ATTACHING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S507526

BEARING, turntable -, Serial Range: (Welds-carbody)

1шт.

2

S507778

COVER

- (Top)

2шт.

3

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

4

S4399

WASHER

lock - 1/2"

1шт.

5

S95569

WASHER

flat - 1/2"

1шт.

6

S508287

COVER - (Bottom)

2шт.

7

S96607

BAR

1шт.

8

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

1шт.

9

S223521

GUARD - (Upper)

2шт.

10

S223519

GUARD - (Lower)

2шт.

11

S953630

BODY

CARBODY

1шт.

12

S17095

NUT

self locking - 1-1/2" NC

16шт.

13

S96602

CPSW - 1-1/2" NC x 4" gr 8

24шт.

14

S96653

BAR

stop

4шт.

15

S15675

BOLT

CPSW - 1/2" NC x 2-1/4" gr 8

8шт.
