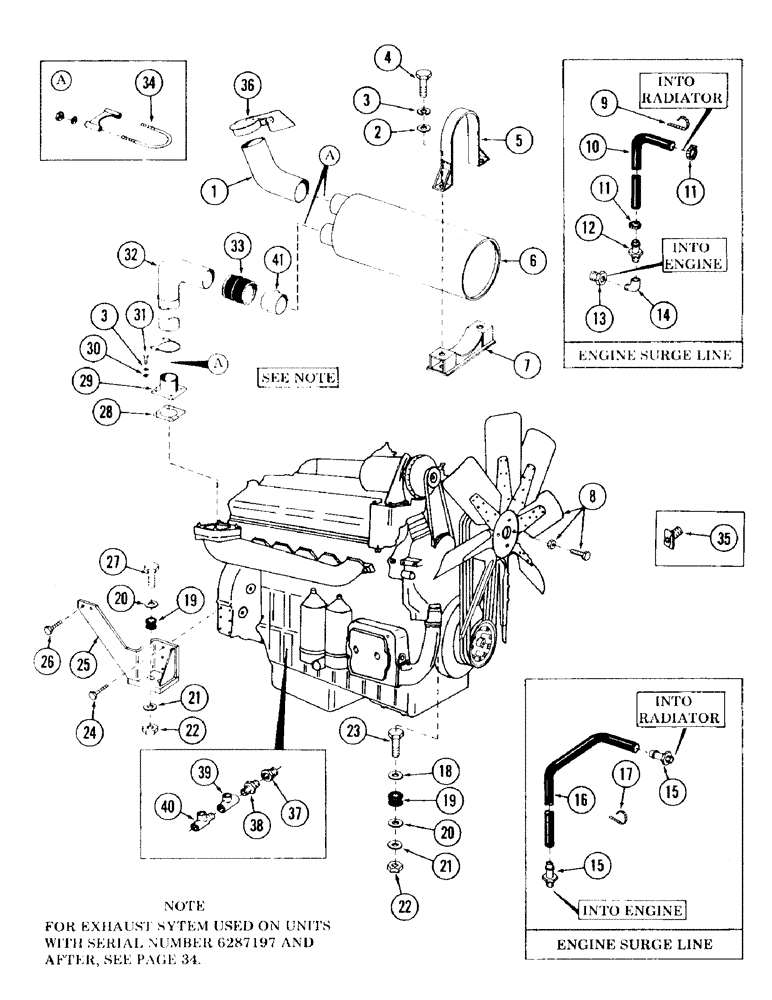

Запчасти Case 120 (029) - DETROIT DIESEL 12V-71 DIESEL ENGINE, DROTT NO. S604420, AND ATTCHING PARTS (10) - ENGINE

1

S107834

PIPE, exhaust - 4" - (Used on units with serial number 65521 thru 6287196)

2шт.

2

S86132

WASHER

flat - 1/2"

8шт.

3

S4399

WASHER

lock - 1/2"

1шт.

4

S2475

BOLT

CPSW - 1/2" NC x 4" gr 5

8шт.

5

S96177

STRAP

muffler mounting - (Used on units with serial number 65521 thru 6287196)

4шт.

6

S222578

MUFFLER

2шт.

7

S223121

BRACKET, muffler mounting -, Serial Range: (Mounts-shroud)

4шт.

8

S607626

FAN

1шт.

S98925

SPACER, fan - (Not illustrated)

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4

4шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

9

S73386

FASTENER

TIE, cable

1шт.

10

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 60" long 1.00" ID Bulk, SAE 100R3

1шт.

11

S10875

HOSE CLAMP

CLAMP, hose

2шт.

12

S87533

STEM

INSERT, hose - 3/4" - 14 NPT male - (Fits 1" ID hose)

1шт.

13

S7775

BUSHING

reducer - 1-11-1/2" NPT male x 3/4" - 14 NPT male

1шт.

14

S17527

ELBOW

90 degrees pipe - 3/4" - 14 NPT male x 3/4" 14 NPT female

1шт.

15

S63652

END ASSY.

INSERT, hose - 3/8" NPT male - (Fits 3/8" ID hose)

2шт.

16

S63654

HOSE

low pressure (Bulk) - 1 piece - 3/8" ID x 52" long

1шт.

17

S73386

FASTENER

TIE, cable

3шт.

18

S99118

WASHER

flat - 11/16"

2шт.

19

S27791

MOUNTING PARTS

MOUNT, rubber

6шт.

20

S49559

WASHER

flat - 7/16"

6шт.

21

S7404

WASHER, flat - 5/8"

6шт.

22

S17171

NUT

self locking - 5/8" NC

2шт.

23

S2515

BOLT (MACHINE)

CPSW - 5/8" NC x 4-3/4" gr 5 - (Mounts front of engine to bracket on turntable)

2шт.

24

S2502

BOLT (MACHINE)

CPSW - 5/8" NC x 1-1/2" gr 5 - (Mounts, Serial Range: bracket-engine)

12шт.

25

S224855

BRACKET, rear engine mounting - (Right hand) - (Illustrated)

1шт.

S224856

BRACKET

rear engine mounting - (Left hand) - (Not illustrated)

1шт.

26

S2501

BOLT (MACHINE)

CPSW - 5/8" NC x 1-1/4" gr 5 - (Mounts bracket to pump drive transmission)

4шт.

27

S2512

BOLT (MACHINE)

CPSW - 5/8" NC x 4" gr 5 - (Mounts, Serial Range: bracket-turntable)

4шт.

28

S223138

GASKET - (Used on units with serial number 65521 thru 6287196)

2шт.

29

S223117

FLANGE, exhaust - (Used on units with serial number 65521 thru 6287196)

2шт.

30

S7392

WASHER

flat - 1/2" - (Used on units with serial number 65521 thru 6287196)

8шт.

31

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5 - (Used on units with serial number 65521 thru 6287196)

8шт.

32

S233105

PIPE, exhaust - (Used on units with serial number 65521 thru 6287196)

2шт.

33

S233103

CONNECTOR, flexible - (Used on units with serial number 65521 thru 6287196)

2шт.

34

S78838

CLAMP

muffler - (Used on units with serial number 65521 thru 6287196)

8шт.

35

S218848

VALVE

drain - (Block coolant)

2шт.

36

S93398

CAP

rain - 4" - (Used on units with serial number 65521 thru 6287196)

2шт.

37

S17550

PLUG

BUSHING, reducer - 1/4" NPT male x 1/8" NPT female

1шт.

38

S62654

NIPPLE, LUBE

CONNECTOR - 1/8" NPT male x 1/8" NPT male

1шт.

39

S17977

TEE

- 1/8" NPT female x 1/8" NPT female x 1/8" NPT female

1шт.

40

S17937

TEE

- 1/8" NPT male x 1/8" NPT female x 1/8" NPT female

1шт.

41

S110009

CONNECTOR, exhaust

2шт.

42

S110064

TUBE,1.25" ID

plastic - (Bulk) - 1 piece x 36" long

1шт.

43

S110064

TUBE,1.25" ID

plastic - (Bulk) - 1 piece x 43" long

1шт.

44

S10876

HOSE CLAMP

CLAMP

2шт.

45

S29181

HOSE

low pressure - (Bulk) - 2 pieces - 3/8" ID x 19" long

1шт.

46

S10871

HOSE CLAMP

CLAMP, hose

2шт.
