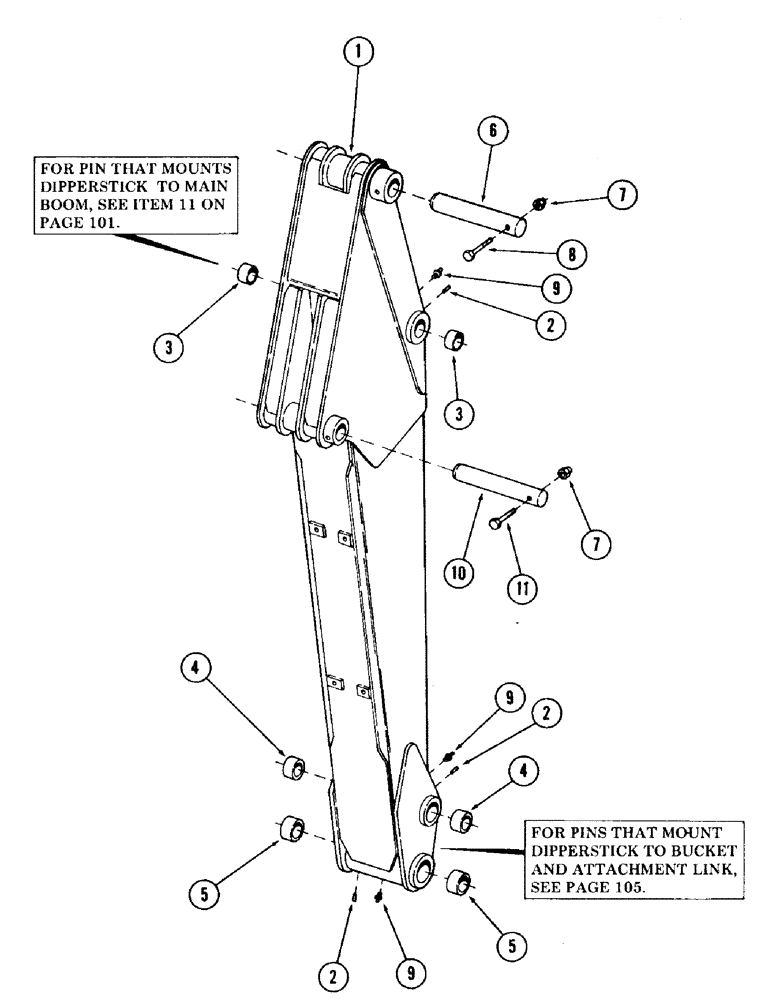

Запчасти Case 120 (103) - 11-0" DIPPERSTICK AND ATTACHING PARTS (84) - BOOMS, DIPPERS & BUCKETS

1

S953422

DIPPERSTICK

1шт.

2

S86890

SET SCREW

SCREW, set - 3/8" NC x 3/8" - (Nylock)

12шт.

3

S223513

BUSHING

2шт.

4

S96738

BUSHING

2шт.

5

S96739

BUSHING

2шт.

6

S223101

PIN - (Crowd cylinder to rod, Serial Range: end-dipperstick)

1шт.

7

231-14012

LOCK NUT,3/4"-10, GB

NUT, self locking - 3/4" NC

2шт.

8

S89995

BOLT

CPSW - 3/4" NC x 7-1/2" gr 8

1шт.

9

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

10

S223102

PIN - (Tool cylinder base, Serial Range: end-dipperstick)

1шт.

11

S90125

BOLT

CPSW - 3/4" NC x 6-1/2" gr 8

1шт.
