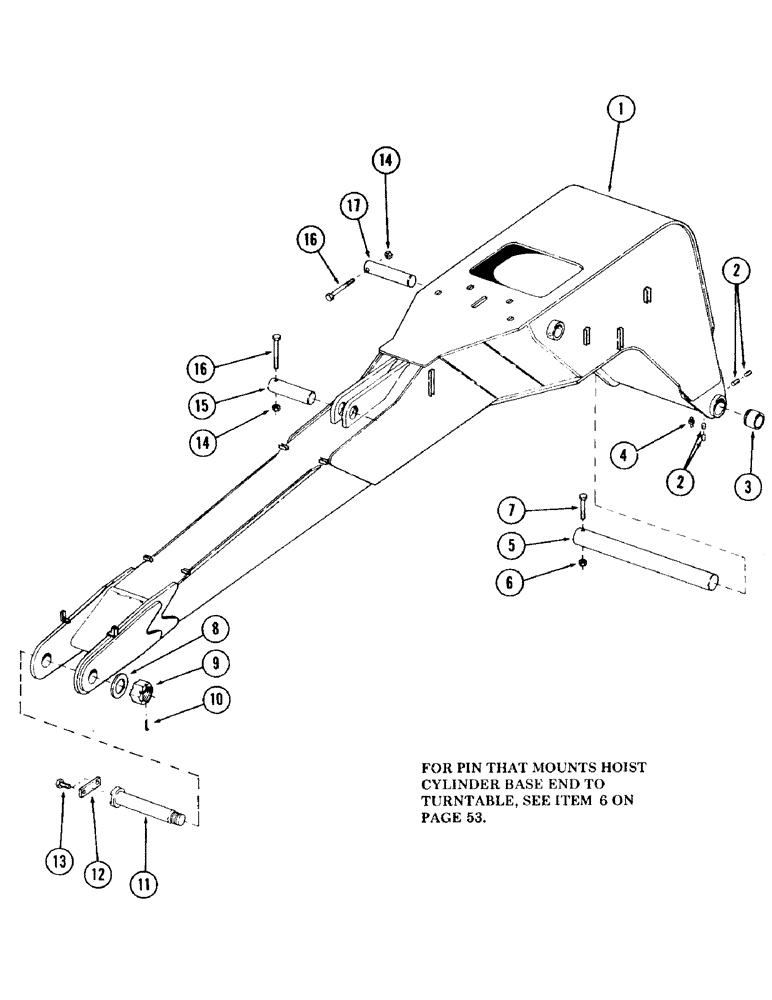

Запчасти Case 120 (101) - MAIN BOOM AND PINS (84) - BOOMS, DIPPERS & BUCKETS

1

S954431

BOOM, main - (Supersedes S953420)

1шт.

2

S86890

SET SCREW

SCREW, set - 3/8" NC x 3/8

8шт.

3

S222581

BUSHING

2шт.

4

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.

5

S223106

PIN - (Main, Serial Range: boom-turntable)

1шт.

6

231-14016

LOCK NUT,1"-8, GB

NUT, self locking - 1" NC

1шт.

7

S97481

CPSW - 1" NC x 7-1/2" gr 8

1шт.

8

S95337

WASHER

flat - 3-1/8"

1шт.

9

S96546

NUT

hex slotted - 3" NC

1шт.

10

S4727

PIN, cotter - 1/2" x 6" long

1шт.

11

S223097

PIN - (Main, Serial Range: boom-dipperstick)

1шт.

12

S96741

SPACER

1шт.

13

S96751

CPSW - 1" NC x 2" gr 8

2шт.

14

231-14012

LOCK NUT,3/4"-10, GB

NUT, self locking - 3/4" NC

3шт.

15

S223104

PIN - (Crowd cylinder base end to main boom)

1шт.

16

S90125

BOLT

CPSW - 3/4" NC x 6-1/2" gr 8

3шт.

17

S223100

PIN - (Hoist cylinder rod end to main boom)

2шт.
