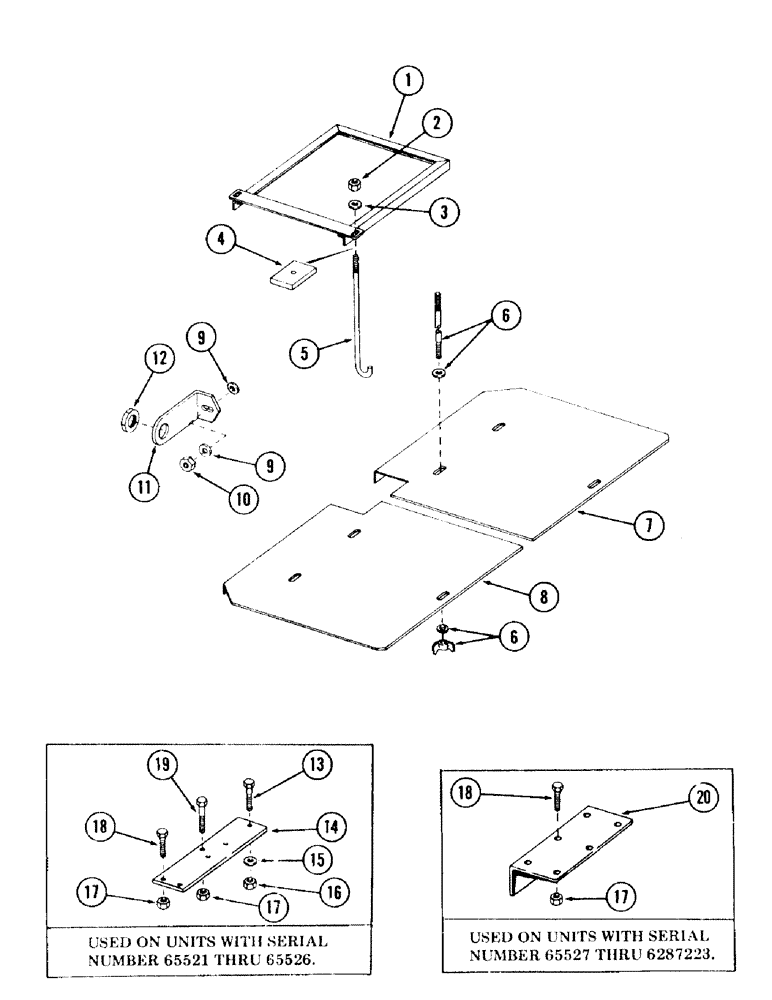

Запчасти Case 120 (293) - ELECTRICAL MOUNTING BRACKET AND HARDWARE (55) - ELECTRICAL SYSTEMS

1

S508661

BRACKET, battery hold down mounting

2шт.

2

S4222

NUT

- 3/8 inch NC

5шт.

3

S7389

WASHER

flat - 7/16 inch

5шт.

4

S98882

BAR

- (Used with one of item 5 only)

1шт.

5

S96179

"J" BOLT - 3/8 inch NC

5шт.

6

S97328

STUD

6шт.

S86132

WASHER

flat - 1/2 inch

6шт.

S4399

WASHER

lock - 1/2 inch

6шт.

S49500

NUT, wiring

6шт.

7

S508664

COVER ASSY

COVER, battery

1шт.

8

S508663

COVER ASSY

COVER, battery

1шт.

9

S7381

WASHER

flat - 5/16 inch

2шт.

10

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

11

S203190

BRACKET

horn mounting

1шт.

12

S64752

NUT

- (Mounts, Serial Range: horn-bracket)

1шт.

13

S2376

CPSW - 5/16 inch NC x 1 inch gr 5, (Mounts, Serial Range: bracket-channel)

2шт.

14

S223850

BRACKET

voltage regulator and relay mounting

1шт.

15

S7380

WASHER

flat - 5/16 inch

2шт.

16

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16 inch NC

2шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

18

S2350

MUFFLER

CPSW - 1/4 inch NC x 3/4 inch gr 5, (Mounts voltage regulator and, Serial Range: relay-bracket)

1шт.

19

S2352

BOLT

CPSW - 1/4 inch NC x 1-1/4 inches gr 5 - (Mounts voltage regulator and, Serial Range: relay-bracket)

3шт.

20

S228372

BRACKET

voltage regulator and relay mounting

1шт.
