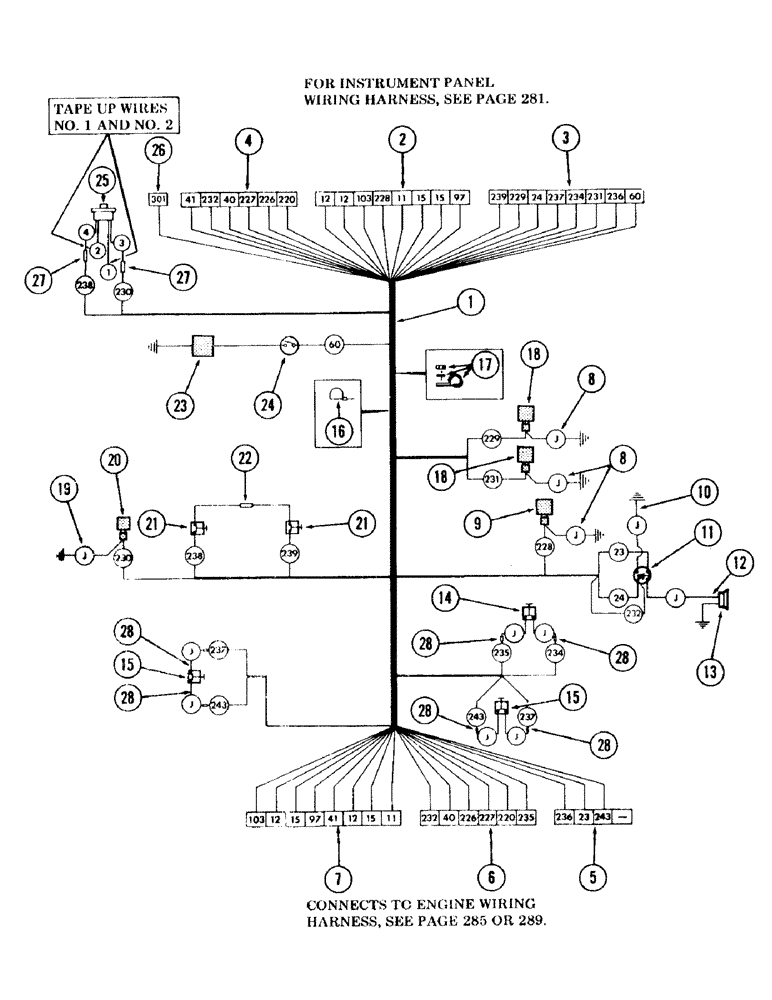

Запчасти Case 120 (283) - TURNTABLE WIRING HARNESS AND ELECTRICAL COMPONENTS (55) - ELECTRICAL SYSTEMS

1

S607361

WIRING HARNESS, turntable

1шт.

2

S72217

ROD, CONNECTING

BLOCK, connector

1шт.

3

S72172

ROD, CONNECTING

BLOCK, connector

1шт.

4

S72152

CONNECTOR, ELEC

BLOCK, connector

1шт.

5

S72157

PLUG

BLOCK, connector

1шт.

6

S72216

ROD, CONNECTING

BLOCK, connector

1шт.

7

S72172

ROD, CONNECTING

BLOCK, connector

1шт.

8

S226675

ELECTRICAL WIRE

WIRE, jumper - 16 gauge wire x 16" long - (Used as ground wire)

3шт.

9

REF

INSTRUCTION

VALVE, drive range solenoid - (For breakdown, see Figure 257)

1шт.

10

S223612

WIRE, jumper - 12 gauge wire x 6" long - (Used as ground wire)

1шт.

11

S96652

SWITCH, magnetic relay

1шт.

S7380

WASHER

flat - 1/4"

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

12

S224617

WIRE, jumper - 14 gauge wire x 10" long

1шт.

13

S203189

HORN

1шт.

14

S98937

SWITCH, air pressure

1шт.

15

REF

INSTRUCTION

SWITCH, filter indicator - (Furnished with hydraulic oil filter, see item 4 on Figure 223)

2шт.

16

S73386

FASTENER

TIE, cable

8шт.

17

S85577

CLAMP

3шт.

S7395

WASHER

flat - 1/2"

3шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

3шт.

18

REF

INSTRUCTION

VALVE, drive lock solenoid - (For breakdown, see Figure 159)

2шт.

19

S226675

ELECTRICAL WIRE

WIRE, jumper - 16 gauge wire x 16" long - (Used as ground wire)

1шт.

20

REF

INSTRUCTION

VALVE, fast hoist solenoid - (For breakdown, see Figure 257)

1шт.

21

S223917

SWITCH, pressure

2шт.

S49943

TERMINAL CONNECTOR

CONNECTOR - (Switch to button) - (Not illustrated)

2шт.

S70739

GROMMET

rubber - (In floor) - (Not illustrated)

1шт.

22

S77909

CONNECTOR, ELEC

CONNECTOR

1шт.

23

REF

INSTRUCTION

HEATER - (For breakdown, see Figure 307)

1шт.

24

REF

INSTRUCTION

SWITCH, heater - (Furnished with heater, see item 12 on Figure 307)

1шт.

25

REF

INSTRUCTION

SWITCH, fast hoist - (For switch, see item 10 on Figure 281)

1шт.

S73386

FASTENER

TIE, cable - (Not illustrated)

3шт.

26

S75983

ROD, CONNECTING

BLOCK, connector

1шт.

27

S49943

TERMINAL CONNECTOR

CONNECTOR, male electrical

2шт.

28

S210328

WIRE, jumper - 16 gauge x 5" long

6шт.
