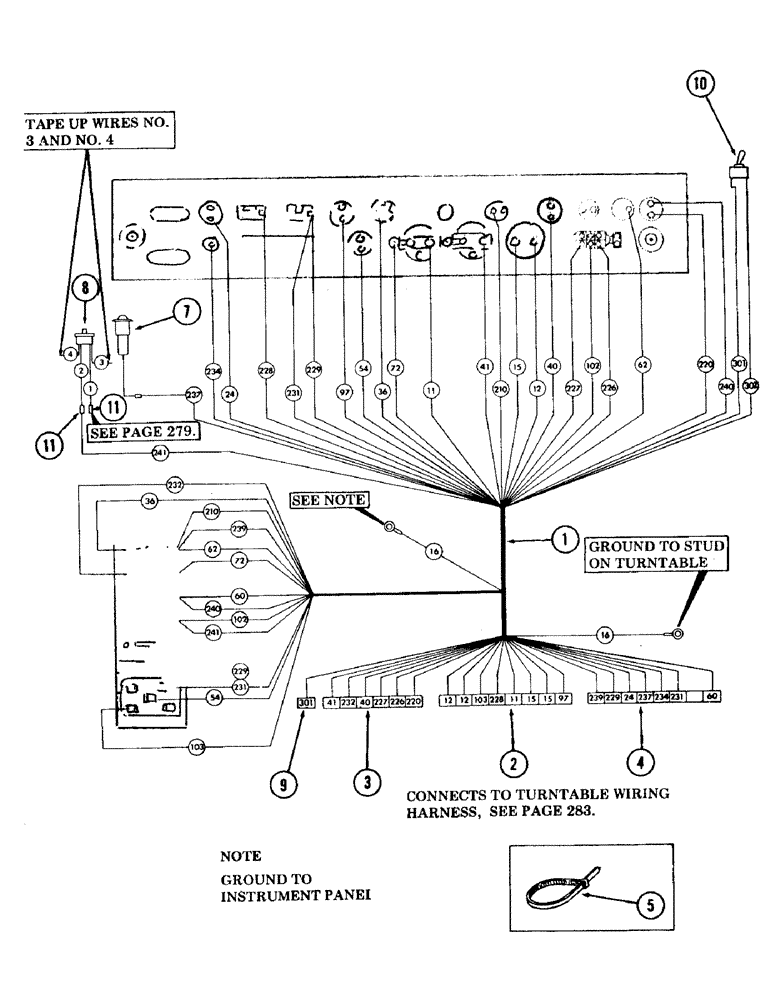

Запчасти Case 120 (281) - INSTRUMENT PANEL WIRING HARNESS (55) - ELECTRICAL SYSTEMS

1

S607360

HARNESS

WIRING HARNESS, instrument panel

1шт.

2

S72172

ROD, CONNECTING

BLOCK, connector

1шт.

3

S72216

ROD, CONNECTING

BLOCK, connector

1шт.

4

S72217

ROD, CONNECTING

BLOCK, connector

1шт.

5

S73386

FASTENER

TIE, cable

1шт.

6

S77405

CLAMP

1" diameter - (Not illustrated)

1шт.

7

S213081

LIGHT

filter dirty warning

1шт.

S103734

BULB

1шт.

8

REF

INSTRUCTION

SWITCH, drive range lock, - (For switch, see item 2 on Figure 249)

1шт.

S73386

FASTENER

TIE, cable

2шт.

9

S75982

BODY

BLOCK, connector

1шт.

10

S88636

IGNITION SWITCH

SWITCH, fast hoist toggle

1шт.

S69710

GROMMET

- (Not illustrated)

1шт.

11

S49943

TERMINAL CONNECTOR

CONNECTOR, male electrical

2шт.
