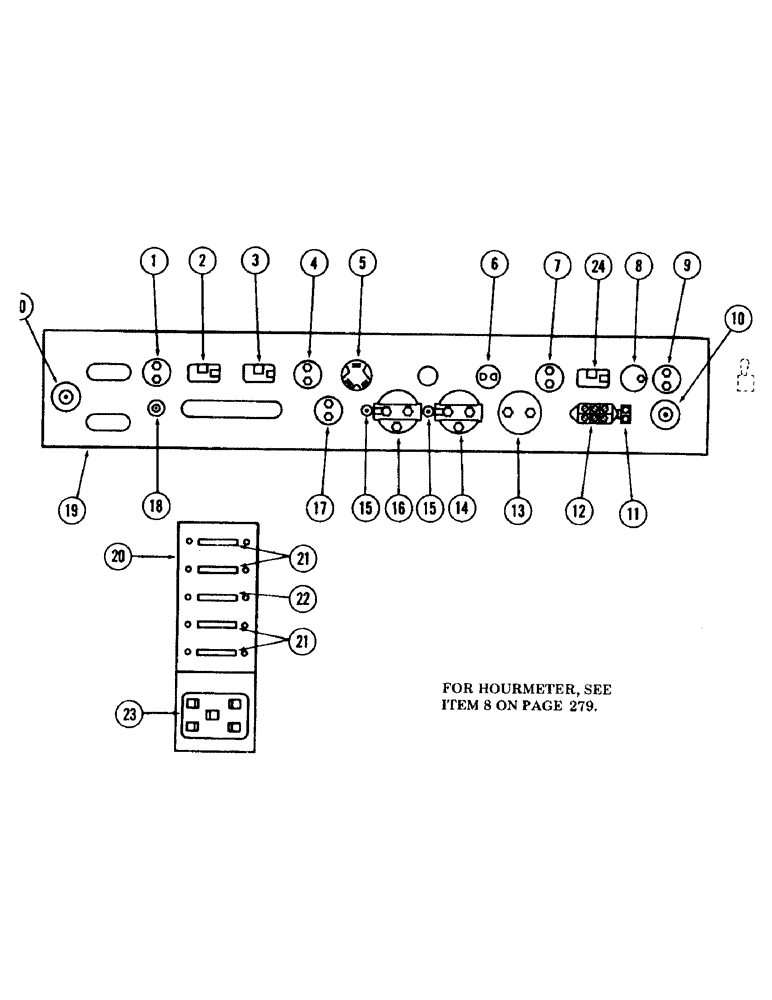

Запчасти Case 120 (277) - INSTRUMENT PANEL, GAUGES AND ATTACHING PARTS (55) - ELECTRICAL SYSTEMS

1

S63242

BUTTON

horn

1шт.

2

S88636

IGNITION SWITCH

SWITCH, drive range

1шт.

3

S105662

SWITCH, drive lock

1шт.

4

S63242

BUTTON

shut off

1шт.

5

S76366

SWITCH

ignition

1шт.

6

S16866

SWITCH

panel light

1шт.

7

S63242

BUTTON

cold start - (For Optional cold weather starting kit, see Figure 301)

1шт.

8

REF

INSTRUCTION

SWITCH, wiper - (Furnished with wiper, see item 7 on Figure 83)

1шт.

9

S63242

BUTTON

auxiliary pump

1шт.

10

S96650

LIGHT

panel - (Furnished with wires)

2шт.

S70973

TERMINAL CONNECTOR

CONNECTOR, eye - (Attaches to existing wire on one panel light) - (Not illustrated)

1шт.

11

S49918

BREAKER

circuit

1шт.

S7338

WASHER

lock - No. 6 - (Internal tooth)

2шт.

S17261

NUT

- No. 6 NC

2шт.

S7340

WASHER, LOCK

- No. 10 - (Internal tooth)

2шт.

S17276

NUT

- No. 10 NF

2шт.

12

S221945

SWITCH

clutch

1шт.

13

S90116

AMMETER

1шт.

14

S27827M2

X

GAUGE, oil pressure

1шт.

15

S218800

RESISTOR

2шт.

S7340

WASHER, LOCK

- No. 10 - (Internal tooth)

2шт.

S17276

NUT

- No. 10 NF

2шт.

16

S27824M2

X

GUAGE, engine temperature

1шт.

17

S63242

BUTTON

starter

1шт.

18

S213081

LIGHT

warning - (Low air pressure)

1шт.

S103734

BULB

1шт.

19

REF

INSTRUCTION

PANEL, instrument - (For panel and attaching parts, see Figure 275)

1шт.

20

S213686

HOLDER

fuse

1шт.

S14510

SCREW, machine - No. 6 NC x 5/8"

2шт.

S2128

LOCK WASHER

WASHER, lock - No. 6

2шт.

S17261

NUT

- No. 6 NC

2шт.

21

S66917

FUSE

- 15 AMP

4шт.

22

S92483

FUSE

- 7.5 AMP

1шт.

23

S226714

RELAY

1шт.

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

24

S105662

SWITCH, anti-drift

1шт.
