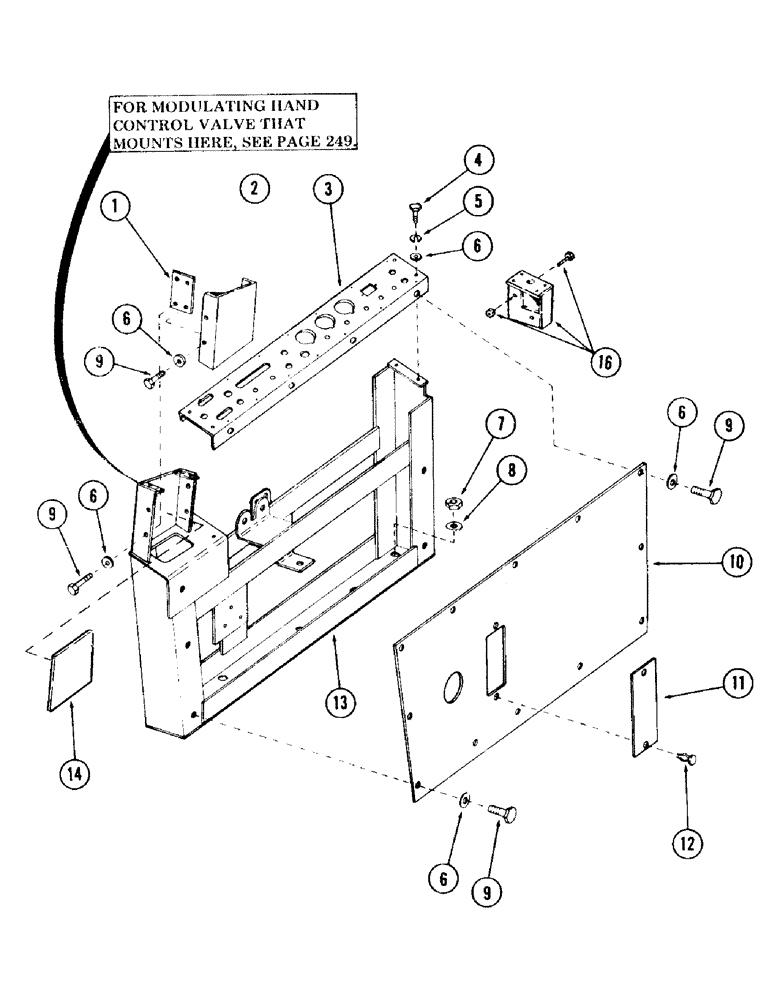

Запчасти Case 120 (275) - INSTRUMENT PANEL AND ATTACHING PARTS (55) - ELECTRICAL SYSTEMS

1

S99506

BAR

2шт.

2

S233606

CHANNEL

1шт.

3

S607330

PANEL

instrument top

1шт.

4

S2349

BOLT

CPSW - 1/4" NC x 1/2" gr 5

4шт.

5

S4395

WASHER, LOCK

- 1/4"

4шт.

6

S7380

WASHER

flat - 1/4"

1шт.

7

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

8

S95569

WASHER

flat - 1/2"

4шт.

9

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

1шт.

10

S508266

PANEL, side

1шт.

11

S92342

DOOR, fuse box

1шт.

12

S223888

CLAMP

2шт.

13

S611685

FRAME

instrument panel

1шт.

14

S509769

INSULATOR

INSULATION

2шт.

15

S95517

ADHESIVE

- (32 oz. cartridge) - (Not illustrated)

2шт.

16

S229055

BRACKET

fast hoist override switch mounting

1шт.

S2360

SCREW

CPSW - 1/4" NC x 7/8" gr 5

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.
