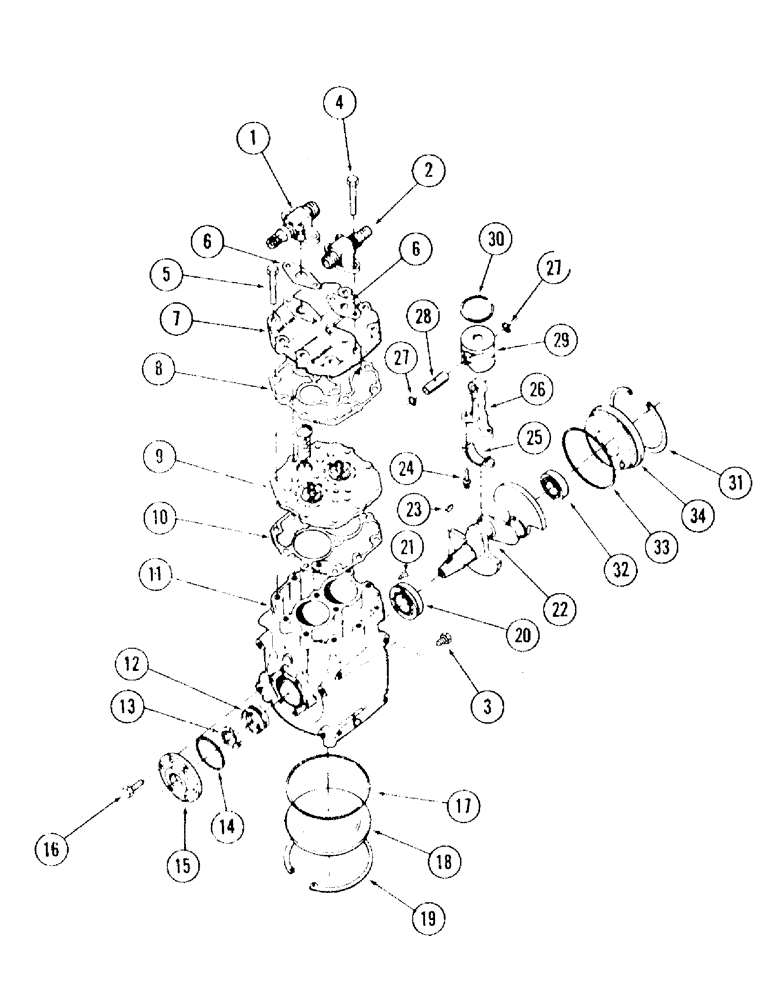

Запчасти Case 120 (315) - AIR CONDITIONER COMPRESSOR (50) - CAB CLIMATE CONTROL

S510605

COMPRESSOR

air conditioner

1шт.

1

S112412

VALVE, suction

1шт.

2

S112413

VALVE, discharge

1шт.

3

S112417

PLUG, oil filler

1шт.

4

NSS

NOT SOLD SEPARAT

CPSW

4шт.

5

NSS

NOT SOLD SEPARAT

CPSW

8шт.

6

NSS

NOT SOLD SEPARAT

GASKET

2шт.

7

NSS

NOT SOLD SEPARAT

HEAD, air compressor

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE, valve

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING, air compressor

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

"O" RING

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE, seal

1шт.

16

NSS

NOT SOLD SEPARAT

CPSW

6шт.

17

NSS

NOT SOLD SEPARAT

"O" RING, bottom plate

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE, bottom

1шт.

19

NSS

NOT SOLD SEPARAT

RETAINER, bottom plate

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG

1шт.

22

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

23

NSS

NOT SOLD SEPARAT

KEY, Woodroof

1шт.

24

NSS

NOT SOLD SEPARAT

CPSW, bearing cap

4шт.

25

NSS

NOT SOLD SEPARAT

CAP, bearing

2шт.

26

NSS

NOT SOLD SEPARAT

ROD, connecting

2шт.

27

NSS

NOT SOLD SEPARAT

RETAINER, wrist pin

4шт.

28

NSS

NOT SOLD SEPARAT

PIN, wrist

2шт.

29

NSS

NOT SOLD SEPARAT

PISTON

2шт.

30

NSS

NOT SOLD SEPARAT

RING, piston

4шт.

31

NSS

NOT SOLD SEPARAT

RETAINER, seal plate

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING

1шт.

33

NSS

NOT SOLD SEPARAT

"O" RING, seal plate

1шт.

34

NSS

NOT SOLD SEPARAT

PLATE, seal

1шт.

35

S112414

KIT, gasket - (Includes items 8 and 10)

1шт.

36

S112415

KIT, valve plate - (Includes items 8, 9 and 10)

1шт.

37

S112416

KIT, seal - (Includes items 12, 13, 14 and 15)

1шт.
