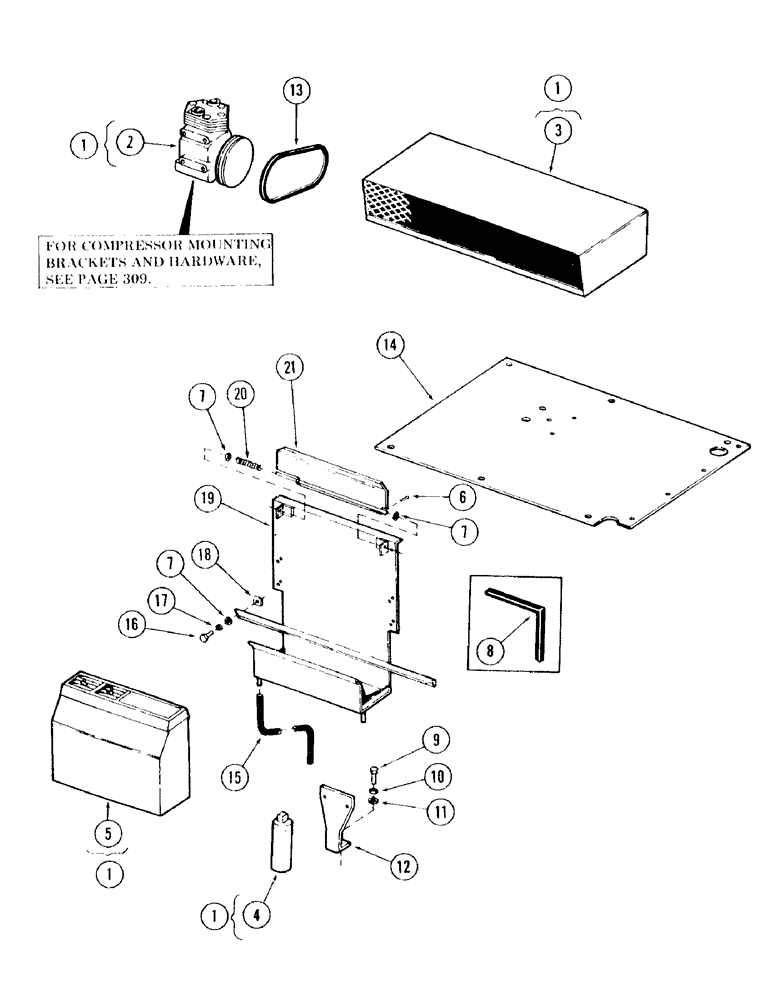

Запчасти Case 120 (311) - AIR CONDITIONER AND ATTACHING PARTS (50) - CAB CLIMATE CONTROL

1

S507872

KIT, air conditioner, 24 volt (Includes hoses and fittings) (For replacement or repairs of these items contact your nearest Frigiking Dealer)

1шт.

2

REF

INSTRUCTION

COMPRESSOR

1шт.

3

REF

INSTRUCTION

CONDENSOR

1шт.

4

REF

INSTRUCTION

DRYER

1шт.

5

REF

INSTRUCTION

EVAPORATOR

1шт.

6

S4600

SPLIT PIN

PIN, cotter - 1/16 inch x 1/2 inch long

1шт.

7

S7380

WASHER

flat - 9/32 inch

6шт.

8

S200069

SEAL

MOLDING, rubber (Bulk) - 1 piece x 12 inch long (Glue molding over edge of top and side heater shrouds where hoses pass through)

1шт.

9

S2465

BOLT (MACHINE)

CPSW - 1/2 inch NC x 1 inch gr 5

1шт.

10

S4399

WASHER

lock - 1/2 inch

1шт.

11

S7395

WASHER

flat - 1/2 inch

1шт.

12

S224300

BRACKET, dryer mounting

1шт.

13

S83343

SET OF 2 BELTS,0.50" W x 40.30" L

SET OF BELTS , V-Belt (Matched set of 2) 0.50" W x 40.30" L

1шт.

14

S605774

PLATE

condensor mounting

1шт.

15

S104008

HOSE, low pressure (Bulk) - 2 pieces, 3/8 inch ID x 36 inch long (Use for evaporator drain) 0.312" ID x 0.437" OD

1шт.

16

S2350

MUFFLER

CPSW - 1/4 inch NC x 3/4 inch gr 5

4шт.

17

S4895

WASHER, lock - 1/4 inch

4шт.

18

S97358

BLOCK

4шт.

19

S605724

BRACKET - (Mounts to back of cab below window)

1шт.

20

S16234

SPRING

1шт.

21

S508078

SHROUD, air deflector

1шт.
