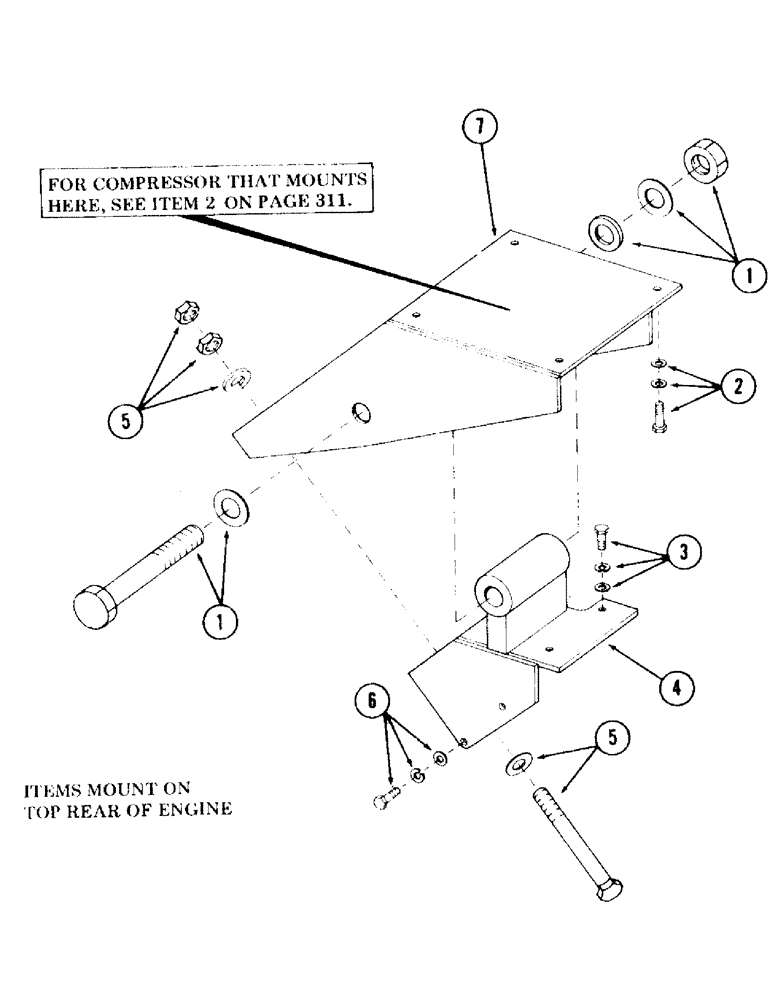

Запчасти Case 120 (309) - COMPRESSOR, MOUNTING BRACKETS AND HARDWARE FOR, AIR CONDITIONER (50) - CAB CLIMATE CONTROL

1

231-14012

LOCK NUT,3/4"-10, GB

NUT, self locking - 3/4 inch NC

1шт.

S84752

WASHER

flat - 3/4 inch

2шт.

S97970

BUSHING

1шт.

S84022

CPSW - 3/4 inch NC x 5-1/2 inch gr 5

1шт.

2

S2403

BOLT

CPSW - 3/8 inch NC x 1-1/2 inch gr 5 (Mounts, Serial Range: compressor-bracket)

4шт.

S4397

WASHER

lock - 3/8 inch

4шт.

S7387

WASHER

flat - 3/8 inch

4шт.

3

S97972

CPSW - 7/16 inch NC x 1-3/8 inch gr 5

2шт.

S4398

WASHER, LOCK

- 7/16 inch

2шт.

S7391

WASHER

flat - 7/16 inch

2шт.

4

S508326

BRACKET

1шт.

5

S87868

CPSW - 5/8 inch NC x 6 inch gr 5

1шт.

S7403

WASHER

flat - 5/8 inch

1шт.

S97969

WASHER, spherical - 5/8 inch

1шт.

S4266

NUT

jam - 5/8 inch NC

2шт.

6

S2056

CAPSCREW

CPSW - 3/8 inch NF x 4-3/4 inch gr 5

2шт.

S4397

WASHER

lock - 3/8 inch

2шт.

S7387

WASHER

flat - 3/8 inch

2шт.

7

S508327

BRACKET

1шт.
