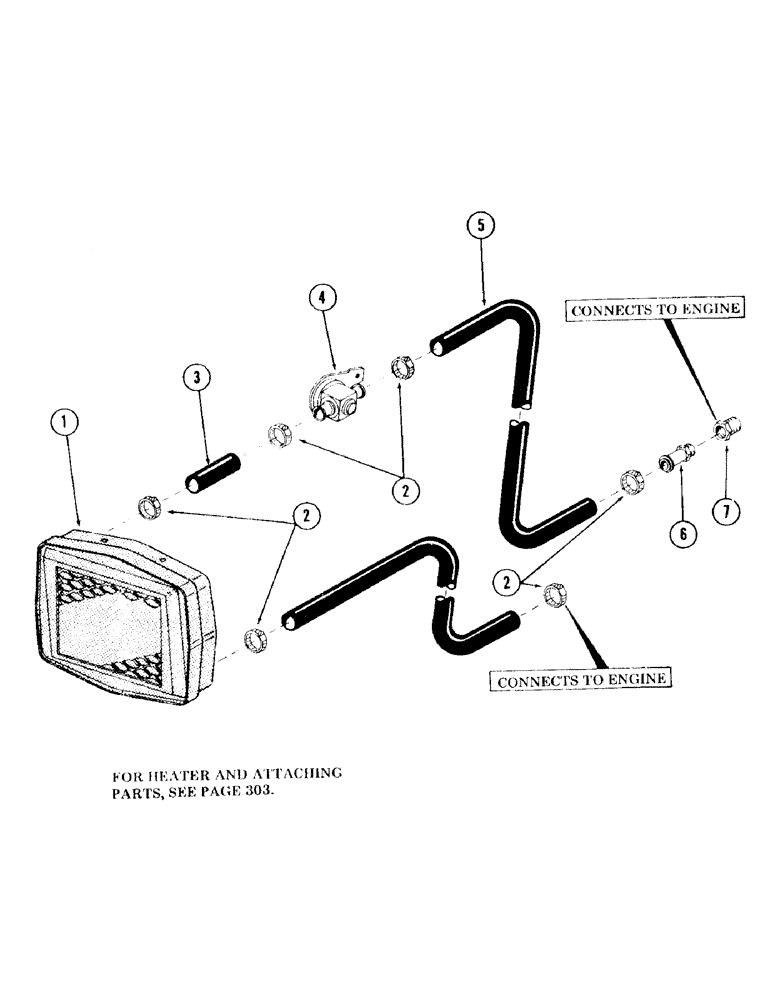

Запчасти Case 120 (305) - HEATER AND HOSES (50) - CAB CLIMATE CONTROL

1

REF

INSTRUCTION

HEATER - (For breakdown, see Figure 307)

1шт.

2

S10871

HOSE CLAMP

CLAMP, hose

6шт.

3

S49608

HOSE

low pressure (Bulk) - 1 piece - 5/8 inch OD x 2 inches long, (Used on units with serial numbers 65521 thru 6287228)

1шт.

S49608

HOSE

low pressure (Bulk) - 1 piece - 5/8 inch OD x 4 inches long - (Used units with serial numbers 6287229 and after)

1шт.

4

S223937

VALVE

heater

1шт.

5

S49608

HOSE

low pressure (Bulk) - 2 pieces - 5/8 inch OD x 200 inches long

1шт.

6

S64491

CONNECTOR, ELEC

INSERT, hose - 5/8 inch ID hose x 1/2 inch, 14 male

1шт.

7

S7773

REDUCER

BUSHING, reducing - 3/4 inch, 14 NPT male x 1/2 inch - 14 NPT female

1шт.
