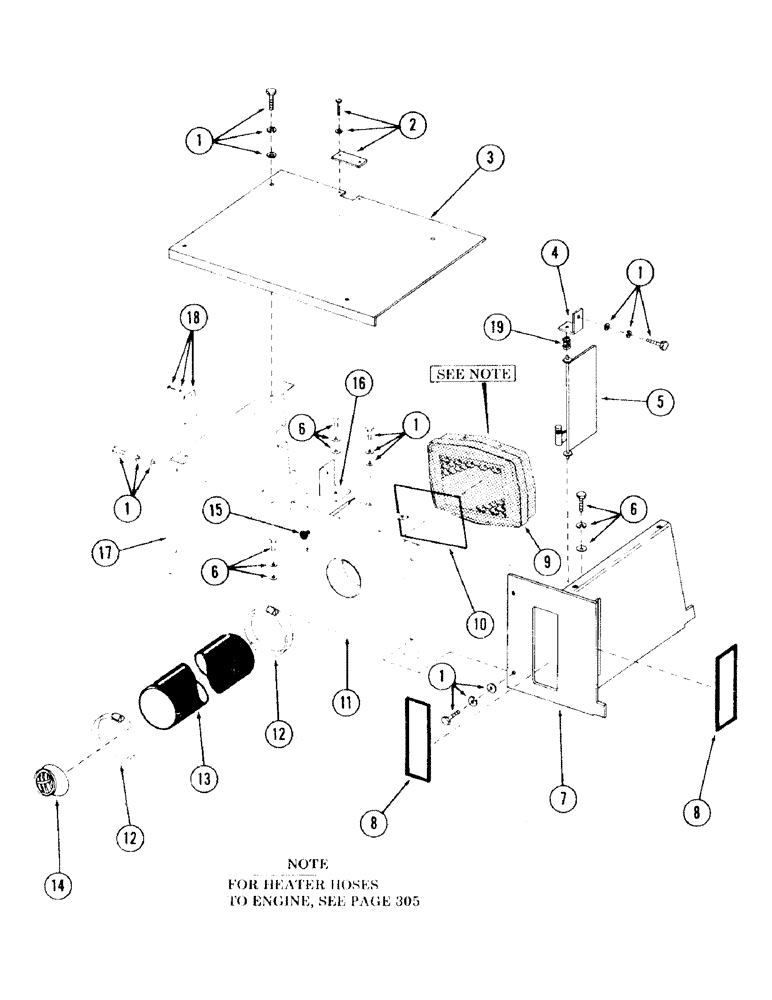

Запчасти Case 120 (303) - HEATER AND ATTACHING PARTS (50) - CAB CLIMATE CONTROL

1

S2350

MUFFLER

CPSW - 1/4 inch NC x 3/4 inch gr 5

1шт.

S4395

WASHER, LOCK

- 1/4 inch

1шт.

S7380

WASHER

flat - 1/4 inch

1шт.

2

S97503

COVER

1шт.

S7360

SCREW, self tapping - No. 8 x 1/4 inch

2шт.

S80894

WASHER, internal tooth - No. 8

2шт.

3

S507916

COVER

1шт.

4

S230448

ANGLE - (Used on units with serial number 65521 thru 6287228)

1шт.

S232244

BRACKET

ANGLE - (Used on units with serial number 6287229 and after)

1шт.

5

S507917

DOOR, vent - (Used on units with serial number 65521 thru 6287228)

1шт.

S511391

DOOR, vent - (Used on units with serial number 6287229 and after)

1шт.

6

S2465

BOLT (MACHINE)

CPSW - 1/2 inch NC x 1 inch gr 5, (Mounts, Serial Range: shrouds-floor)

1шт.

S4399

WASHER

lock - 1/2 inch

1шт.

S7395

WASHER

flat - 1/2 inch

1шт.

7

S605516

SHROUD - (Used on units with serial number 65521 thru 6287228)

1шт.

S610782

SHROUD - (Used on units with serial number 6287229 and after)

1шт.

8

S76711

SEAL

MOLDING, rubber - 2 pieces, 54 inches long

1шт.

9

REF

INSTRUCTION

HEATER - (For breakdown, see Figure 307)

1шт.

10

S76711

SEAL

MOLDING, rubber - 1 piece, 36 inches long

1шт.

11

S605515

SHROUD

1шт.

12

S10884

CLAMP

hose

2шт.

13

S97045

HOSE

low pressure (Bulk) - 1 piece 5 inch ID x 24 inches long

1шт.

14

S223939

LOUVER

1шт.

15

S223938

CABLE, temperature control

1шт.

16

S97031

BRACKET

1шт.

17

S507918

SHROUD - (Used on units with serial number 65521 thru 6287228)

1шт.

S511221

SHROUD - (Used on units with serial number 6287229 and after)

1шт.

18

S97502

COVER

1шт.

S7630

SCREW

self tapping - No. 8 x 1/4"

2шт.

S80894

WASHER, internal tooth - No. 8

2шт.

19

S16234

SPRING

1шт.
