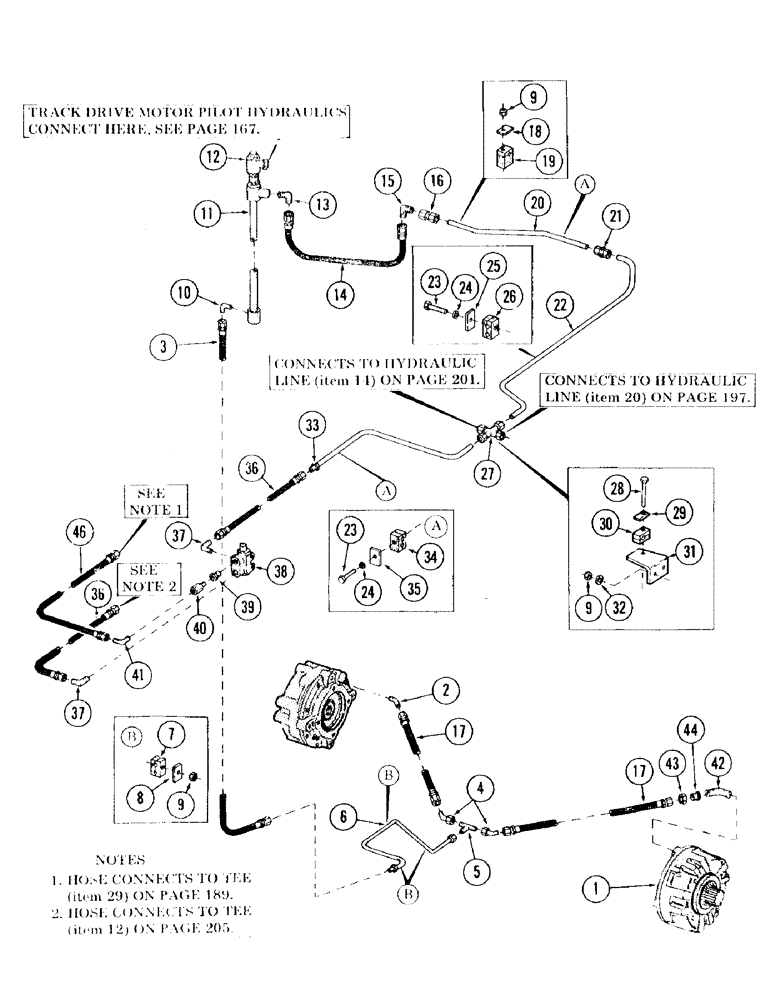

Запчасти Case 120 (169) - TRACK DRIVE BRAKE HYDRAULICS, USED ON UNITS WITH SERIAL NO. 65521 THRU 6287228 (48) - TRACKS & TRACK SUSPENSION

1

REF

INSTRUCTION

BRAKE, track drive - (For breakdown, see Figure 125 or 127)

2шт.

2

S63422

ELBOW

90 degrees - (1/4" tube) - 7/16" - 20 male x 1/4" NPT male - 37 degrees flared

1шт.

3

S77467

HOSE

high pressure - 1/4" ID x 38" long - (With 7/16" - 20 female pressed on couplings)

1шт.

4

700711969

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

90 degrees swivel - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 female - (37 degrees flared)

2шт.

5

S60496

TEE

- (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male x 7/16" - 20 male - 37 degrees flared

1шт.

6

S223648

LINE, hydraulic 0.25" OD

1шт.

7

S225955

CLAMP

wood

3шт.

8

S96791

BAR

3шт.

9

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

10

S63425

ELBOW

90 degrees - (1/4" tube) - 7/16" - 20 male x 1/8" NPT male

1шт.

11

REF

INSTRUCTION

SWIVEL, inner - (See item 5 on Figure 109)

1шт.

12

REF

INSTRUCTION

SWIVEL, hydraulic service - (For breakdown, see Figure 241)

1шт.

13

S7734

ELBOW

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

1шт.

14

S227395

HOSE

high pressure - 3/8" ID x 21" long - (With 9/16" - 18 female pressed on couplings)

1шт.

15

S6347

ELBOW, 90 degrees - (3/8" tube) - 9/16" - 18 male x 1/2" NPT male - 37 degrees flared

1шт.

16

S106687

CONNECTOR, ELEC

CONNECTOR - (1/2" tube) - 3/4" - 16 female x 1/2" NPT female

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

1шт.

S96912

SLEEVE

- (For 1/2" tube)

1шт.

17

S227393

HOSE, high pressure - 3/8" ID x 48" long - (With 3/4" - 16 female pressed on couplings)

2шт.

18

S96088

BAR

1шт.

19

S96963

CLAMP

wood

1шт.

20

S224837

LINE

hydraulic

1шт.

21

S97952

UNION

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

22

S226660

LINE

hydraulic

1шт.

23

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

3шт.

24

S4399

WASHER

lock - 1/2"

4шт.

25

S99763

BAR

1шт.

26

S226703

CLAMP, wood

1шт.

27

S97927

CROSS - (1/2" tube) - all fittings 3/4" - 16 male

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

4шт.

S96912

SLEEVE

- (For 1/2" tube)

4шт.

28

S2407

BOLT

CPSW - 3/8" NC x 2-1/4" gr 5

1шт.

29

S104753

BAR

1шт.

30

S104744

CLAMP, wood

1шт.

31

S226603

BRACKET

1шт.

32

S95569

WASHER

flat - (Hardened) - 1/2"

2шт.

33

S226658

LINE

hydraulic

1шт.

34

S224806

CLAMP, wood

2шт.

35

S97929

BAR

2шт.

36

S227390

HOSE, high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

2шт.

37

S7731

ELBOW

90 degrees - (1/2" tube) - 3/4" 16 male x 1/2" NPT male

2шт.

38

REF

INSTRUCTION

VALVE, track brake control - (For breakdown, see Figure 259)

1шт.

39

S7772

BUSHING

REDUCER, bushing - 1/2" - 14 NPT male x 3/8" - 18 NPT female

1шт.

40

S78869

VALVE

check

1шт.

41

S7734

ELBOW

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male

2шт.

42

S63421

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

1шт.

43

S6275

NUT

- (1/2" tube) - 3/4" - 16 female

1шт.

44

S101829

REDUCER

ADAPTER, reducing - (1/2" x 1/4" tube reduction) - 7/16" - 20 male - 37 degrees flared

1шт.

45

S227398

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 48" long - (With 3/4" - 16 female pressed on couplings)

2шт.

46

S227390

HOSE, high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

1шт.
