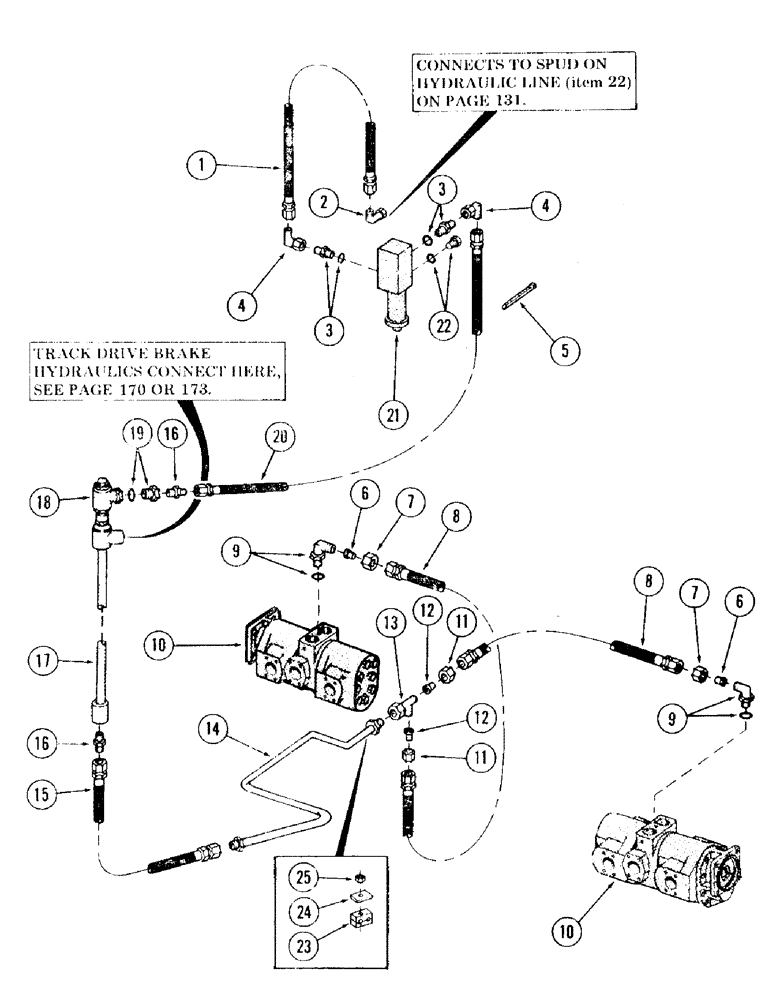

Запчасти Case 120 (167) - TRACK DRIVE MOTOR PILOT HYDRAULICS (48) - TRACKS & TRACK SUSPENSION

1

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

1шт.

2

S10357

ELBOW

90 degrees swivel - (3/4" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

1шт.

3

S84751

HYD CONNECTOR

CONNECTOR - (1/2" tube) - 9/16" - 18 male x 3/4" - 16 male - 37 degrees flared

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

4

S10357

ELBOW

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

5

S73386

FASTENER

TIE, cable

1шт.

6

S101834

REDUCER

ADAPTER, reducing - (3/8" x 1/4" tube reduction) - 7/16" - 20 male

2шт.

7

S6274

NUT

- (3/8" tube) - 9/16" - 18 female

2шт.

8

S77467

HOSE

high pressure - 1/4" ID x 38" long - (7/16" - 20 female pressed on couplings)

2шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

10

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 229)

2шт.

11

S6275

NUT

- (1/2" tube) - 3/4" - 16 female

2шт.

12

S101829

REDUCER

ADAPTER, reducing - (1/2" x 1/4" tube reduction) - 7/16" - 20 male

2шт.

13

S60461

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female x 3/4" - 16 male - 37 degrees flared

1шт.

14

S225951

LINE, hydraulic 0.5" OD

1шт.

15

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

1шт.

16

S101310

ADAPTER

- (1/2" tube) - 3/4" - 16 male x 1/4" - 18 NPT male - 37 degrees flared

2шт.

17

REF

INSTRUCTION

SWIVEL, inner - (See item 5 on Figure 109)

1шт.

18

REF

INSTRUCTION

SWIVEL, service hydraulic - (For breakdown, see Figure 241)

1шт.

19

S96937

ADAPTER, straight - ( 1/4" tube) - 1/4" - 18 NPT female x 7/16" - male - 37 degrees flared

1шт.

S6057

O-RING

"O" RING - .351" ID x .495" OD

1шт.

20

S11227

HOSE

high pressure - 3/8" ID x 36" long - (With 3/4" - 16 female pressed on couplings)

1шт.

21

REF

INSTRUCTION

VALVE, solenoid control - (For breakdown, see Figure 257)

1шт.

S2361

BOLT

CPSW - 1/4" NC x 4" gr 5

4шт.

S17082

NUT

self locking - 1/4" NC

4шт.

22

S8980

PLUG

- (3/8" tube) - 9/16" - 18 male

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

23

S231750

CLAMP

wood

1шт.

24

S96791

BAR

1шт.

25

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.
