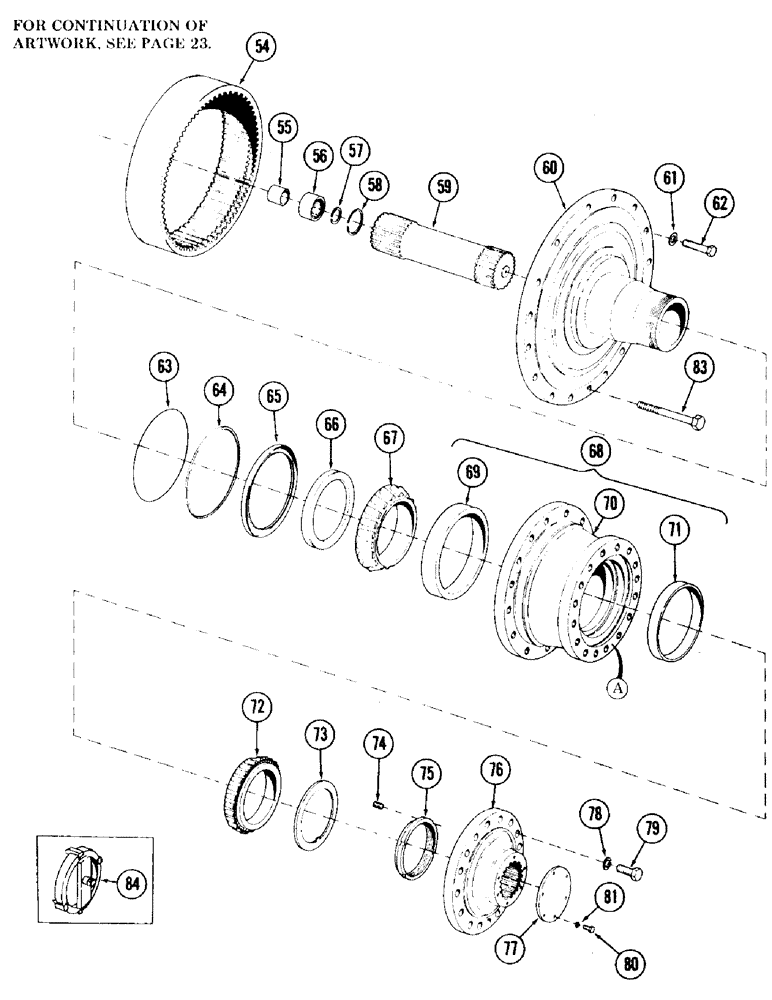

Запчасти Case 120 (027) - TRACK DRIVE TRANSMISSION (48) - TRACKS & TRACK SUSPENSION

54

S62010

GEAR, planetary ring - (63 tooth)

1шт.

55

S61947

BEARING, inner race output shaft

1шт.

56

S61946

BEARING, output shaft

1шт.

57

S61983

RING, snap - bearing retainer

1шт.

58

S61959

RING, snap - output shaft

1шт.

59

S61995

SHAFT

output

1шт.

60

S61991

SPINDLE, hub bearing

1шт.

61

S61951

WASHER, Serial Range: spindle-case

8шт.

62

S61936

BOLT

CPSW, Serial Range: spindle-case

8шт.

63

S61943

"O" RING, Serial Range: spindle-hub

1шт.

64

S61942

RING, teflon -, Serial Range: spindle-hub

1шт.

65

S61945

SEAL, oil - hub inner bearing

1шт.

66

S61958

SLEEVE, hub bearing oil seal

1шт.

67

S61941

CONE, inner hub bearing

1шт.

68

S500501

HUB OUTPUT ASSEMBLY

1шт.

69

S61904

CUP, inner hub bearing

1шт.

70

NSS

NOT SOLD SEPARAT

HUB

1шт.

71

S61881

CUP, outer hub bearing

1шт.

72

S61940

CONE, outer hub bearing

1шт.

73

S108865

WASHER, hub bearing

1шт.

74

S108863

SCREW, set

3шт.

75

S108864

NUT, hub bearing adjusting

1шт.

76

S61992

FLANGE, drive

1шт.

77

S61990

COVER, drive flange

1шт.

78

S61952

WASHER, drive, Serial Range: flange-hub

16шт.

79

S61915

CPSW, drive, Serial Range: flange-hub

16шт.

80

S61914

CPSW, drive flange

6шт.

81

S61953

WASHER, drive flange

6шт.

82

S104939

SPARE PART

SILASTIC - (Replaces gaskets) - (Apply silastic gasket material around one mating surface only at reassembly where indicated by the letter "A")

1шт.

83

S97192

CPSW, mounts drive assembly to frame - 7/8" NC x 5" gr 5

8шт.

84

S230409

WRENCH, spanner

1шт.
