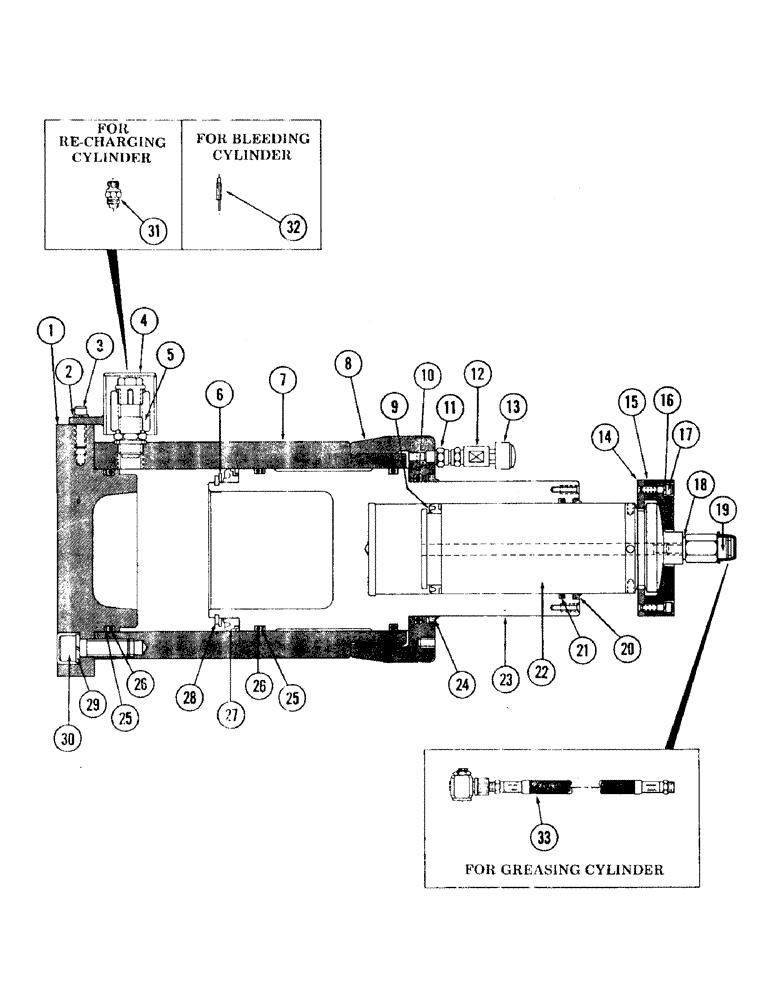

Запчасти Case 120 (015) - GAS ACTUATED TRACK ADJUSTING CYLINDER (48) - TRACKS & TRACK SUSPENSION

S63773

CYLINDER, gas actuated track adjusting

2шт.

1

S64773

BASE

1шт.

2

S64873

WASHER, lock

2шт.

3

S64832

SCREW - (Metric)

2шт.

4

S64768

CAP

1шт.

5

S77172

VALVE, gas

1шт.

6

S64814

RING, snap

1шт.

7

S64774

CYLINDER

1шт.

8

S64810

COVER

1шт.

9

S64928

SEAL

1шт.

10

S68888

"O" RING

1шт.

11

S64815

VALVE

1шт.

12

S70775

CONNECTOR

1шт.

13

S64937

BREATHER

1шт.

14

S64813

RING

1шт.

15

S64812

JOINT

1шт.

16

S64873

WASHER, lock

4шт.

17

S64839

SCREW - (Metric)

4шт.

18

S64826

GASKET

1шт.

19

S64816

FITTING

1шт.

20

S66497

RING, wiper

1шт.

21

S67373

"O" RING

1шт.

22

S64811

PISTON

hydraulic

1шт.

23

S64803

PISTON

gas

1шт.

24

S64967

RING, wiper

1шт.

25

S70910

RING

2шт.

26

S69873

"O" RING

3шт.

27

S64893

SEAL

1шт.

28

S64881

"O" RING

1шт.

29

S64873

WASHER, lock

16шт.

30

S64831

SCREW, - (Metric)

16шт.

31

S104539

ADAPTER, special - (Used for re-charging cylinder)

1шт.

32

S104540

PLUNGER - (Used for bleeding cylinder)

1шт.

33

S228284

EXTENSION, hose - (Used for greasing cylinder)

1шт.
