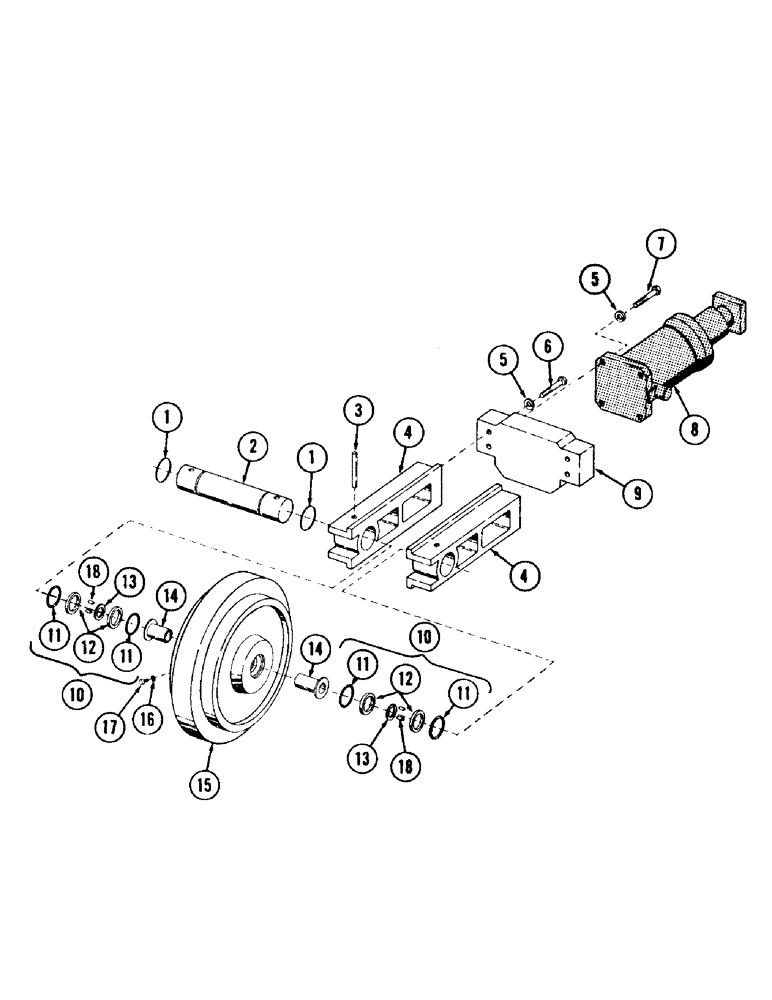

Запчасти Case 120 (013) - IDLER AND TRACK ADJUSTER (48) - TRACKS & TRACK SUSPENSION

S605052

IDLER AND TRACK ADJUSTER

2шт.

1

S63784

SEAL

2шт.

2

S63785

SHAFT

1шт.

3

S63807

PIN

2шт.

4

S63816

COLLAR

2шт.

5

S63776

WASHER

8шт.

6

S63775

CPSW - (Metric)

4шт.

7

S63772

CPSW - (Metric)

4шт.

8

REF

INSTRUCTION

CYLINDER, gas actuated track adjuster - (For breakdown, see Figure 15)

1шт.

9

S63777

PLATE

1шт.

10

S106531

KIT, seal

2шт.

11

NSS

NOT SOLD SEPARAT

RING

4шт.

12

NSS

NOT SOLD SEPARAT

SEAL

4шт.

13

S63783

RING

2шт.

14

S63809

BUSHING

2шт.

15

S63827

SHELL, idler

1шт.

16

S63778

GASKET, plug

1шт.

17

S63779

PLUG

1шт.

18

S63782

PIN

6шт.
