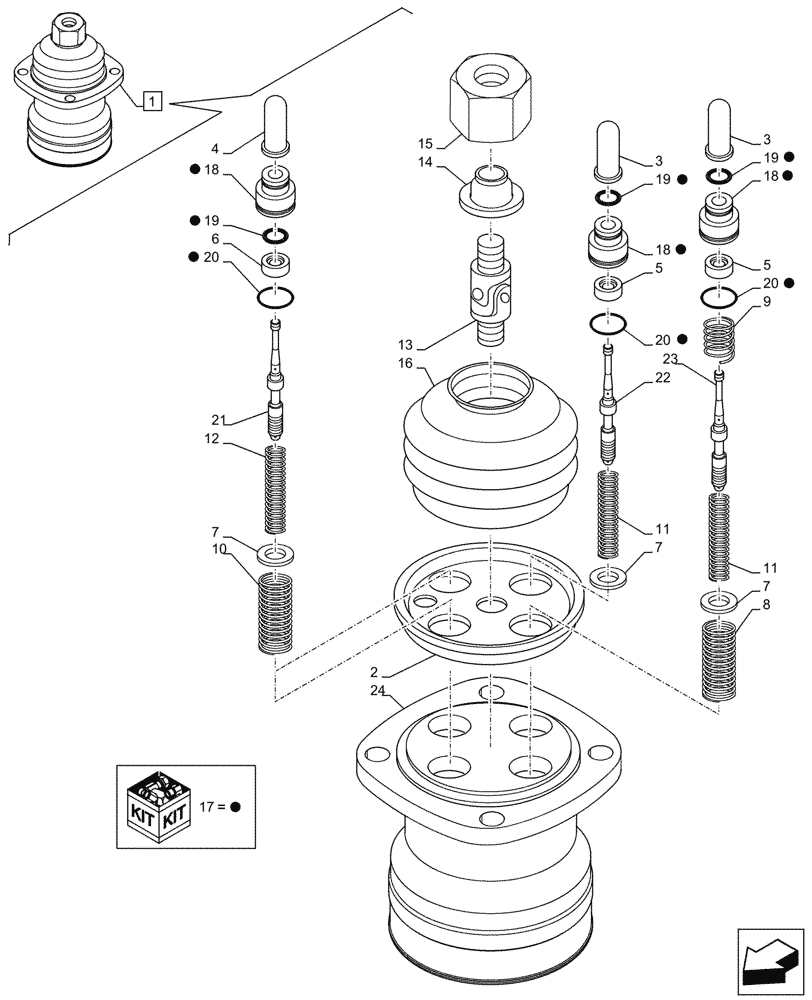

Запчасти Case CX750D RTC ME (35.355.100) - STD + VAR - 461561, 461563, 461557, 461865, 461868, 461869, 461871, 461863 - JOYSTICK VALVE, REMOTE CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KHJ37610

REMOTE CONTROL VALVE

ASSY, Incl 2 - 24

1шт.

2

LR00537

PLATE

1шт.

3

160026A1

THREADED ROD

2шт.

4

160027A1

THREADED ROD

2шт.

5

LR00538

SPRING SEAT

2шт.

6

LR00539

SPRING SEAT

2шт.

7

LA00057

SET OF WASHERS

4шт.

8

LG005470

SPRING

1шт.

9

LG005480

SPRING

1шт.

10

LG005490

SPRING

2шт.

11

LG00439

COMPRESSION SPRING

2шт.

12

LG00440

COMPRESSION SPRING

2шт.

13

155255A1

FLEXIBLE JOINT

1шт.

14

LR00540

PLATE

1шт.

15

LUC0051

SPECIAL NUT

1шт.

16

LQ000580

BELLOWS

1шт.

17

LZ014990

SEAL KIT

1шт.

18

LK006640

PLUG

4шт.

19

LE020890

SEAL

4шт.

20

LE013430

O-RING

4шт.

21

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
