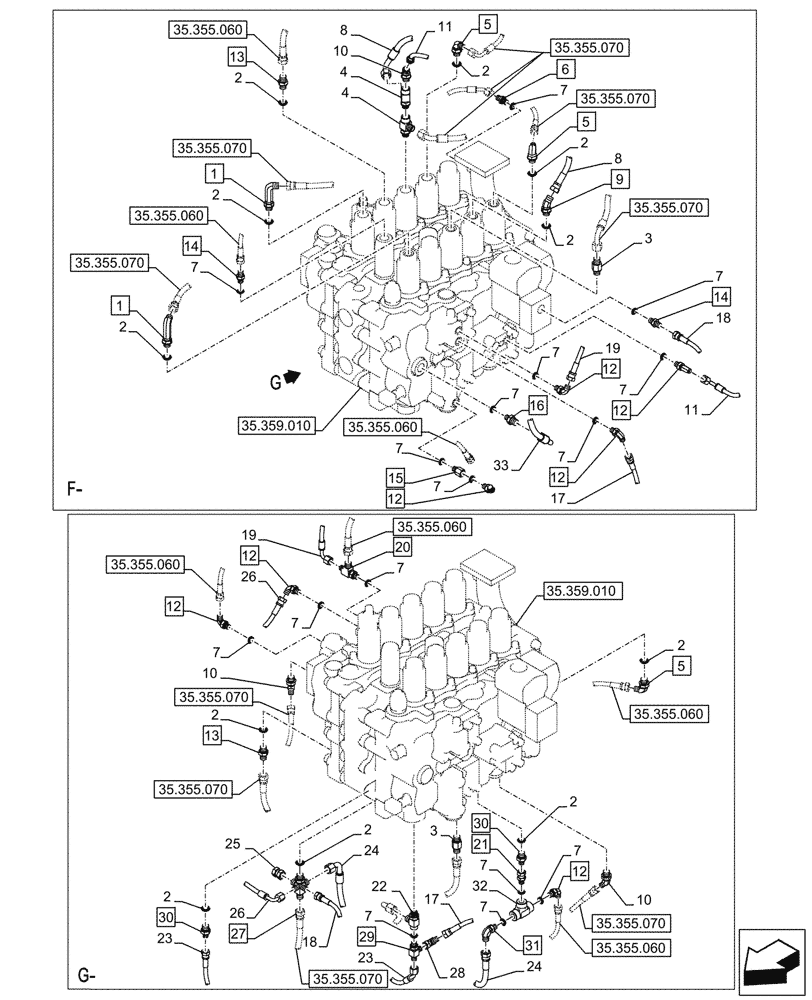

Запчасти Case CX750D RTC ME (35.355.080) - VAR - 461865, 461868 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ28820

ELBOW

ASSY, Incl 2 (Qty 1)

2шт.

2

150031A1

O-RING,10mm ID x 24mm OD

11шт.

3

KAJ2851

ADAPTER

1шт.

4

KHJ31880

TEE

2шт.

5

KHJ28690

ELBOW

ASSY, Incl 2 (Qty 1)

3шт.

6

162366A1

ADAPTER

ASSY, Incl 7 (Qty 1)

1шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

15шт.

8

KHJ2169

HOSE

9mm ID x 450mm

1шт.

9

KHJ28640

ELBOW

ASSY, Incl 2 (Qty 1)

1шт.

10

KHJ28730

ELBOW

3шт.

11

KHJ2146

HOSE

6mm ID x 1200mm

1шт.

12

KHJ28580

ELBOW

ASSY, Incl 7 (Qty 1)

7шт.

13

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 2 (Qty 1)

2шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 7 (Qty 1)

2шт.

15

KHJ13640

STUD

ASSY, Incl 7 (Qty 1)

1шт.

16

152747A1

ADAPTER

ASSY, Incl 7 (Qty 1)

1шт.

17

KHJ2394

HOSE ASSY.

6mm ID x 650mm

1шт.

18

KHJ2175

HOSE

6mm ID x 980mm

1шт.

19

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

20

167517A1

TEE

ASSY, Incl 7 (Qty 1)

1шт.

21

162654A1

HYD CONNECTOR

ASSY, Incl 7 (Qty 1)

1шт.

22

KHJ20680

TEE

1шт.

23

KHJ23500

HOSE

6mm ID x 380mm

1шт.

24

KHJ2200

HOSE

9mm ID x 480mm

1шт.

25

158843A1

PLUG

1шт.

26

KHJ2195

HOSE

6mm ID x 680mm

1шт.

27

KHJ1964

ADAPTER

ASSY, Incl 2 (Qty 1)

1шт.

28

KHJ1222

ELBOW

1шт.

29

159497A1

TEE

ASSY, Incl 7 (Qty 1)

1шт.

30

153378A1

ADAPTER

ASSY, Incl 2 (Qty 1)

2шт.

31

KHJ28710

ELBOW

ASSY, Incl 7 (Qty 1)

1шт.

32

KHJ17090

VALVE PRESSURE RELIE

1шт.

33

KHJ2037

HOSE

1шт.
