(35.355.070) - VAR - 461865, 461868 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX750D RTC ME (35.355.070) - VAR - 461865, 461868 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

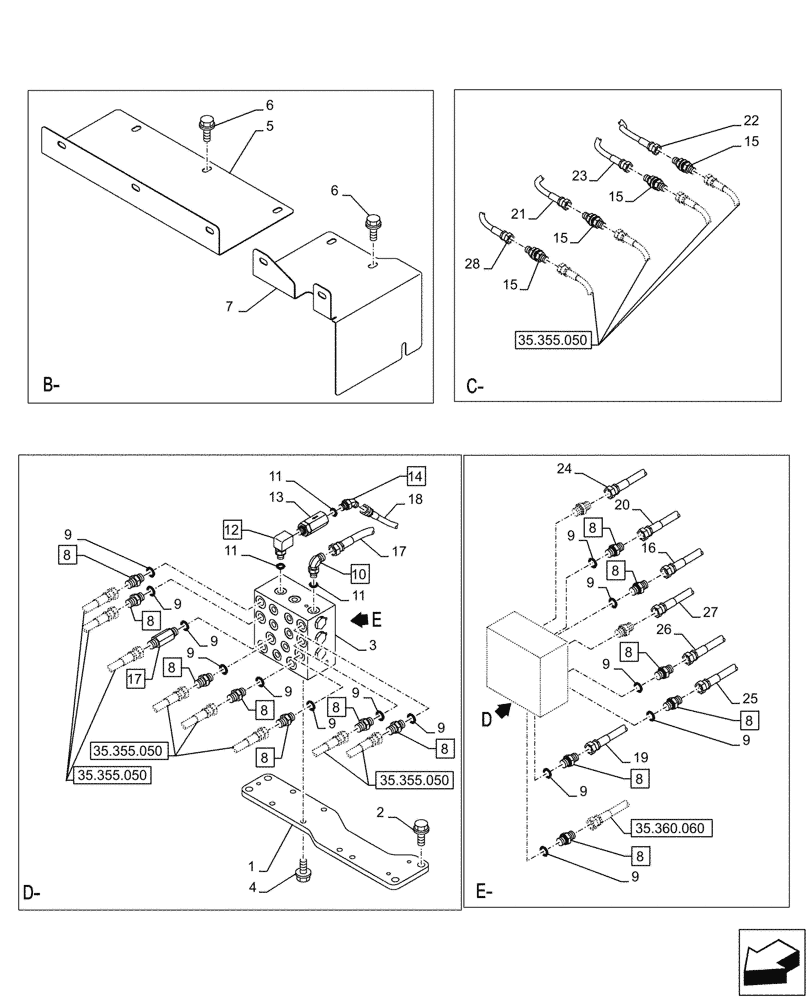

Схема запчастей Case CX750D RTC ME - (35.355.070) - VAR - 461865, 461868 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.355.050
15
9
17
22
8
24
3
27
9
21
7
8
11
8
9
15
8
9
8
20
9
8
9
8
17
28
16
14
1
6
23
9
11
8
19
8
8
9
9
2
9
4
15
12
26
8
9
9
25
6
13
8
9
15
10
5
18
11
9
8
35.355.050
35.355.050
35.355.050
35.360.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ24480

BRACKET, SUPPORTING

1шт.

2

166352A1

BOLT

M12 x 30mm

4шт.

3

KWJ12081

VALVE

1шт.

4

166347A1

BOLT,Sems, M10 x 30mm

4шт.

5

KWJ15550

COVER

1шт.

6

166351A1

BOLT,Sems, M10 x 20mm

6шт.

7

KWJ15560

COVER

1шт.

8

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 9

13шт.

9

150031A1

O-RING,10mm ID x 24mm OD

13шт.

10

KHJ28710

ELBOW

ASSY, Incl 11 (Qty 1)

1шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

12

KHJ0719

ELBOW

ASSY, Incl 11 (Qty 1)

1шт.

13

KHJ10790

FILTER SCREEN

1шт.

14

KHJ28630

ELBOW

ASSY, Incl 11 (Qty 1)

1шт.

15

159481A1

ADAPTER

2шт.

16

KHJ2384

HOSE

9mm ID x 3850mm, From Cushion Valve to Control valve

2шт.

17

KAJ2351

FITTING

ASSY, Incl 9

1шт.

18

KHJ17620

HOSE

6mm ID x 3050mm, From Cushion Valve to Control valve

1шт.

19

KHJ23400

HOSE

9mm ID x 3800mm, From Cushion Valve to Control valve

1шт.

20

KHJ37820

HOSE

9mm ID x 3700mm, From Cushion Valve to Control valve

1шт.

21

KHJ2078

HOSE

6mm ID x 2850mm, From control valve to adapter

1шт.

22

KHJ2147

HOSE,6.3 mm ID x 2700.00 mm

6mm ID x 2700mm, From control valve to Adapter

1шт.

23

KHJ2192

HOSE

6mm ID x 1580mm, From control valve to adapter

1шт.

24

KHJ2369

HOSE,9.5 mm ID x 2250.00 mm

9mm ID x 2250mm, From cushion valve to Control Valve

1шт.

25

KHJ2474

HOSE

9mm ID x 2250mm, From cushion valve to Control Valve

1шт.

26

KHJ2382

HOSE

9mm ID x 2300mm, From cushion valve to Control Valve

1шт.

27

KHJ2323

HOSE

9mm ID x 2200mm, From cushion valve to Control Valve

1шт.

28

KHJ2060

HOSE

6mm ID x 1700mm, From control valve to adapter

1шт.
