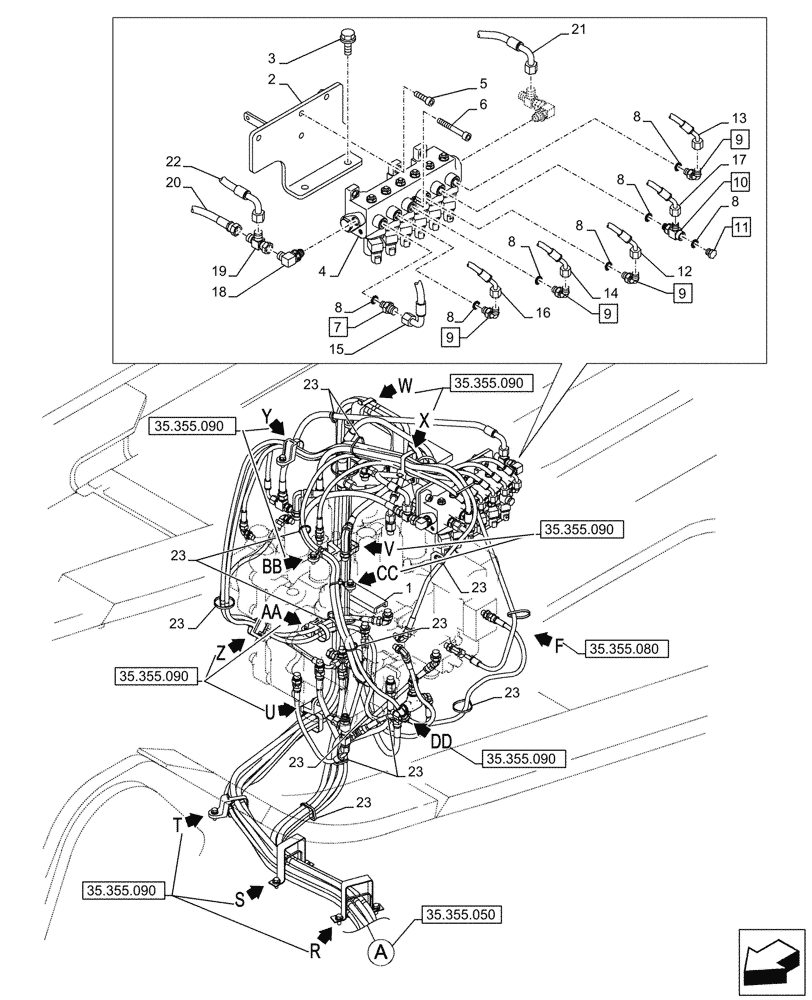

Запчасти Case CX750D RTC ME (35.355.060) - VAR - 461865, 461868 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KWR10600

CUSHION

1шт.

2

KWJ13780

BRACKET

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

4

KHJ28520

VALVE

1шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

3шт.

6

108R010Y075R

BOLT

M10 x 75mm

1шт.

7

152747A1

ADAPTER

ASSY, Incl 8 (Qty 1)

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

9

KHJ28580

ELBOW

ASSY, Incl 8 (Qty 1)

3шт.

10

KHJ11640

ORIFICE

ASSY, Incl 8 (Qty 1)

1шт.

11

159002A1

PLUG

ASSY, Incl 8 (Qty 1)

1шт.

12

KHJ14650

HYDRAULIC HOSE

6mm ID x 650mm, From Solenoid valve to Control valve

1шт.

13

KHJ37500

HOSE

6mm ID x 1150mm, From Solenoid valve to Control valve

1шт.

14

KHJ24910

HOSE ASSY.

6mm ID x 950mm, From Solenoid valve to Control valve

1шт.

15

KHJ32470

HYDRAULIC HOSE

9mm ID x 720mm, From Solenoid valve to Control valve

1шт.

16

KHJ33650

HYDRAULIC HOSE

6mm ID x 1700mm, From Solenoid valve to Control valve

1шт.

17

KHJ25000

HOSE ASSY.

6mm ID x 2200, From Solenoid Valve to Shuttle Valve

1шт.

18

KHJ29610

ELBOW

1шт.

19

KHJ2234

TEE

1шт.

20

KHJ2037

HOSE

1шт.

21

KHJ33790

HOSE

9mm ID x 800mm, From Solenoid valve to Control Valve

1шт.

22

KHJ11030

HOSE

9mm ID x 3900mm, From solenoid valve to Cushion Valve

1шт.

23

150496A1

MOUNTING CLIP

250mm

7шт.
