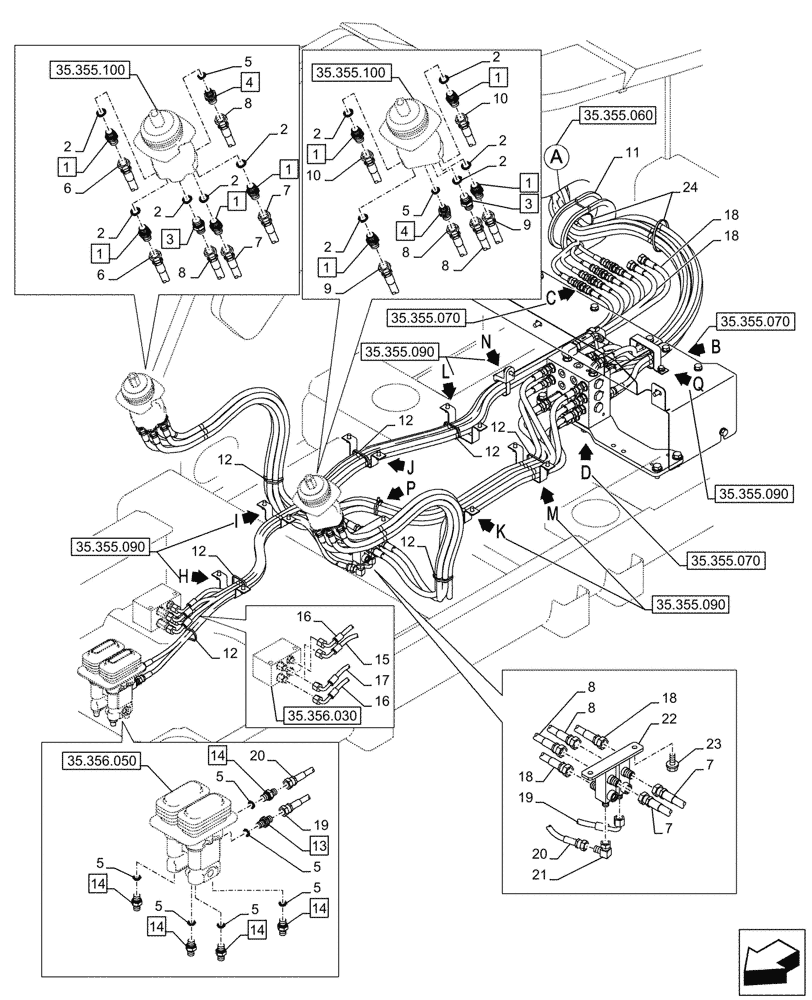

Запчасти Case CX750D RTC ME (35.355.050) - VAR - 461865, 461868 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ1402

ADAPTER

ASSY, Incl 2

8шт.

2

150031A1

O-RING,10mm ID x 24mm OD

10шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 2

1шт.

4

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, Incl 5

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

6

KHJ22430

HYDRAULIC HOSE

9mm ID x 2050mm, From Joystick Valve to Cushion Valve

2шт.

7

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

9mm ID x 2100mm, From Joystick Valve to Cushion Valve

2шт.

8

159213A1

HYDRAULIC HOSE

9mm ID x 1150mm, From Joystick Valve to Pilot Valve

2шт.

9

KTJ1633

HYDRAULIC HOSE

9mm ID x 1900mm, From Joystick Valve to Cushion Valve

1шт.

10

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm ID x 1950mm, From Joystick Valve to Cushion Valve

2шт.

11

KHJ35690

CUSHION

1шт.

12

150498A1

MOUNTING CLIP

300mm

7шт.

13

161841A1

HYD CONNECTOR

ASSY, Incl 5

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5

5шт.

15

KHJ2256

HYDRAULIC HOSE

6mm ID x 2050mm, From Pedal Manifold Valve

1шт.

16

KHJ2380

HOSE ASSY.

6mm ID x 2100mm, From Pedal Manifold Valve

1шт.

17

KHJ24040

HOSE

6mm ID x 2150mm, From Pedal Manifold Valve

1шт.

18

KHJ24350

HOSE

9mm ID x 1700mm, From Pilot Valve

1шт.

19

KHJ2092

HOSE

6mm ID 1100mm, From Foot control Valve to Pilot Valve

1шт.

20

KHJ2051

HOSE

6mm ID 1050mm, From Foot control Valve to Pilot Valve

1шт.

21

163814A1

ELBOW

1шт.

22

KRJ27381

HYDRAULIC MANIFOLD

1шт.

23

166350A1

BOLT

M8 x 20mm

2шт.

24

150496A1

MOUNTING CLIP

250mm

10шт.
