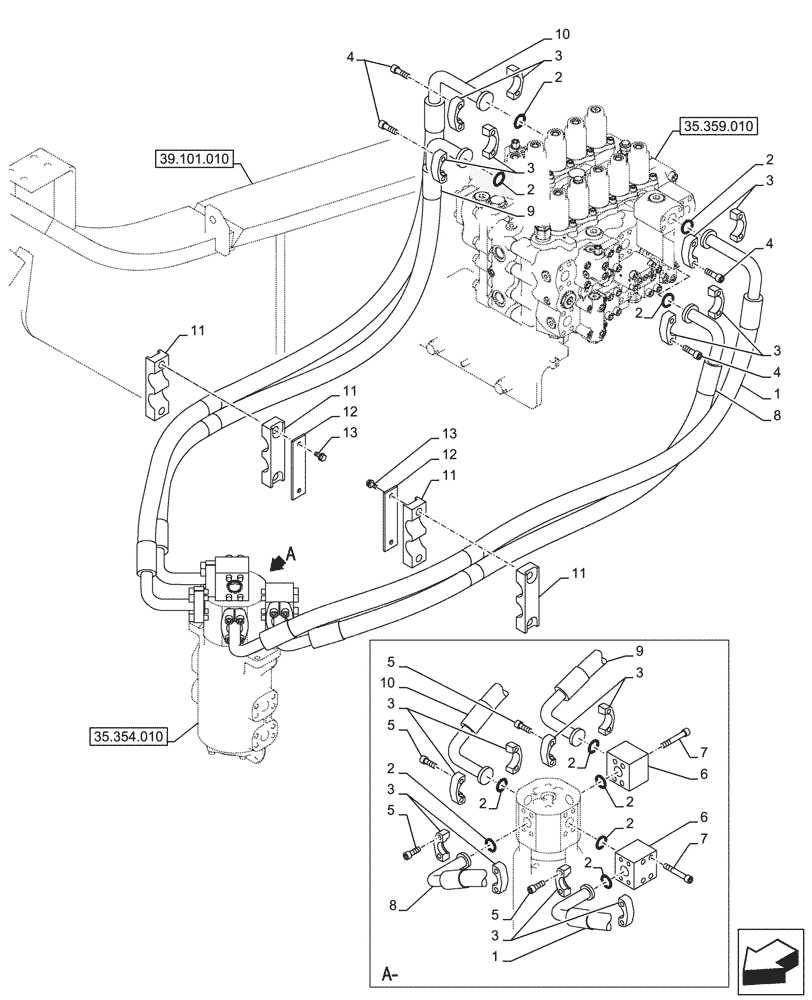

Запчасти Case CX750D RTC ME (35.354.020) - HYDRAULIC SWIVEL, LINE (35) - HYDRAULIC SYSTEMS

1

KWJ12230

HYDRAULIC HOSE

1шт.

2

153626A1

O-RING

10шт.

3

150124A1

FLANGE

16шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

5

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

16шт.

6

KUJ0285

MANIFOLD VALVE

2шт.

7

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

8шт.

8

KWJ12220

HYDRAULIC HOSE

1шт.

9

KWJ12210

HYDRAULIC HOSE

1шт.

10

KWJ12200

HYDRAULIC HOSE

1шт.

11

KWJ10010

CLAMP

4шт.

12

KWJ10180

PLATE

2шт.

13

166052A1

BOLT

M10 x 25mm

4шт.
