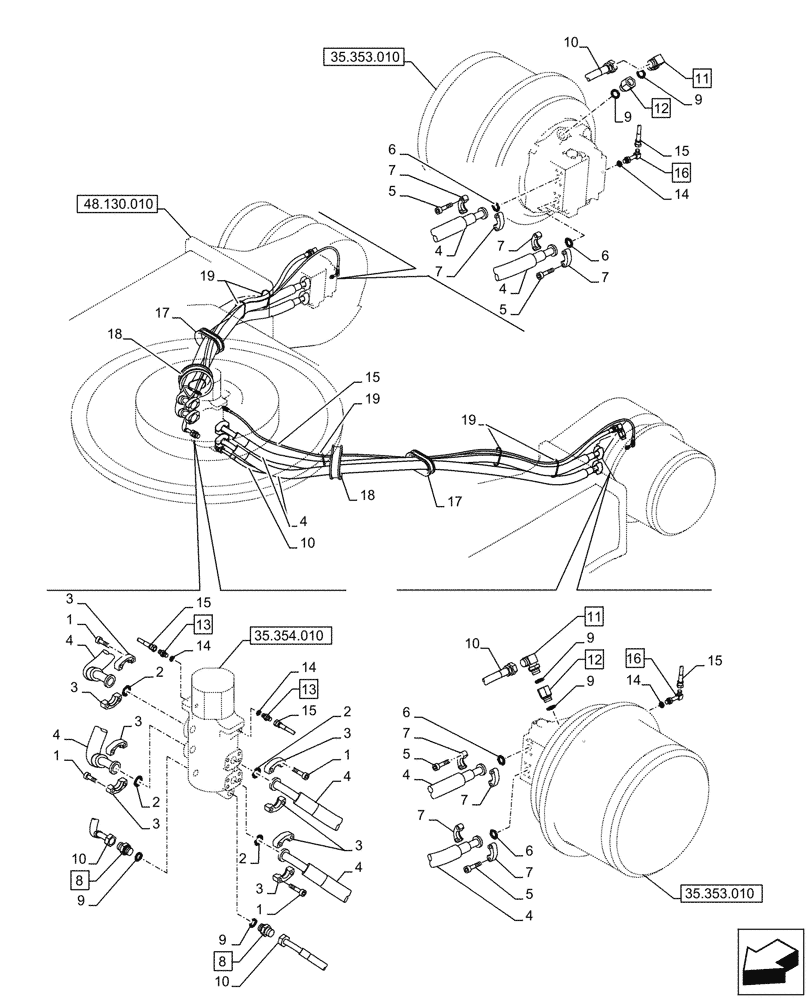

Запчасти Case CX750D RTC ME (35.353.050) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

2

153626A1

O-RING

4шт.

3

150124A1

FLANGE

8шт.

4

KWA10160

HYDRAULIC HOSE,31.80 mm ID x 2780.00 mm

4шт.

5

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

16шт.

6

162246A1

O-RING

4шт.

7

150561A1

FLANGE

8шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 9

2шт.

9

150542A1

O-RING

6шт.

10

KWA10610

HYDRAULIC HOSE

2шт.

11

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 9

2шт.

12

159198A1

ADAPTER

ASSY, Incl 9

2шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 14

2шт.

14

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

15

KHJ2313

HOSE

2шт.

16

KHJ1178

ELBOW

ASSY, Incl 14

2шт.

17

151657A1

GROMMET

2шт.

18

KWA0087

GROMMET

2шт.

19

150071A1

MOUNTING CLIP

6шт.
