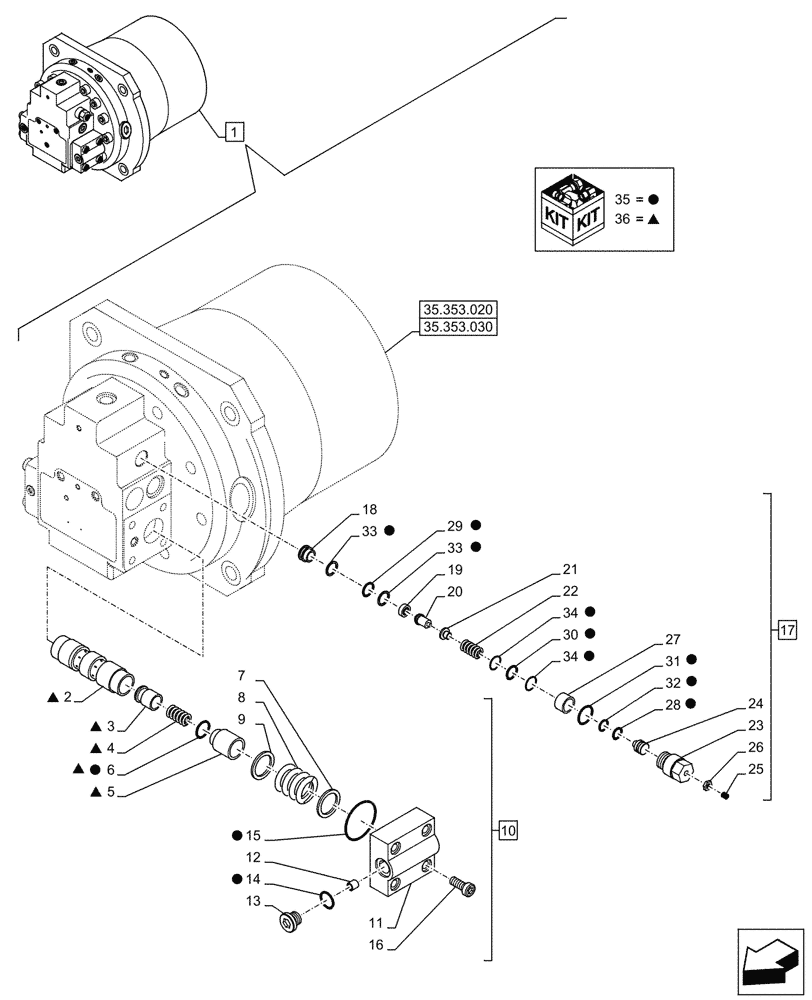

Запчасти Case CX750D RTC ME (35.353.040) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KWA0018

HYDRAULIC MOTOR

ASSY, Incl 2 - 36

1шт.

See also Figure 35.353.010, 35.353.020, 35.353.030

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Incl 1

1шт.

3

NSS

NOT SOLD SEPARAT

Valve Check, Incl 1

2шт.

4

NSS

NOT SOLD SEPARAT

Spring Compression, Incl 1

2шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl 1

2шт.

6

154475A1

O-RING

2шт.

7

156109A1

SPRING SEAT

2шт.

8

LG00082

SPRING

2шт.

9

LR00736

BUSHING

2шт.

10

LR012970

VALVE SECTION

ASSY, Incl 11 - 16

2шт.

11

NSS

NOT SOLD SEPARAT

Cap, Incl 10

2шт.

12

NSS

NOT SOLD SEPARAT

Orifice, Incl 10

2шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl 10

2шт.

14

154455A1

O-RING

2шт.

15

154569A1

O-RING

2шт.

16

863-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

8шт.

17

LJ013550

VALVE SECTION

ASSY, Incl 18 - 34

2шт.

18

NSS

NOT SOLD SEPARAT

Seat, Incl 17

2шт.

19

NSS

NOT SOLD SEPARAT

Housing, Incl 17

2шт.

20

NSS

NOT SOLD SEPARAT

Poppet, Incl 17

2шт.

21

NSS

NOT SOLD SEPARAT

Seat Spring, Incl 17

2шт.

22

NSS

NOT SOLD SEPARAT

Spring Spl, Incl 17

2шт.

23

NSS

NOT SOLD SEPARAT

Plug, Incl 17

2шт.

24

NSS

NOT SOLD SEPARAT

Guide, Incl 17

2шт.

25

NSS

NOT SOLD SEPARAT

Screw, Incl 17

2шт.

26

829-1012

NUT,M12, Cl 10

2шт.

27

NSS

NOT SOLD SEPARAT

Piston, Incl 17

2шт.

28

154471A1

O-RING

2шт.

29

154487A1

O-RING

2шт.

30

154495A1

O-RING

2шт.

31

155225A1

O-RING

2шт.

32

153958A1

BACK-UP RING

2шт.

33

153970A1

BACK-UP RING

4шт.

34

153977A1

BACK-UP RING

4шт.

35

LZ00458

SEAL KIT

1шт.

See also Figure 35.353.020, 35.353.030

1шт.

36

LZ00459

SEAL KIT

1шт.

See also Figure 35.353.020

1шт.
