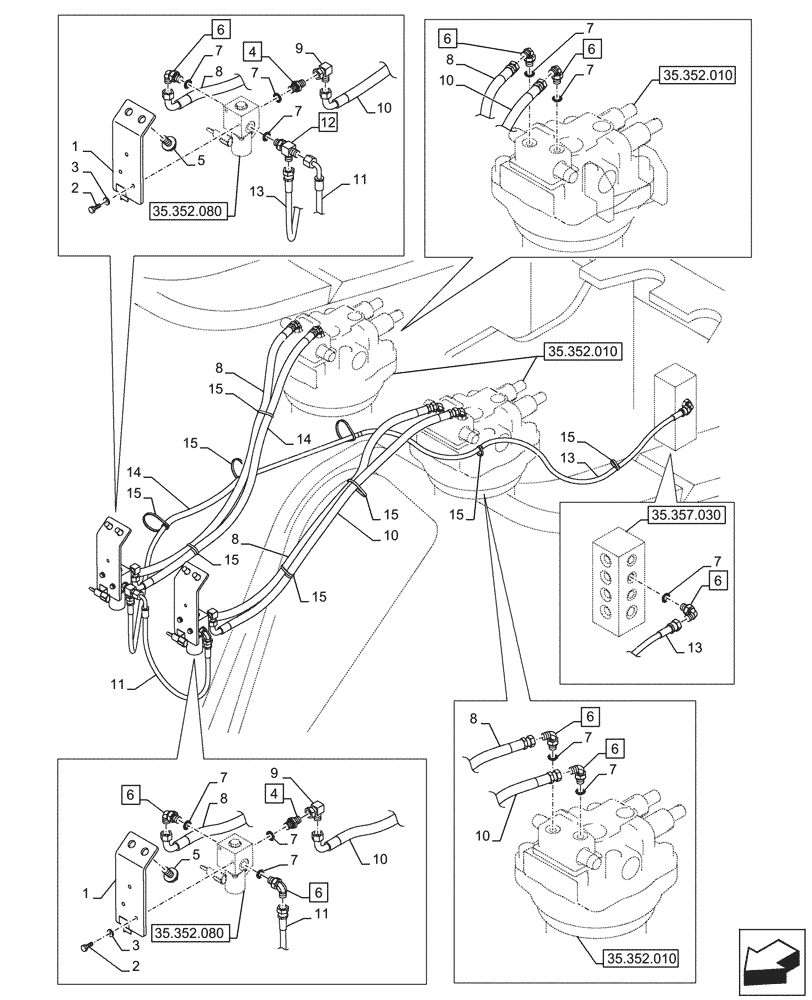

Запчасти Case CX750D RTC ME (35.352.070) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS

1

KWJ15190

BRACKET

2шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

3

183-106VR

SPRING WASHER

4шт.

4

162366A1

ADAPTER

ASSY, Incl 7

2шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

6

KHJ28580

ELBOW

ASSY, Incl 7

8шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

11шт.

8

KHV13700

HYDRAULIC HOSE

2шт.

9

163814A1

ELBOW

2шт.

10

KHJ37750

HYDRAULIC HOSE

2шт.

11

KHJ2309

HOSE

1шт.

12

159497A1

TEE

ASSY, Incl 7

1шт.

13

KHJ2070

HOSE

1шт.

14

152660A1

PLASTIC-RUBBER TUBE

1шт.

15

150496A1

MOUNTING CLIP

9шт.
