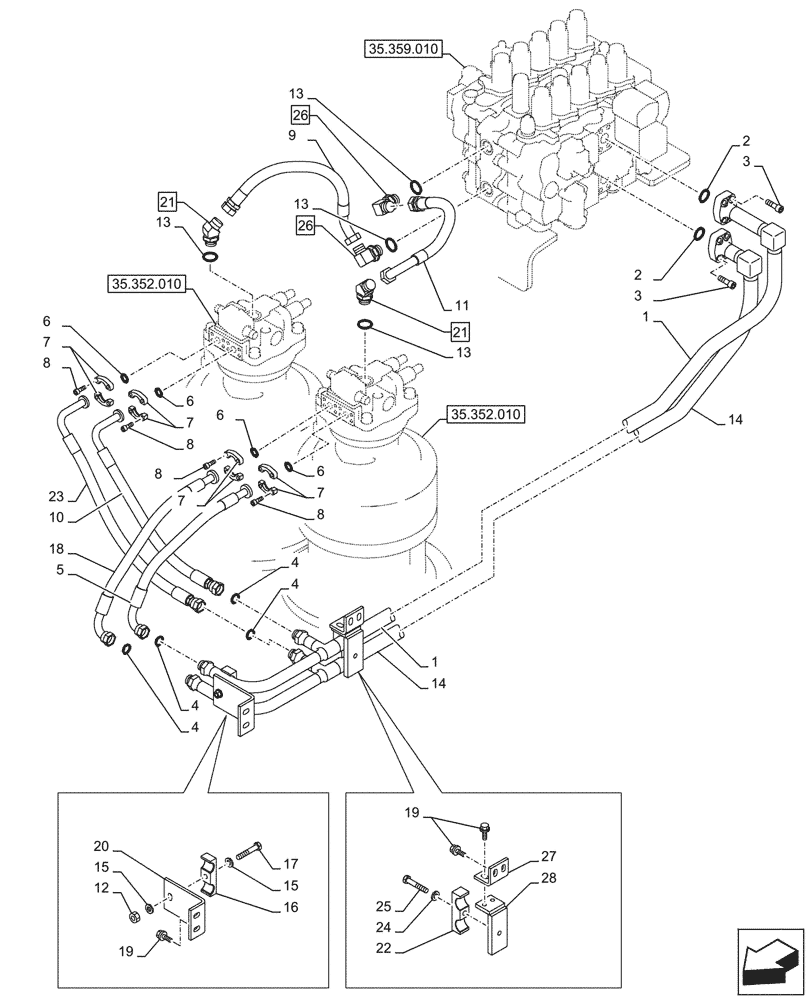

Запчасти Case CX750D RTC ME (35.352.060) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

KWJ12160

PIPE

From Main Control Valve to Hydraulic Swivel

1шт.

2

153626A1

O-RING

2шт.

3

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

8шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

5

KWJ12140

HYDRAULIC HOSE

From Main Control Valve to Hydraulic Swivel

1шт.

6

161097A1

O-RING

4шт.

7

153458A1

FLANGE

8шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

9

KWJ14790

HYDRAULIC HOSE

From Main Control Valve to Hydraulic Swivel

1шт.

10

KWJ12130

HYDRAULIC HOSE

From Main Control Valve to Hydraulic Swivel

1шт.

11

KBJ19450

HYDRAULIC HOSE

25mm ID x 550mm From Main Control Valve to Hydraulic Swivel

1шт.

12

162R012VR

NUT

M12

1шт.

13

152211A1

O-RING

4шт.

14

KWJ12170

PIPE

From Main Control Valve to Hydraulic Swivel

1шт.

15

150811A1

WASHER

2шт.

16

KBV33990

CLAMP

1шт.

17

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

1шт.

18

KWJ12150

HYDRAULIC HOSE

From Main Control Valve to Hydraulic Swivel

1шт.

19

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

20

KWJ12180

BRACKET

1шт.

21

157587A1

ELBOW

ASSY, G1" x G1", Incl 13 (Qty 1)

2шт.

22

153188A1

COLLAR

1шт.

23

KWJ10190

HOSE ASSY.,19.00 mm ID x 770.00 mm

From Main Control Valve to Hydraulic Swivel

1шт.

24

150418A1

WASHER

1шт.

25

167070A1

SCREW,M14 x 80mm

1шт.

26

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 13 (Qty 1)

2шт.

27

KWJ10240

SUPPORT

1шт.

28

KWJ10230

SUPPORT

1шт.
