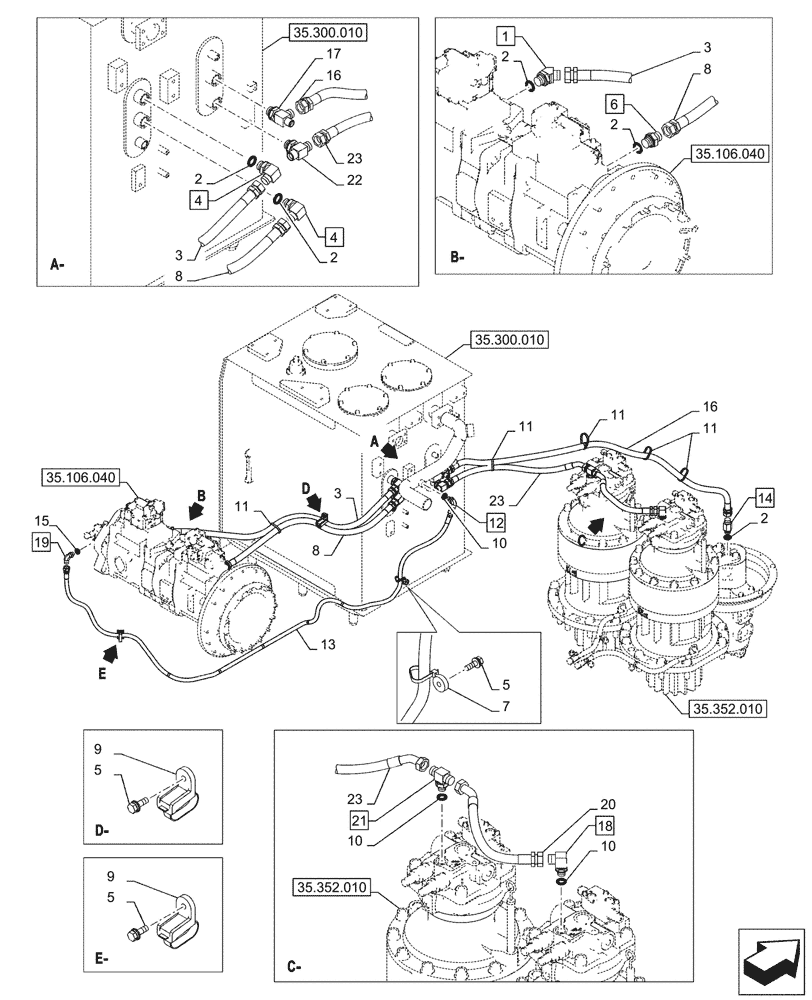

Запчасти Case CX750D RTC ME (35.352.050) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

157586A1

ELBOW

ASSY, G3/4" x G3/4", Incl 2 (Qty 1)

1шт.

2

150542A1

O-RING

4шт.

3

KWJ13130

HYDRAULIC HOSE

From Oil Tank to Hydraulic Pump

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 2 (Qty 1)

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 2 (Qty 1)

1шт.

7

KHR2584

CLAMP

1шт.

8

KWJ13280

HYDRAULIC HOSE

From Oil Tank to Hydraulic Pump

1шт.

9

KHR2581

CLAMP

M8

2шт.

10

150539A1

O-RING

3шт.

11

150071A1

MOUNTING CLIP

380mm

5шт.

12

KHJ28600

ELBOW

ASSY, G1/2" x G1/2", Incl 10 (Qty 1)

1шт.

13

KHJ37350

HYDRAULIC HOSE

From Oil Tank to Hydraulic Pump

1шт.

14

KAJ2917

ADAPTER

ASSY, Incl 2 (Qty 1)

1шт.

15

150031A1

O-RING,10mm ID x 24mm OD

1шт.

16

KWJ14870

HYDRAULIC HOSE

From Oil Tank to Center Joint

1шт.

17

KHJ35440

TEE

1шт.

18

168609A1

ELBOW

ASSY, G1/2" x G3/4", Incl 10 (Qty 1)

1шт.

19

KHJ28720

ELBOW

ASSY, G3/8" x G1/2", Incl 15

1шт.

20

KNJ15860

HYDRAULIC HOSE,500.00 mm

19mm ID x 500mm

1шт.

21

163114A1

TEE

ASSY, G1/2" x G3/4" x G3/4", Incl 10 (Qty 1)

1шт.

22

KHJ35430

TEE

1шт.

23

KWJ13150

HYDRAULIC HOSE

From Motor Swivel to Oil Tank

1шт.
