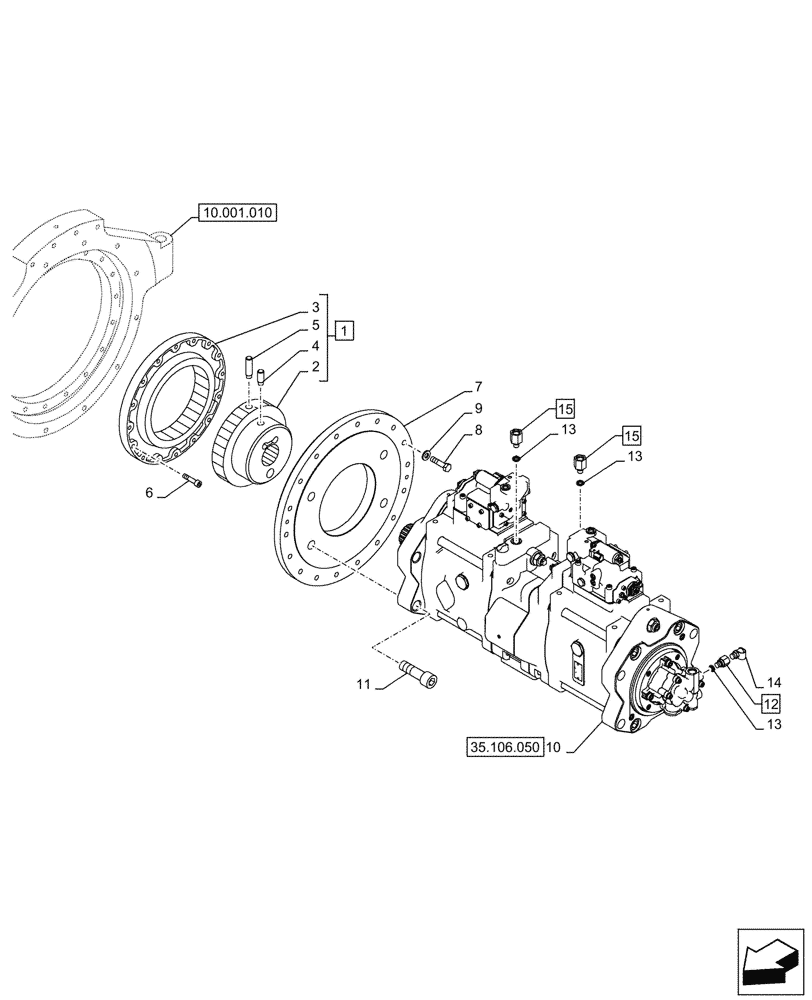

Запчасти Case CX750D RTC ME (35.106.040) - VARIABLE DELIVERY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

KWJ0021

COUPLING

ASSY, Incl 2 - 5

1шт.

2

KWJ0061

HUB

1шт.

3

KWJ0062

FLANGE

1шт.

4

KWJ0063

HEX SOC SCREW

1шт.

5

KWJ11100

HEX SOC SCREW

1шт.

6

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

16шт.

7

KWJ10520

PLATE

1шт.

8

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

16шт.

9

150811A1

WASHER

16шт.

10

KWJ12041

HYDRAULIC PUMP

ASSY

1шт.

11

108R024Y080R

BOLT

4шт.

12

KHJ2620

BUSHING

ASSY, Incl 13 (Qty 1)

1шт.

13

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

150290A1

PLUG

1шт.

15

KHJ18180

STUD

ASSY, G1/4" x M18, Incl 13 (Qty 1)

2шт.
