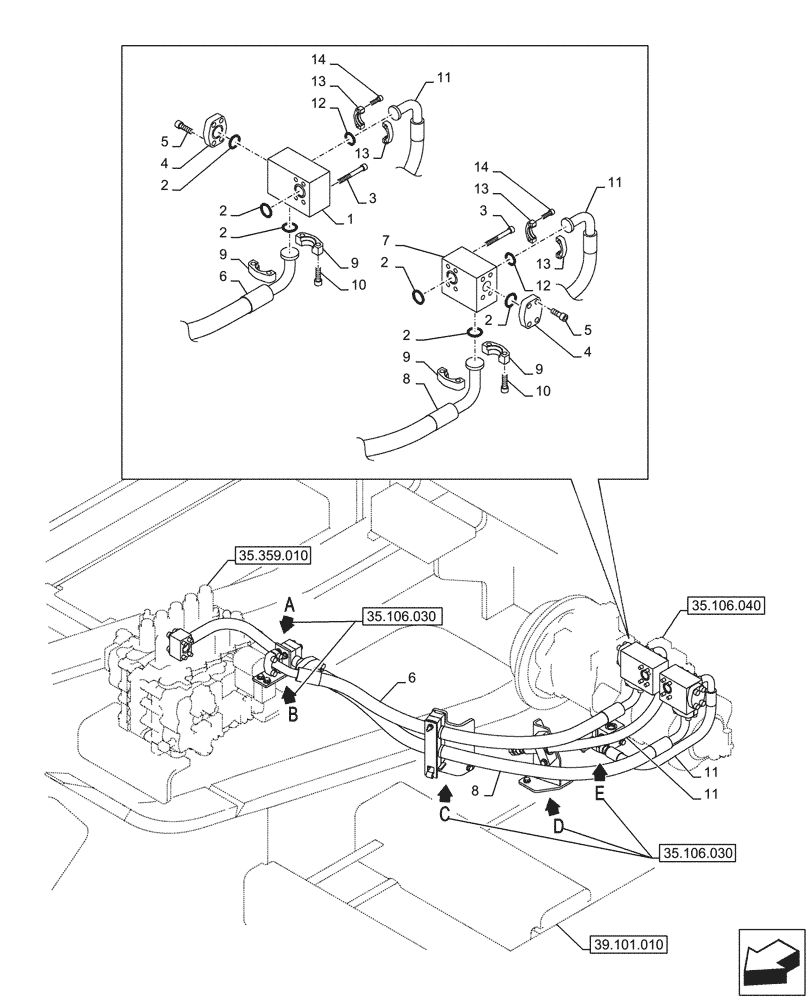

Запчасти Case CX750D RTC ME (35.106.020) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KWJ12670

MANIFOLD

1шт.

2

153626A1

O-RING

6шт.

3

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

8шт.

4

KUP0009

FLANGE

2шт.

5

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

8шт.

6

KWJ15440

HYDRAULIC HOSE

1шт.

7

KWJ12660

MANIFOLD

1шт.

8

KWJ15370

HYDRAULIC HOSE

1шт.

9

150124A1

FLANGE

4шт.

10

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

8шт.

11

KWJ11700

HOSE ASSY.

2шт.

12

162246A1

O-RING

2шт.

13

153459A1

FLANGE

4шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.
