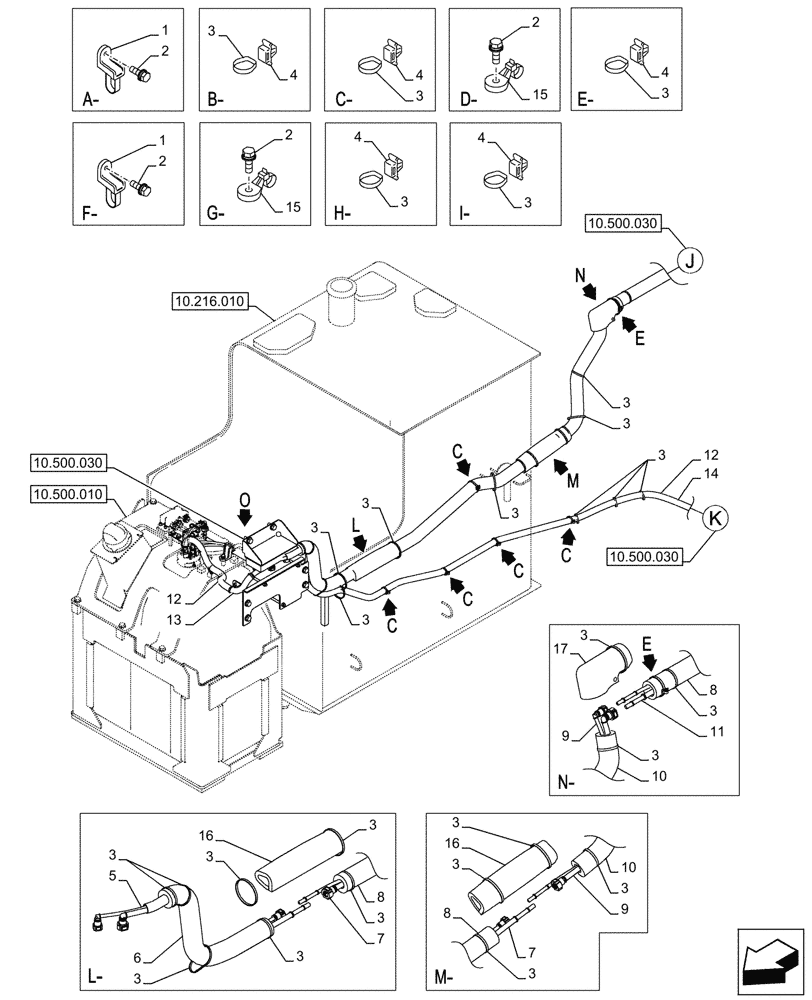

Запчасти Case CX750D RTC ME (10.500.020) - DEF/ADBLUE™ LINES (10) - ENGINE

1

KHR2581

CLAMP

M8

9шт.

2

KHJ1215

BOLT,Spcl

M8 x 25mm

13шт.

3

150496A1

MOUNTING CLIP

250mm

1шт.

4

KHR10220

MOUNTING CLIP

1шт.

5

KWH10900

PIPE

From Tank Urea to Muffler

1шт.

6

KHH18050

INSULATION

1шт.

7

KWH11340

PIPE

From Tank Urea to Muffler

1шт.

8

KHH18860

INSULATION

2шт.

9

KWH10910

PIPE

From Tank Urea to Muffler

1шт.

10

KHH18040

INSULATION

1шт.

11

KWH10920

PIPE

From Tank Urea to Muffler

1шт.

12

KHH19310

HOSE

11mm ID x 4500mm From Tank Urea to injector Valve

1шт.

13

KHR21050

PLASTIC-RUBBER TUBE

19mm ID x 600mm

1шт.

14

KHR3357

PLASTIC-RUBBER TUBE

19mm ID x 3600mm

1шт.

15

KHR2584

CLAMP

4шт.

16

KHH17040

INSULATION

2шт.

17

KHH19480

INSULATION

1шт.
