(90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH

Запчасти Case CX750D RTC ME (90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

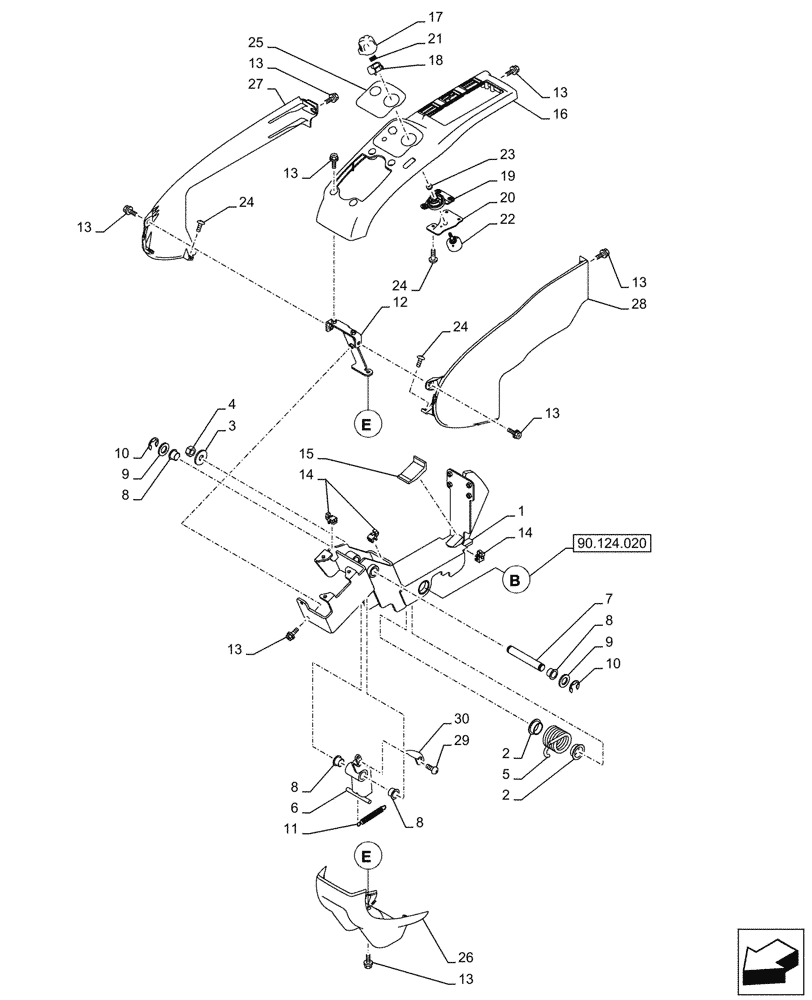

Схема запчастей Case CX750D RTC ME - (90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.020
25
22
8
8
30
20
8
6
2
1
8
13
13
13
10
18
26
14
13
27
23
16
7
17
13
15
13
14
28
11
9
29
10
24
2
12
13
21
3
24
13
9
19
5
4
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN39731

FRAME

1шт.

2

KHN2261

BUSHING

2шт.

3

151161A1

WASHER

M12

1шт.

4

162R012VR

NUT

M12

1шт.

5

KHN24001

SPRING

1шт.

6

KHN24041

BELLCRANK

1шт.

7

KHN24060

PIN

1шт.

8

KHN2249

BUSHING

4шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

KHN2270

LOCKING RING

2шт.

11

KHN26200

SPRING

1шт.

12

KHN24100

BRACKET, SUPPORTING

1шт.

13

KHN2132

BOLT,Hex Flg Hd, M6 x 16

mm

11шт.

14

KHN17050

CLIP

3шт.

15

KHN43110

SEAL

1шт.

16

KHN42490

COVER

1шт.

17

KHN15100

BUTTON

1шт.

18

KHN15110

BUTTON

1шт.

19

KHN15120

ELEC SUPPORT PLATE

1шт.

20

KHN15130

BRACKET

1шт.

21

KHN15140

SPRING

1шт.

22

KHR2751

SWITCH

1шт.

23

KHR2741

PACKING

1шт.

24

KHR2737

SELF-TAP SCREW

7шт.

25

KHN14071

DECAL

1шт.

26

KHN23160

COVER

1шт.

27

KHN23210

COVER

1шт.

28

KHN23200

COVER

1шт.

29

KHN23760

SCREW

4шт.

30

KHN12360

LEVER

1шт.
