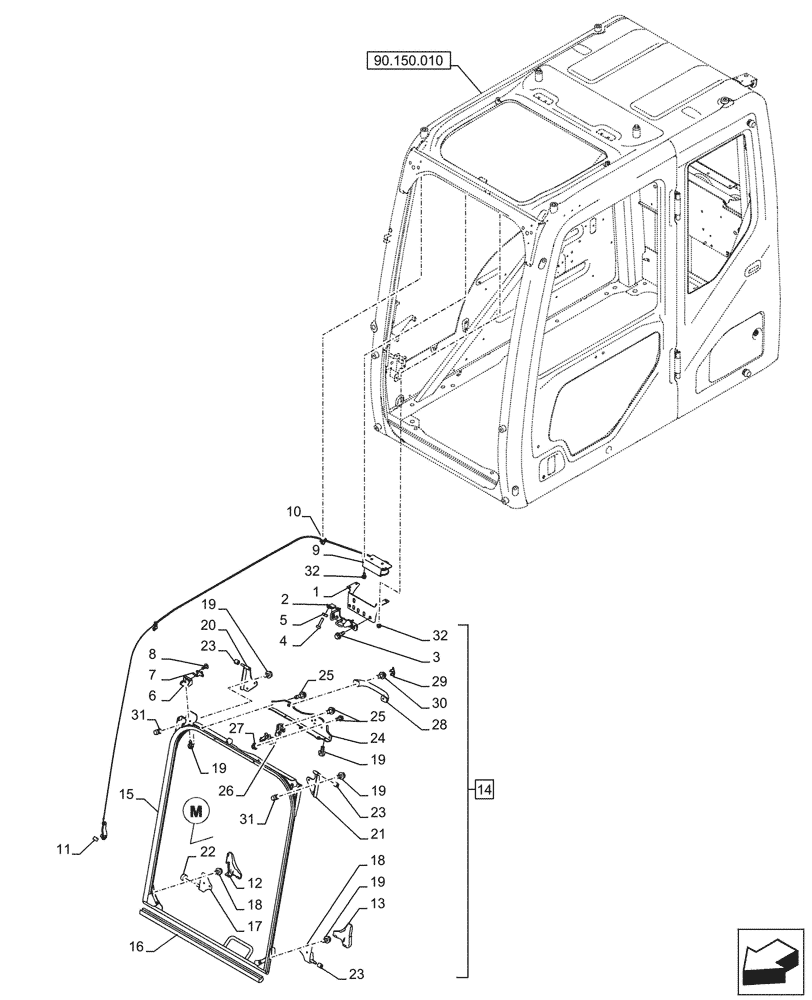

Запчасти Case CX750D RTC ME (90.156.020) - WINDSHIELD, LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN25300

BRACKET, SUPPORTING

1шт.

2

KHN25380

STRIKER

1шт.

3

KHN18930

BOLT

M10 x 1.25 x 25mm

2шт.

4

KHN15990

STOP LOCK

1шт.

5

KHN19030

NUT

1шт.

6

KHN25660

BRACKET, SUPPORTING

1шт.

7

KHN26000

SWITCH

1шт.

8

KHN25960

SCREW

2шт.

9

KHN25700

SPRING

1шт.

10

161381A1

COLLAR

1шт.

11

KHN15980

STOP LOCK

2шт.

12

KHN16220

COVER

1шт.

13

KHN16230

COVER

1шт.

14

KHN25210

WINDOW ASSY

ASSY, Incl 15 - 31

1шт.

15

KHN25220

WINDOW FRAME

1шт.

16

KHN25750

SEAL

1шт.

17

KHN15670

STAY

1шт.

18

KHN25770

STAY

1шт.

19

KHN15690

BOLT

M6 x 1.0 x 12mm

13шт.

20

KHN25680

STAY

1шт.

21

KHN25690

STAY

1шт.

22

KHN15800

ROLLER

1шт.

23

KHN25600

ROLLER

3шт.

24

KHN25280

COVER

1шт.

25

KHN28230

BOLT

M6 x 1.0 x 12mm

5шт.

26

KHN25410

LOCK

1шт.

27

KHN25980

NUT

2шт.

28

KHN25870

HANDLE

1шт.

29

KHN25880

CAP

2шт.

30

KHN15770

BOLT,Flng, M6 x 20mm

2шт.

31

KHN15830

STOP LOCK

2шт.

32

KHN18870

BOLT

M6 x 1.0 x 12mm

13шт.
