(90.150.040) - VAR - 461024 - CAB GUARD, FRONT, STONEGUARD, FIXED

Запчасти Case CX750D RTC ME (90.150.040) - VAR - 461024 - CAB GUARD, FRONT, STONEGUARD, FIXED (90) - PLATFORM, CAB, BODYWORK AND DECALS

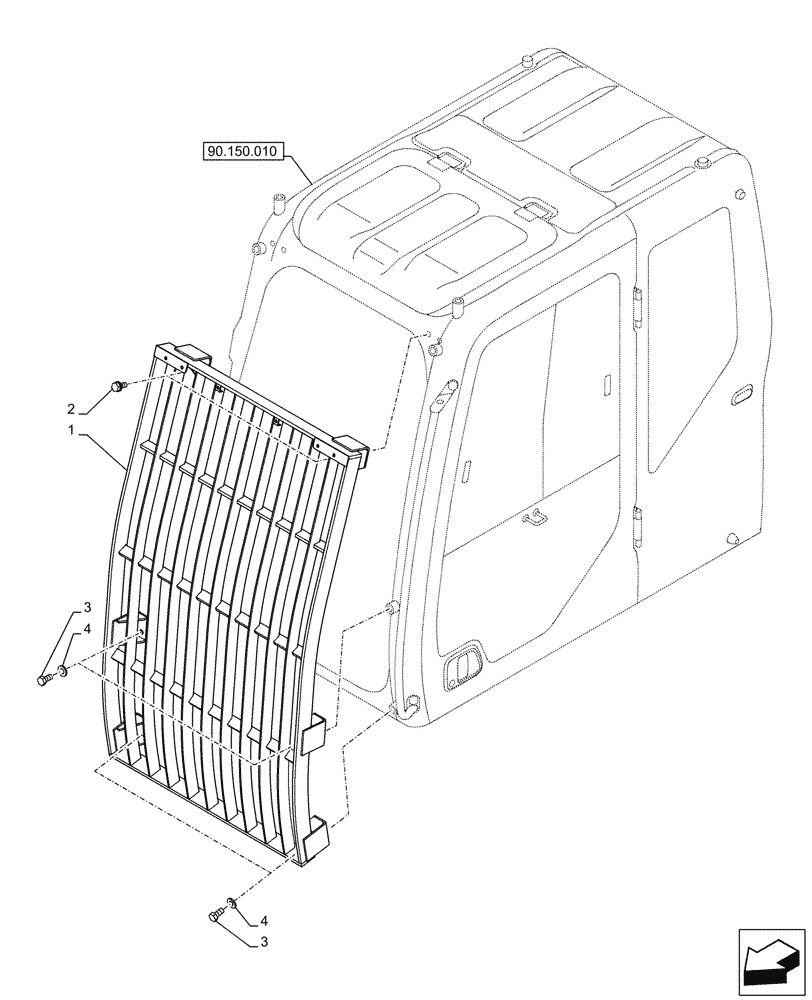

Схема запчастей Case CX750D RTC ME - (90.150.040) - VAR - 461024 - CAB GUARD, FRONT, STONEGUARD, FIXED (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.010
1
3
4
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN28830

GUARD

1шт.

2

166052A1

BOLT

M10 x 25mm

4шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

4

150811A1

WASHER

4шт.
