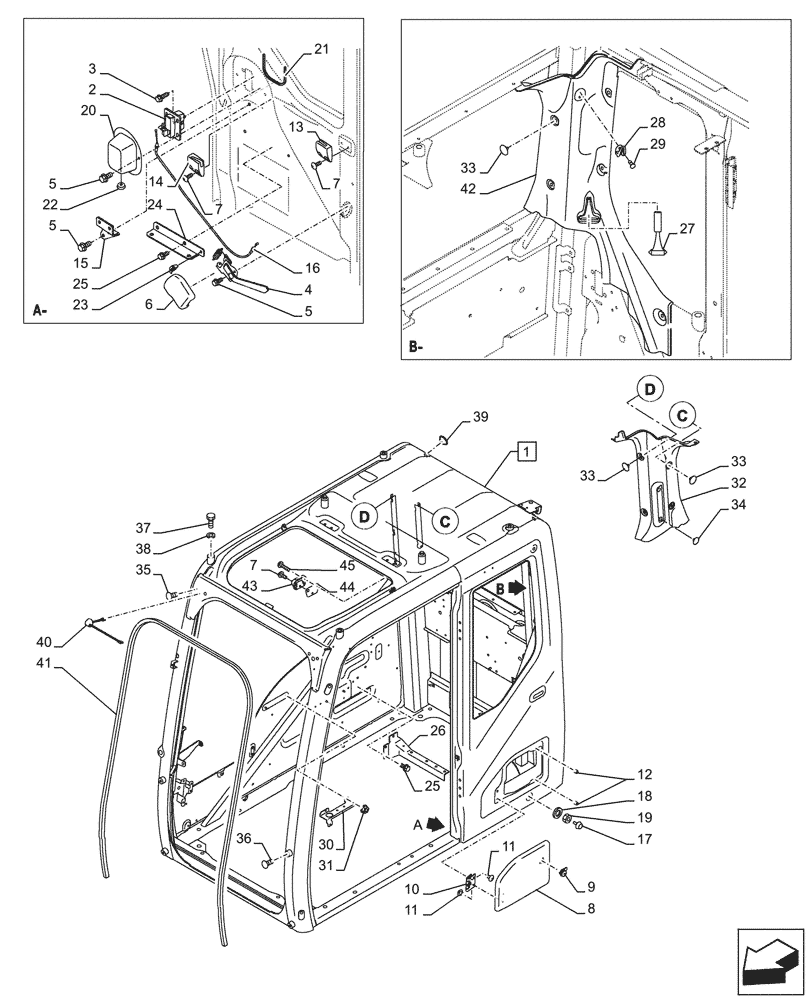

Запчасти Case CX750D RTC ME (90.150.010) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN45324

CAB

ASSY, Incl 2 - 45

1шт.

See also Figure 90.118.010, 55.510.090, 90.151.020, 55.518.010, 90.156.020, 90.156.010, 55.991.030, 90.154.010, 90.160.060, 55.512.060

1шт.

2

161384A1

RH DOOR LOCK

1шт.

3

KHN18920

BOLT,Spcl, Hex

M8 x 1.25 x 25mm

4шт.

4

KHN25630

LEVER

1шт.

5

KHN18880

BOLT

M6 x 1.0 x 16mm

12шт.

6

KHN25730

COVER

1шт.

7

KHN2682

SCREW,Spcl

7шт.

8

KHN37460

COVER

1шт.

9

KHN26010

LOCK

1шт.

10

KHN25390

HINGE

1шт.

11

KHN18800

SCREW,Spcl, M6 x 12mm

4шт.

12

KHN25840

STOP

2шт.

13

KHN14230

SUPPORT

1шт.

14

KHN14240

SUPPORT

1шт.

15

KHN25330

BRACKET, SUPPORTING

1шт.

16

KHN14320

BOWDEN CONTROL

1шт.

17

161356A1

STOP

1шт.

18

KHN25990

WASHER

1шт.

19

161357A1

NUT

1шт.

20

KHN2723

CAP ASSY.

1шт.

21

161385A1

SEAL

1шт.

22

161383A1

GROMMET

1шт.

23

KHN25940

COLLAR

4шт.

24

KHN25350

BRACKET, SUPPORTING

1шт.

25

KHN18860

BOLT,Spcl, Hex

5шт.

26

KHN25340

BRACKET, SUPPORTING

1шт.

27

KHN25950

HAMMER

1шт.

28

KHN14250

HOOK

1шт.

29

KHN14260

SCREW

2шт.

30

KHN25370

BRACKET, SUPPORTING

1шт.

31

KHN25980

NUT

2шт.

32

KHN25490

TRIM

1шт.

33

KHN25900

CLIP

9шт.

34

KHN25910

CLIP

2шт.

35

KHN25930

BOLT

4шт.

36

KHN22940

PLASTIC PLUG

M12 x 1.75 x 19mm

4шт.

37

KHN16280

BOLT,Spcl

M16 x 2 x 25mm

4шт.

38

KHN16290

WASHER

4шт.

39

KHN14310

GROMMET

1шт.

40

KHN17130

HARNESS

2шт.

41

KHN25740

SEAL, GLASS

1шт.

42

KHN25510

TRIM

1шт.

43

KHN14220

SUPPORT

1шт.

44

KHN2722

LEDGER PLATE

1шт.

45

KHN2681

SCREW

2шт.
